Notes
Audio Amplifier: Notes
Fig 1: Identifying Audio Amplifier Components (1 Of 2)
Courtesy of FORD MOTOR CO.

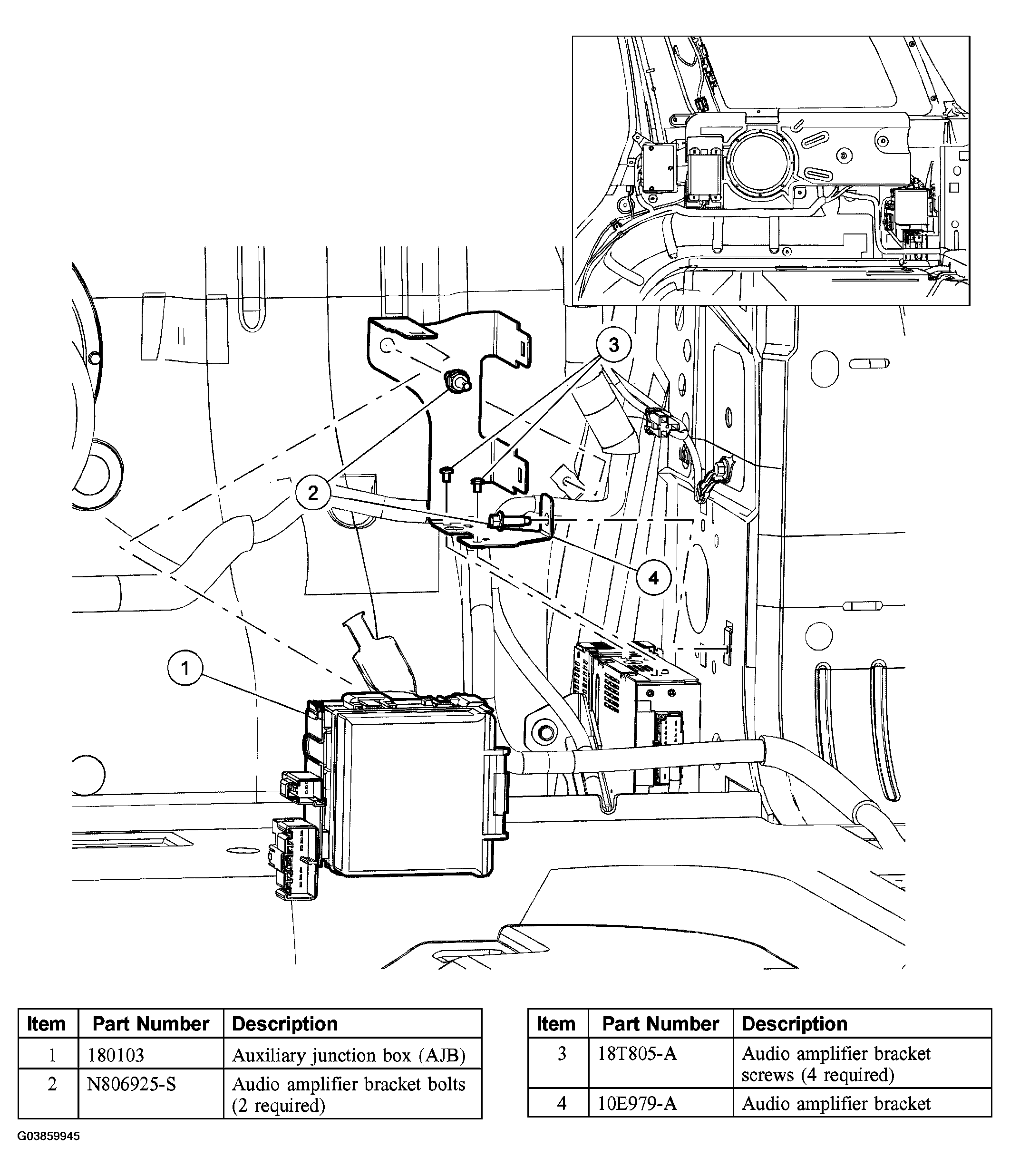

Fig 2: Identifying Audio Amplifier Components (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
