Brake Pedal Position (BPP) Switch

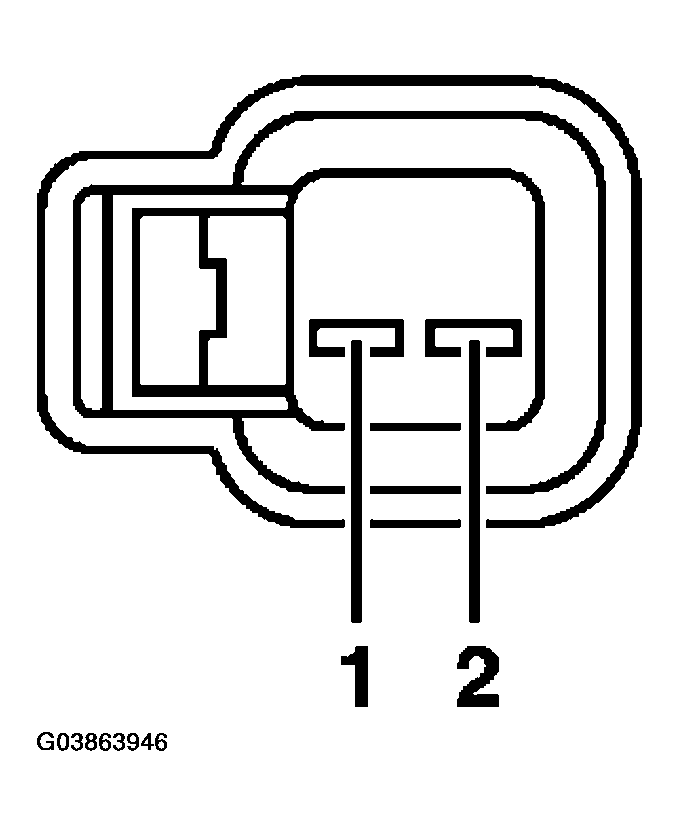

Fig 1: Identifying Brake Pedal Position (BPP) Switch Pinouts
G03863946Courtesy of FORD MOTOR CO.
BRAKE PEDAL POSITION (BPP) SWITCH REFERENCE CHART

Pin Number Circuit Description
1 Brake pedal position switch output
2 Voltage supplied at all times
