Vehicle Security Module C3008d

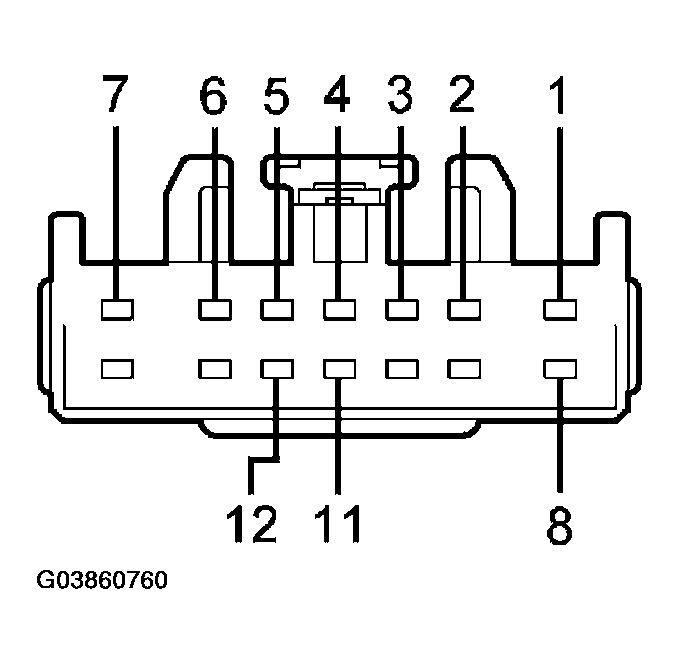

Fig 1: Identifying Vehicle Security Module C3008d Connector Terminals
G03860760Courtesy of FORD MOTOR CO.
VEHICLE SECURITY MODULE CONNECTOR TERMINALS REFERENCE

Pin Number(s) Circuit Designation/Description Normal Condition/Measurement
1 117 (PK/BK) door lock actuator lock output Less than 5 ohms between the vehicle security module and all door lock actuators. Greater than 10,000 ohms between the vehicle security module and ground.
2 120 (PK/LG) door lock control switch unlock input 0 voltage, less than 5 ohms between the door lock control switch and the vehicle security module. Less than 5 ohms between the vehicle security module and ground when a door lock control switch is placed in the unlock position.
3 119 (PK/YE) door lock control switch lock input voltage, less than 5 ohms between the door lock control switch and the vehicle security module. Less than 5 ohms between the vehicle security module and ground when a door lock control switch is placed in the lock position.
4 765 (YE/BK) LF door ajar switch input 0 voltage, less than 5 ohms between the LF door ajar switch and the vehicle security module. Greater than 10,000 ohms between the vehicle security module and ground when the LF door is closed.
5 761 (GY/RD) RF door ajar switch input 0 voltage, less than 5 ohms between the RF door ajar switch and the vehicle security module. Greater than 10,000 ohms between the vehicle security module and ground when the RF door is closed.
6 760 (PK/LB) RR door ajar switch input 0 voltage, less than 5 ohms between the RR door ajar switch and the vehicle security module. Greater than 10,000 ohms between the vehicle security module and ground when the RR door is closed.
7 163 (RD/OG) LF door lock actuator unlock output Less than 5 ohms between the vehicle security module and LF door lock actuator. Greater than 10,000 ohms between the vehicle security module and ground.
8 118 (PK/OG) RF, LR and RR door lock actuator unlock output Less than 5 ohms between the vehicle security module and RF, LR and RR door lock actuators. Greater than 10,000 ohms between the vehicle security module and ground.
11 759 (LG/YE) LR door ajar switch input 0 voltage, less than 5 ohms between the LR door ajar switch and the vehicle security module. Greater than 10,000 ohms between the vehicle security module and ground when the LR door is closed.
12 700 (WH/VT) liftgate window glass ajar switch input 0 voltage, less than 5 ohms between the liftgate window glass ajar switch and the vehicle security module. Greater than 10,000 ohms between the vehicle security module and ground when the liftgate window glass is closed.
