Transmission Insulator And Retainer: Removal

  1. Remove the transmission support crossmember. For additional information, refer to TRANSMISSION SUPPORT CROSSMEMBER .
  2. Remove the transmission support insulator.

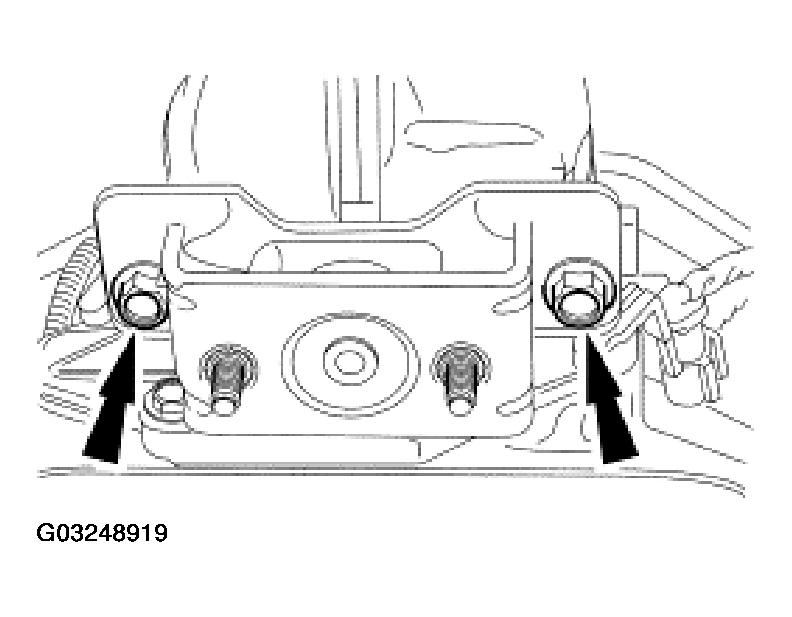

    Fig 1: Removing Transmission Support Insulator
    G03248919Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.

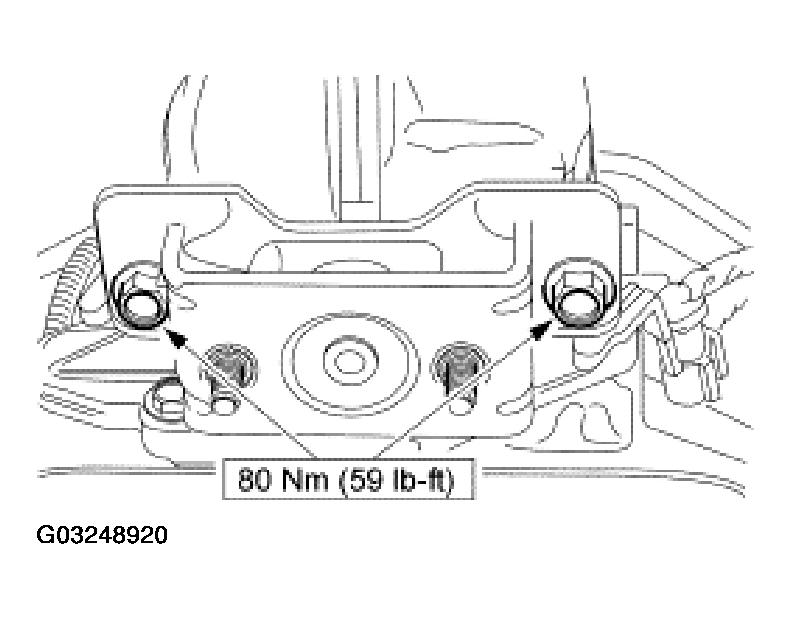

    Fig 2: Installing Transmission Support Insulator
    G03248920Courtesy of FORD MOTOR CO.
