Removal And Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to IDENTIFICATION CODES .
  2. Disconnect the output shaft speed (OSS) sensor electrical connector.

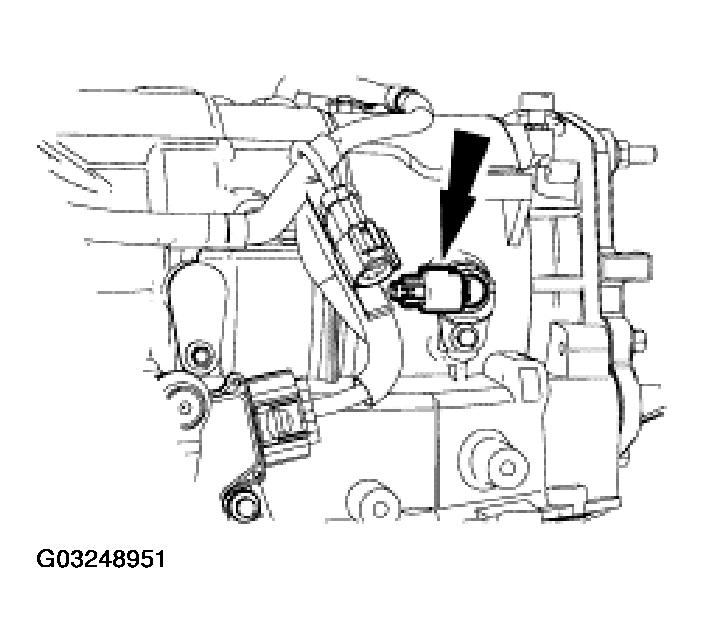

    Fig 1: Disconnecting Output Shaft Speed Sensor Electrical Connector
    G03248951Courtesy of FORD MOTOR CO.
  3. Remove the OSS sensor bolt and the sensor
    1. Remove the OSS sensor bolt.
    2. Remove the OSS sensor.

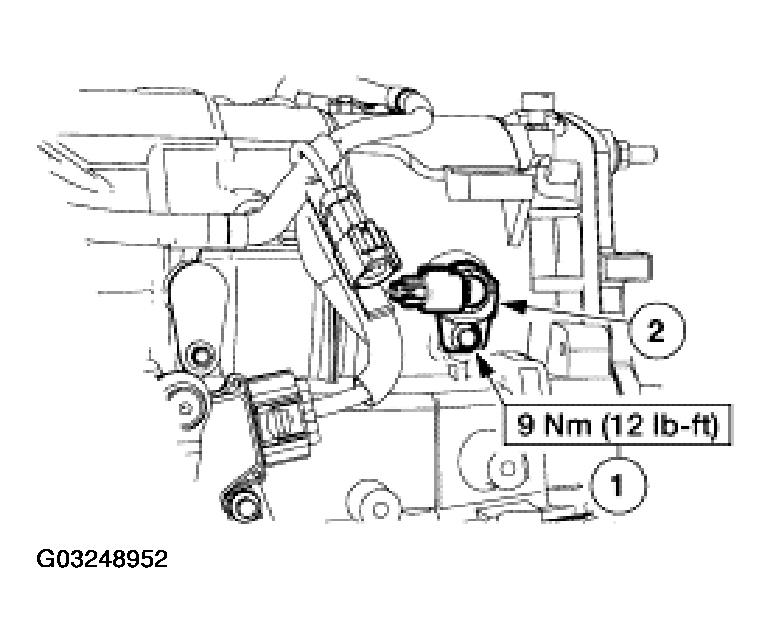

      Fig 2: Removing OSS Sensor
      G03248952Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
