Extension Housing Gasket: Installation

  1. Install a new extension housing gasket.

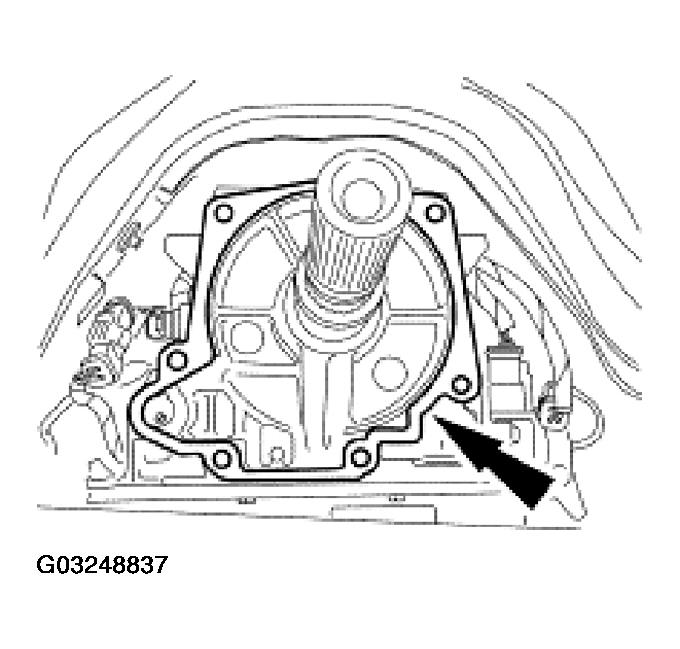

    Fig 1: Installing New Extension Housing Gasket
    G03248837Courtesy of FORD MOTOR CO.

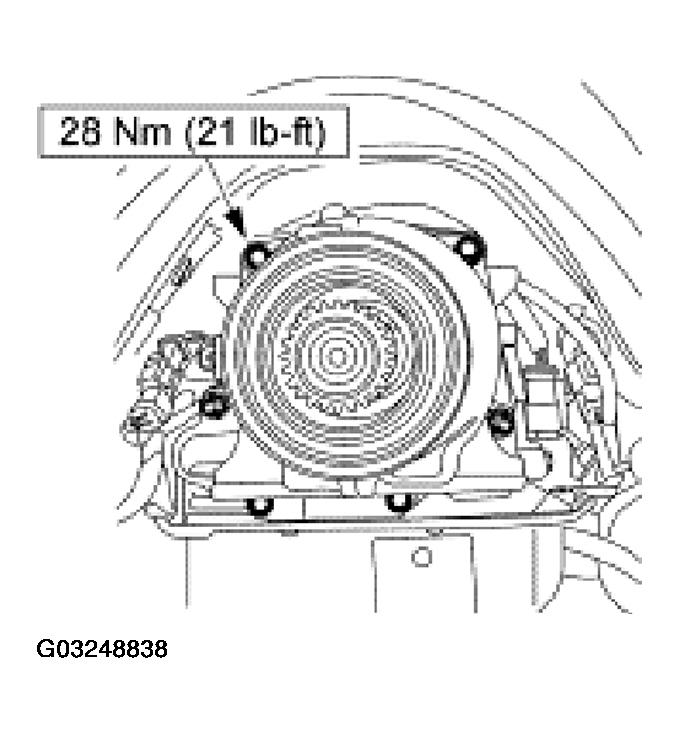

  2. Install the extension housing and the bolts.
    Fig 2: Installing Extension Housing
    G03248838Courtesy of FORD MOTOR CO.

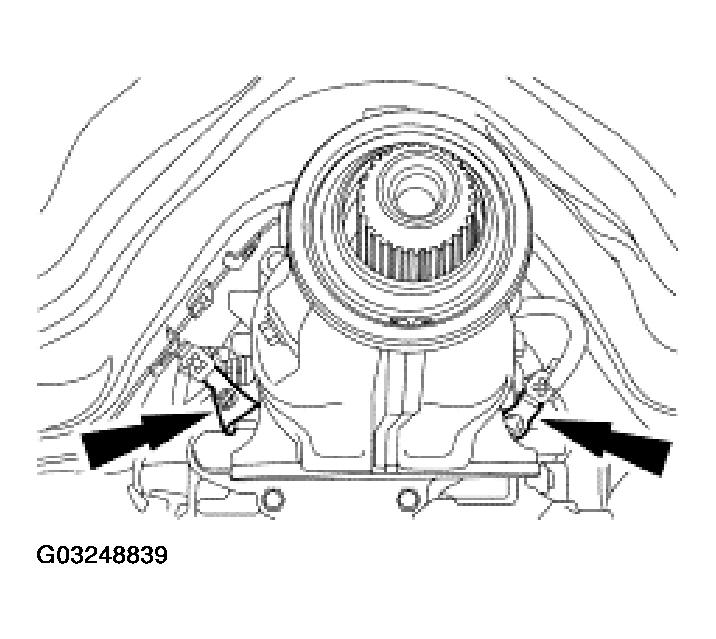

  3. Install the LH and RH catalyst monitor connector retainers.
    Fig 3: Installing LH And RH Catalyst Monitor Connector Retainers
    G03248839Courtesy of FORD MOTOR CO.
  4. Install the rear transmission insulator and bolts.

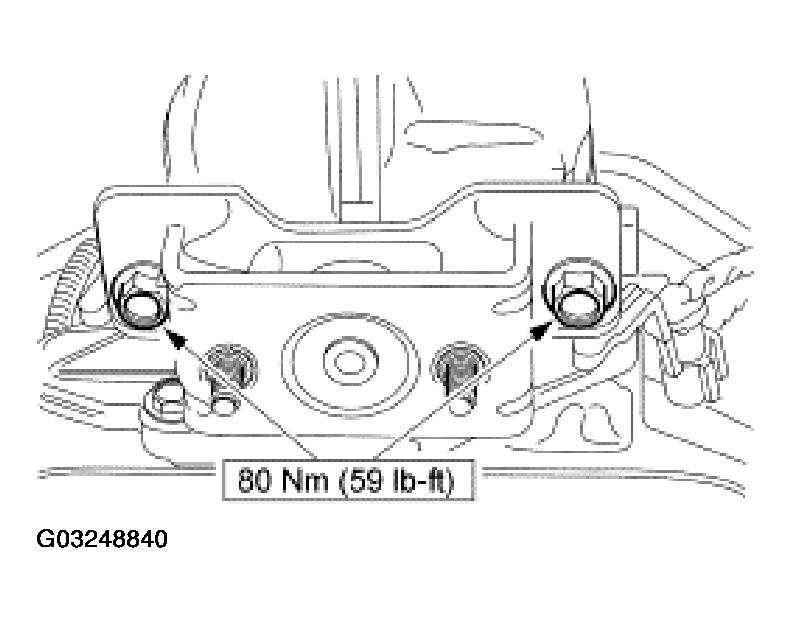

    Fig 4: Installing Rear Transmission Insulator
    G03248840Courtesy of FORD MOTOR CO.
  5. Position the RH crossmember and install the bolts.

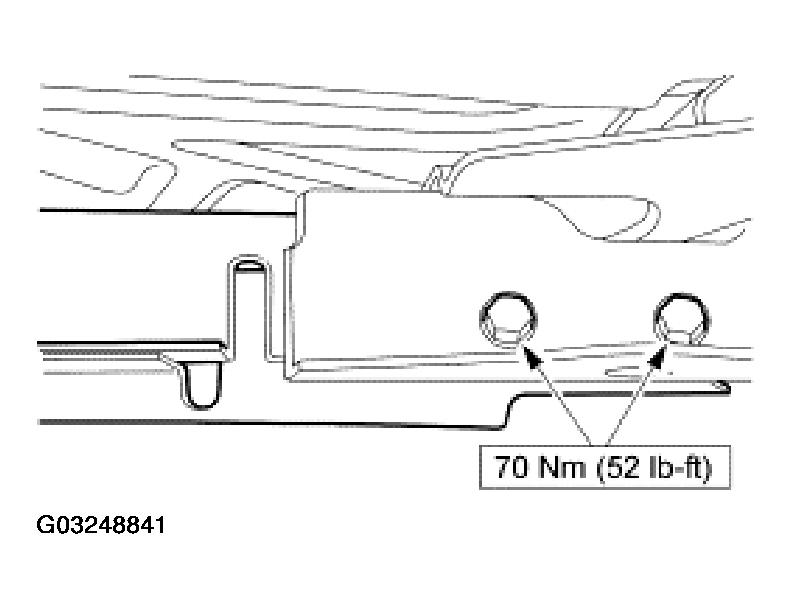

    Fig 5: Installing RH Side Crossmember
    G03248841Courtesy of FORD MOTOR CO.

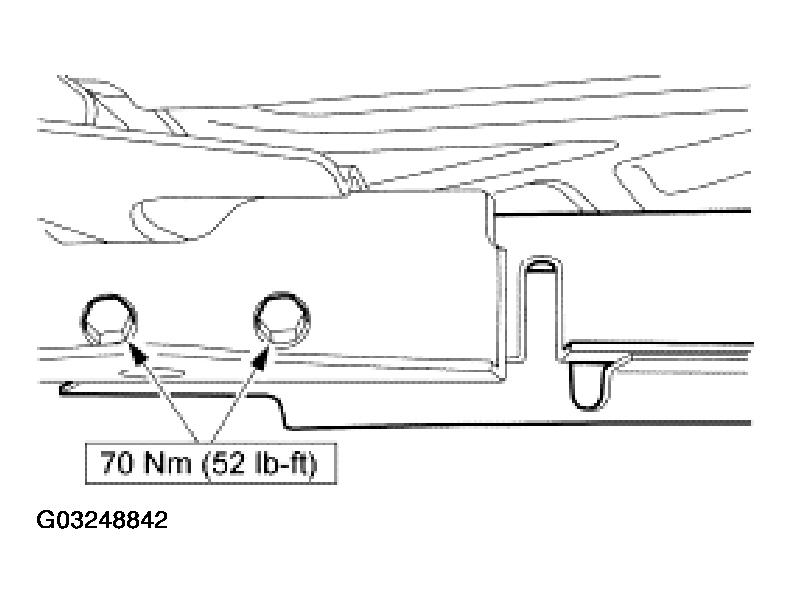

  6. Install the LH side crossmember bolt.
    Fig 6: Installing LH Side Crossmember
    G03248842Courtesy of FORD MOTOR CO.
  7. Install the parking brake cable bracket.

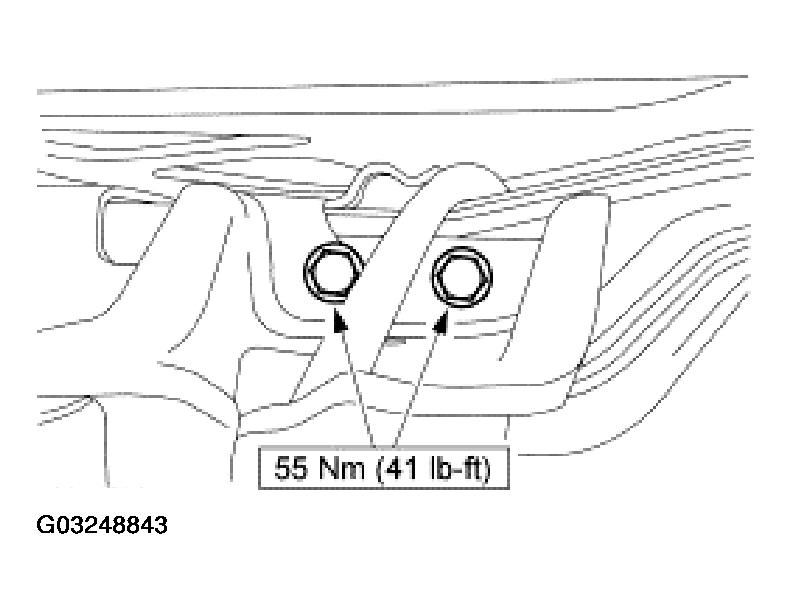

    Fig 7: Installing Parking Brake Cable Bracket
    G03248843Courtesy of FORD MOTOR CO.
  8. Lower the transmission onto the crossmember and install the rear transmission insulator nuts.

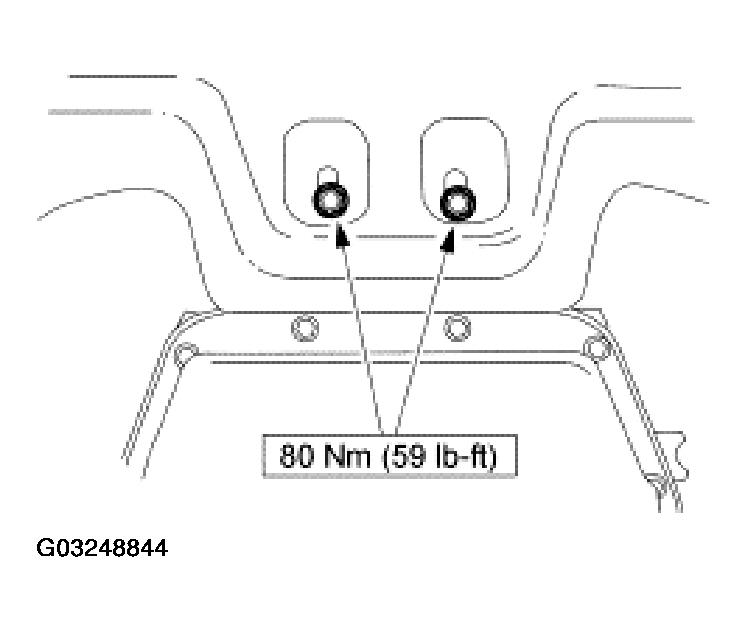

    Fig 8: Installing Rear Transmission Insulator Nuts
    G03248844Courtesy of FORD MOTOR CO.
  9. Remove the transmission jack.

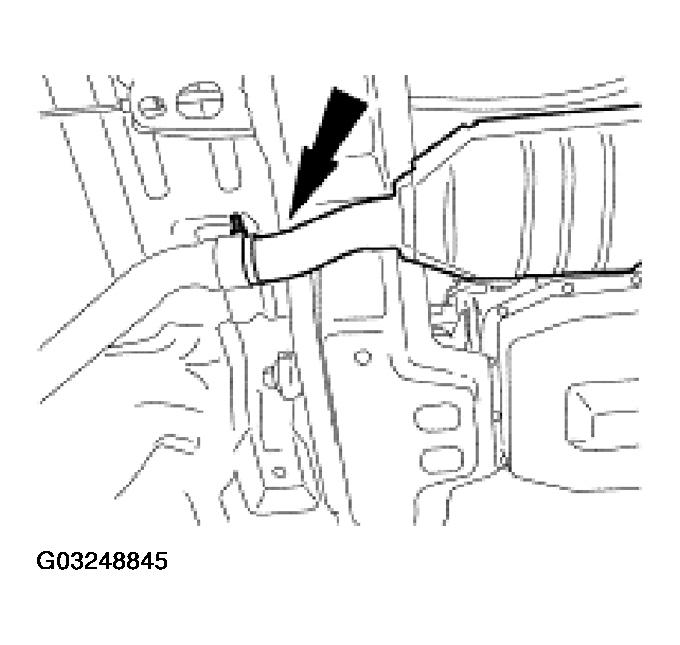

  10. Position the RH catalytic converter assembly in place. Do not tighten the clamp at this time.
    Fig 9: Installing RH Catalytic Converter Assembly
    G03248845Courtesy of FORD MOTOR CO.
  11. Install the RH exhaust flange nuts.
    Fig 10: Installing RH Exhaust Flange Nuts
    G03248846Courtesy of FORD MOTOR CO.

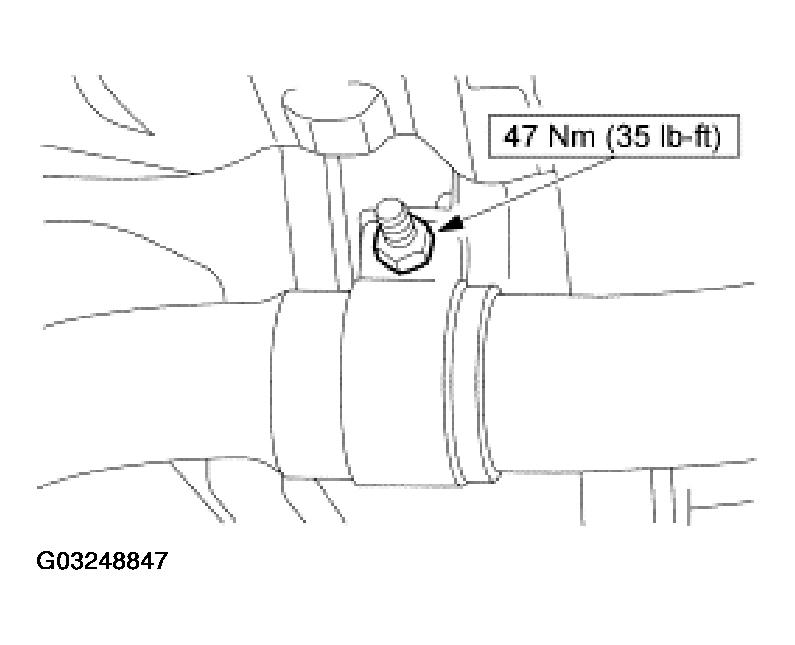

  12. Tighten the RH exhaust clamp.
    Fig 11: Tightening RH Exhaust Clamp
    G03248847Courtesy of FORD MOTOR CO.
  13. Connect the RH HO2S sensor connector.

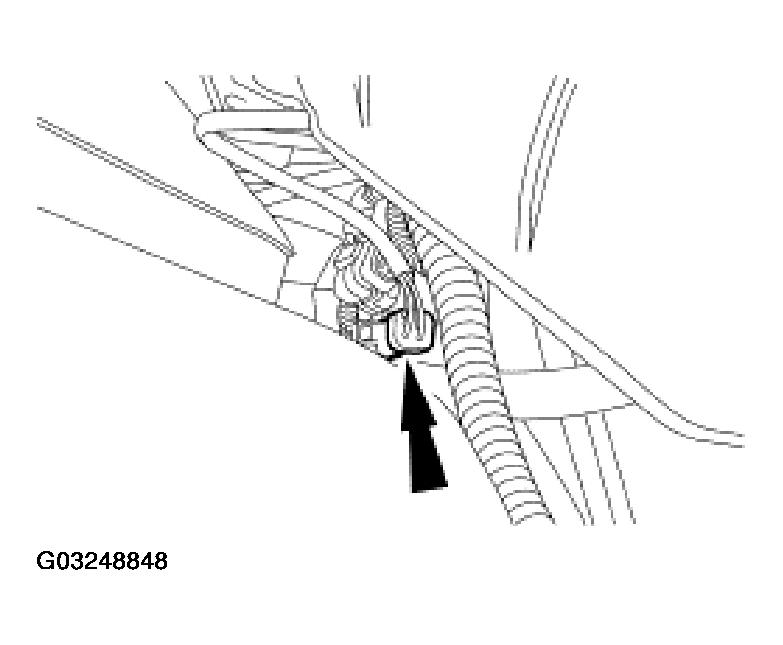

    Fig 12: Connecting RH HO2S Sensor Connector
    G03248848Courtesy of FORD MOTOR CO.

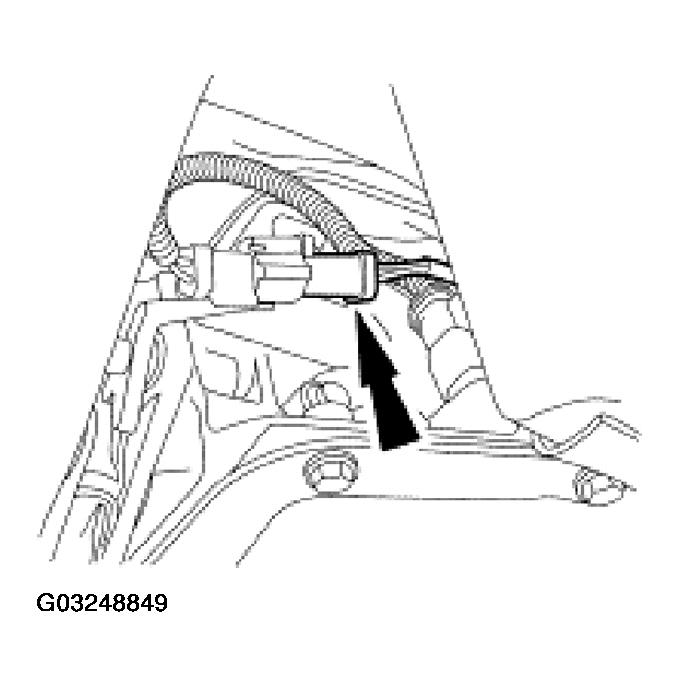

  14. Connect the RH catalyst monitor connector.
    Fig 13: Connecting RH Catalyst Monitor Connector
    G03248849Courtesy of FORD MOTOR CO.
  15. Position the LH catalytic converter assembly in place. Do not tighten the clamps at this time.

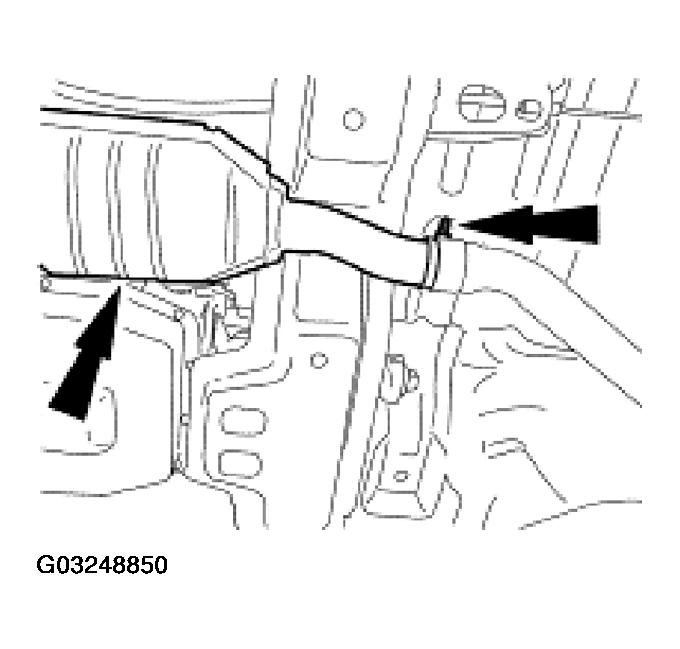

    Fig 14: Positioning LH Catalytic Converter Assembly
    G03248850Courtesy of FORD MOTOR CO.

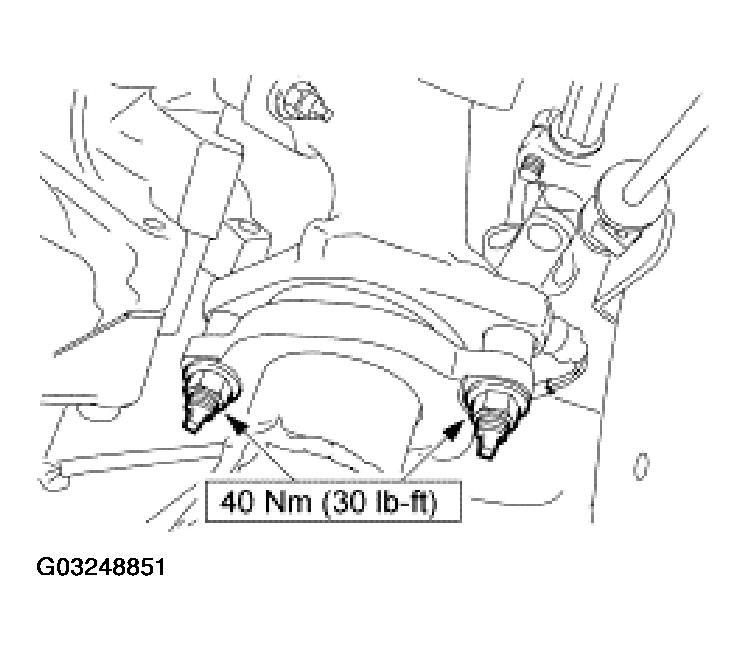

  16. Install the LH exhaust flange nuts.
    Fig 15: Installing LH Exhaust Flange Nuts
    G03248851Courtesy of FORD MOTOR CO.

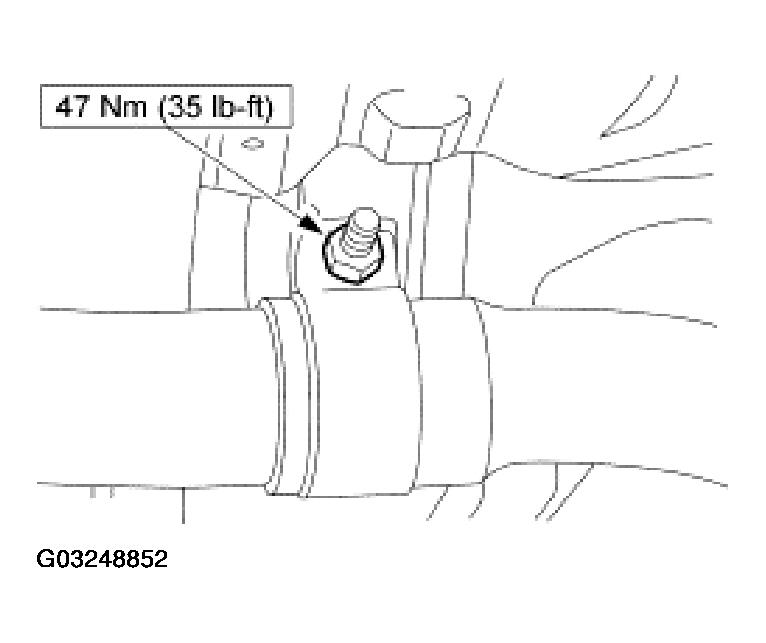

  17. Tighten the LH exhaust clamp.
    Fig 16: Tightening LH Exhaust Clamp
    G03248852Courtesy of FORD MOTOR CO.

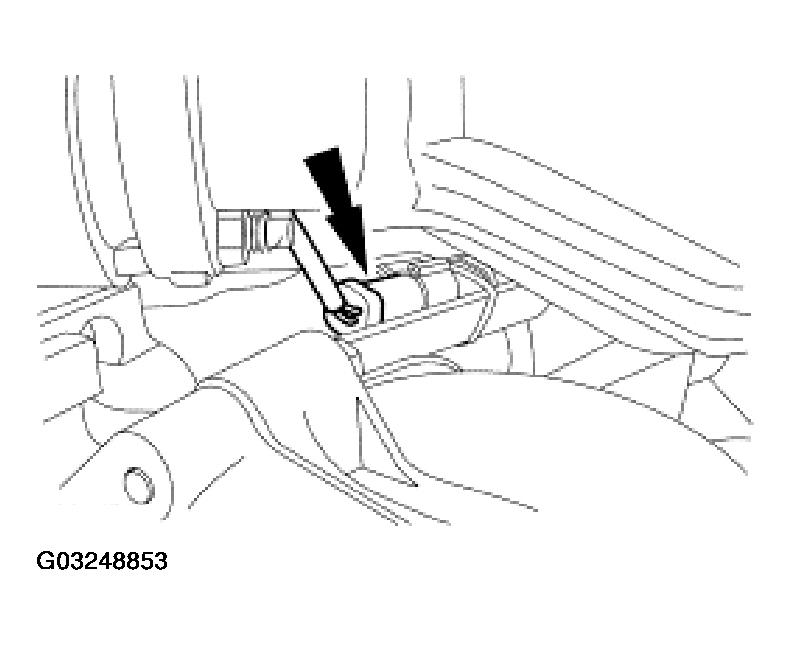

  18. Connect the LH HO2S sensor connector.
    Fig 17: Connecting LH HO2S Sensor Connector
    G03248853Courtesy of FORD MOTOR CO.

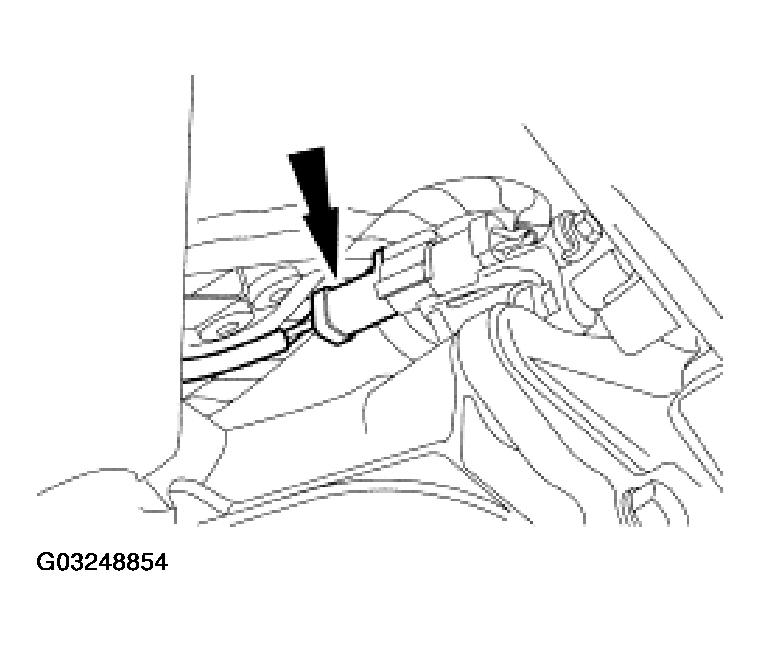

  19. Connect the LH catalyst monitor connector.
    Fig 18: Connecting LH Catalyst Monitor Connector
    G03248854Courtesy of FORD MOTOR CO.

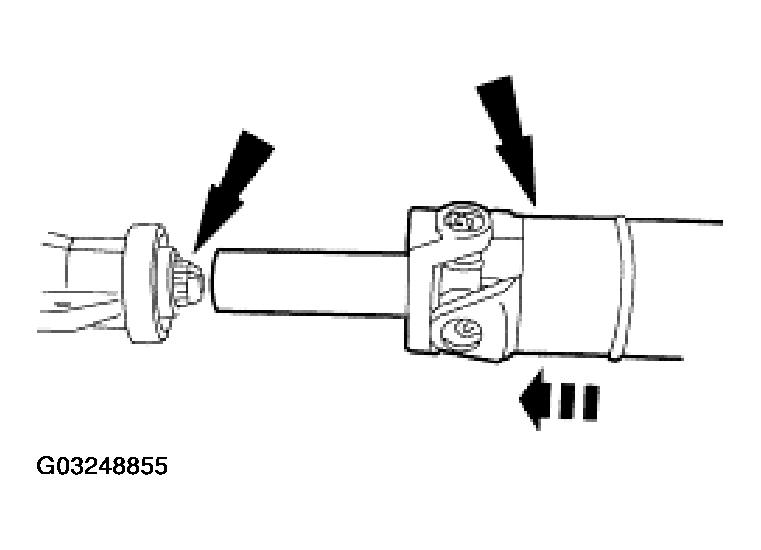

    20. NOTE: The output shaft and the driveshaft are a balanced assembly.
    Fig 19: Installing Driveshaft
    G03248855Courtesy of FORD MOTOR CO.
  20. Install the driveshaft.
    • Align the index marks and position the driveshaft on the transmission.
    • Install the driveshaft.
    21. NOTE: To maintain driveshaft balance, install the driveshaft yoke and flange in the original position that was marked during removal.

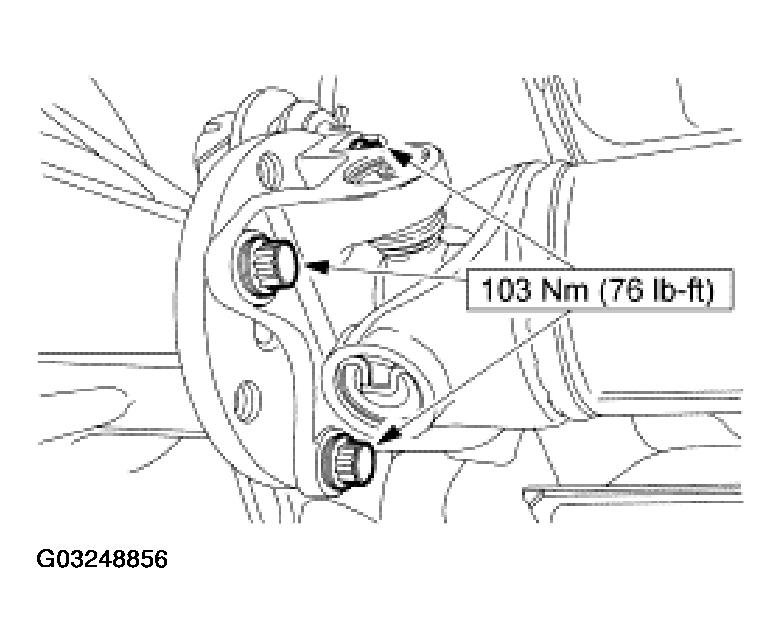

    Fig 20: Installing Driveshaft Retaining Bolts
    G03248856Courtesy of FORD MOTOR CO.
  21. Install the four retaining bolts.
  22. Lower the vehicle.
  23. Check the level of the transmission fluid, add clean automatic transmission fluid as necessary.
