Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor and loosely install the bolts.

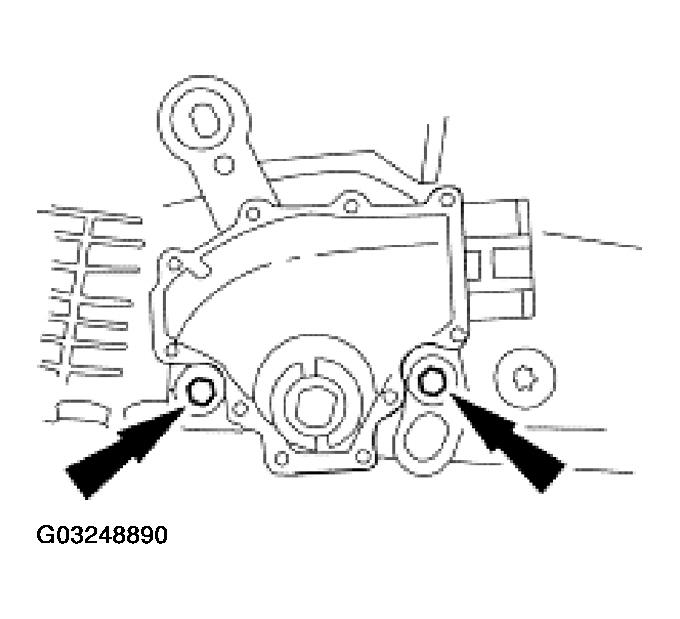

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: Manual shift lever shaft must be in the neutral position.

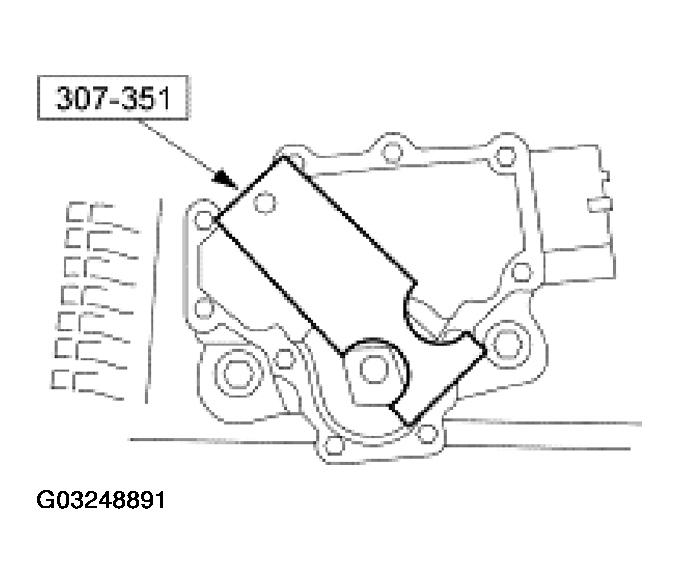

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

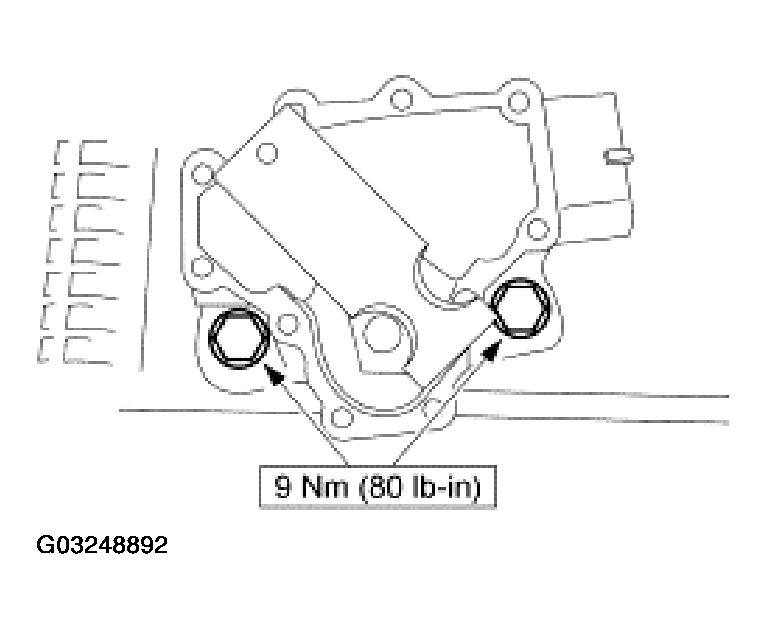

Fig 3: Tightening Digital TR Sensor Screws

Courtesy of FORD MOTOR CO.

Tighten the screws in an alternating sequence.
With the manual lever in overdrive, connect the shift lever control cable.

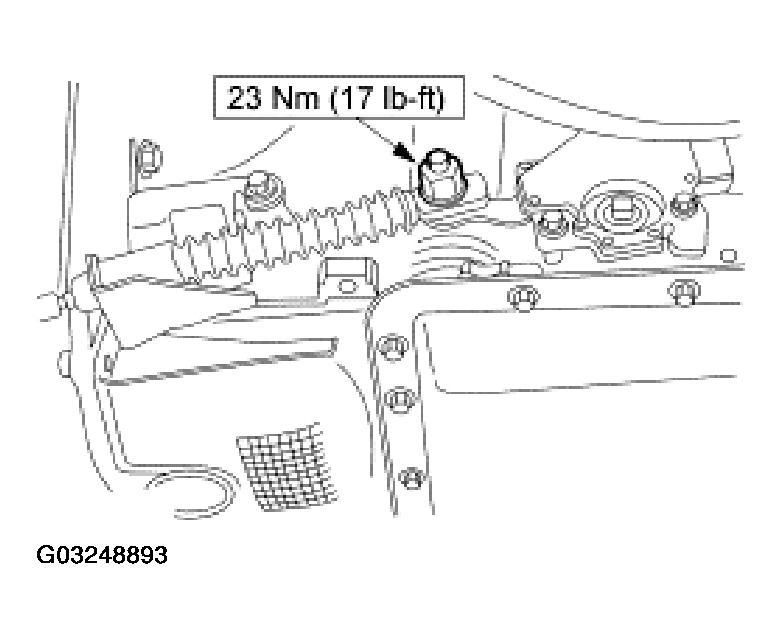

Fig 4: Connecting Shift Lever Control Cable
Courtesy of FORD MOTOR CO.
Connect the digital TR sensor electrical connector.

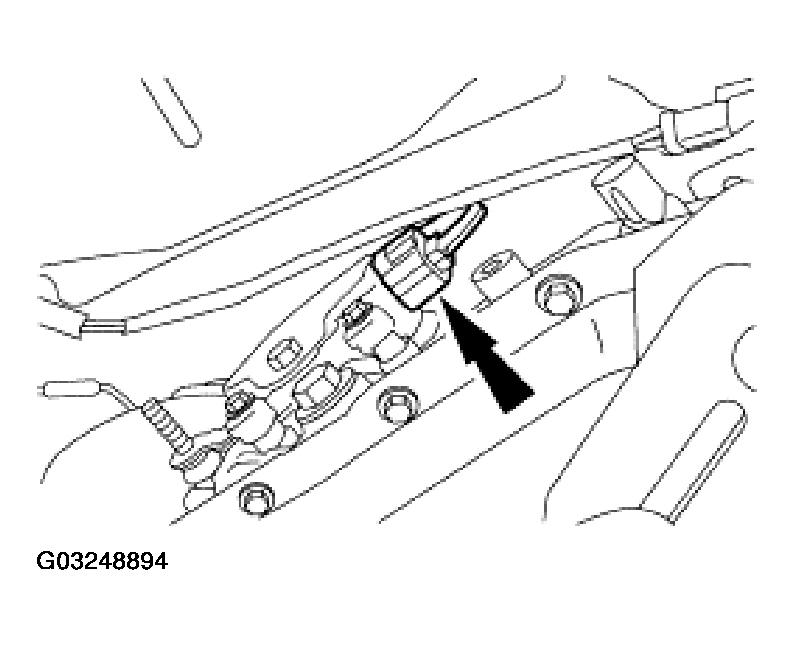

Fig 5: Connecting Digital TR Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
