Transmission Range (TR) Sensor Adjustment: Procedure

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
Loosen the digital TR sensor bolts.

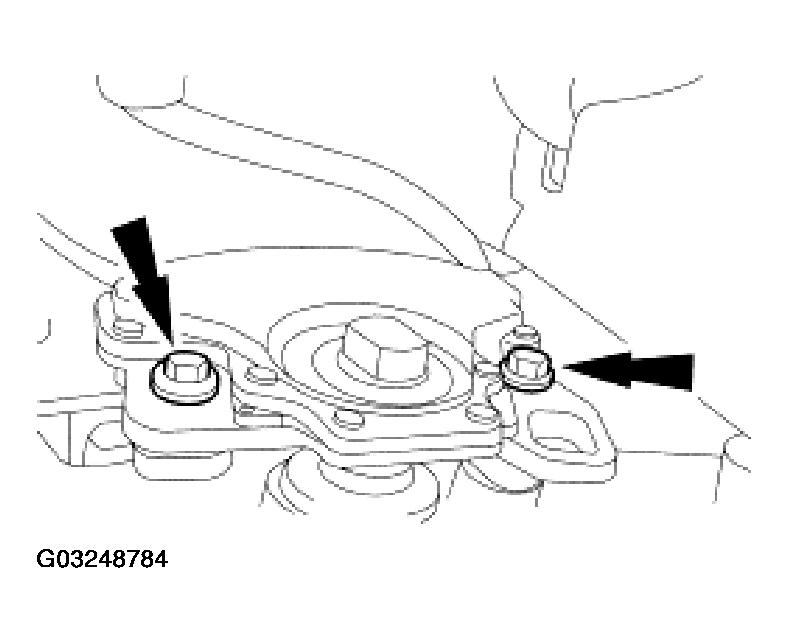

Fig 1: Removing Digital TR Sensor Bolts
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual lever is in the NEUTRAL position.

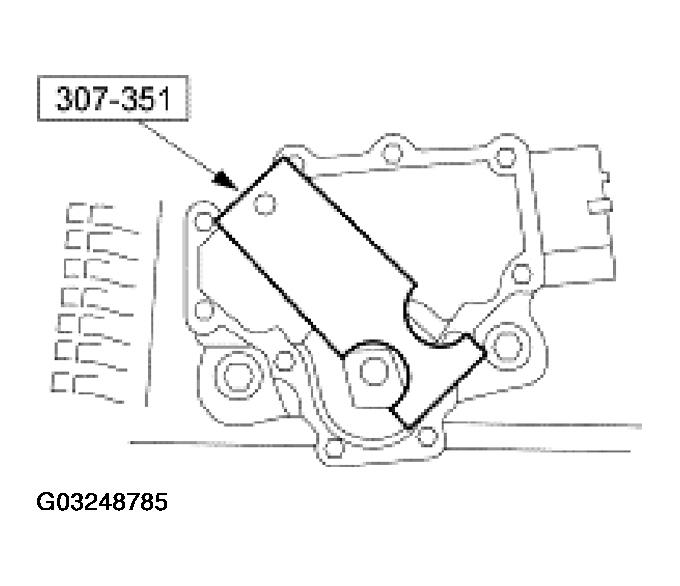

Fig 2: Aligning Digital TR Sensor Slots

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor slots. The tool is designed to fit snugly.

CAUTION: Tightening one screw before tightening the other may cause the sensor to bind or become damaged.

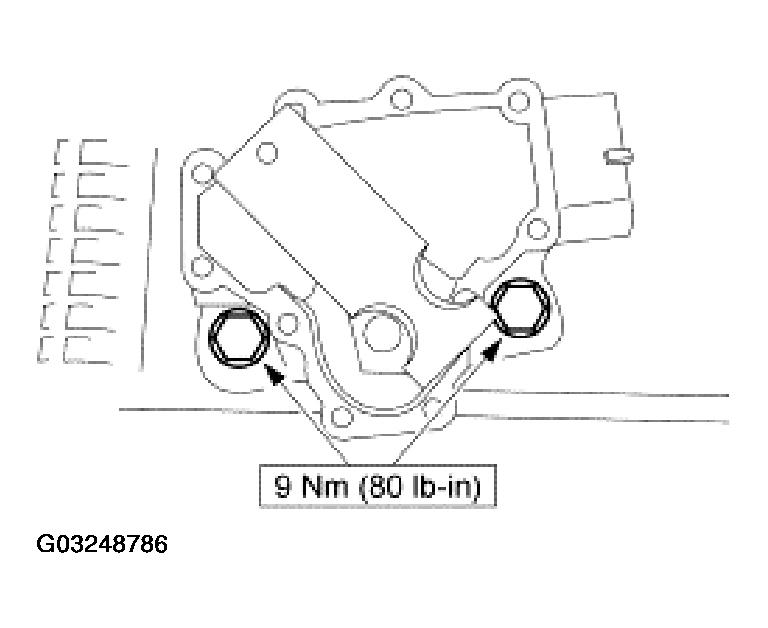

Fig 3: Tightening Digital TR Sensor Bolts

Courtesy of FORD MOTOR CO.

Tighten the digital TR sensor bolts and remove the special tool.
Verify that the vehicle starts in the PARK and NEUTRAL positions and the REVERSE lamps illuminate in REVERSE.
