Reverse Sun Gear: Disassembly

  1. Remove the reverse clutch sun gear assembly and the No. 4 forward clutch hub bearing and race.

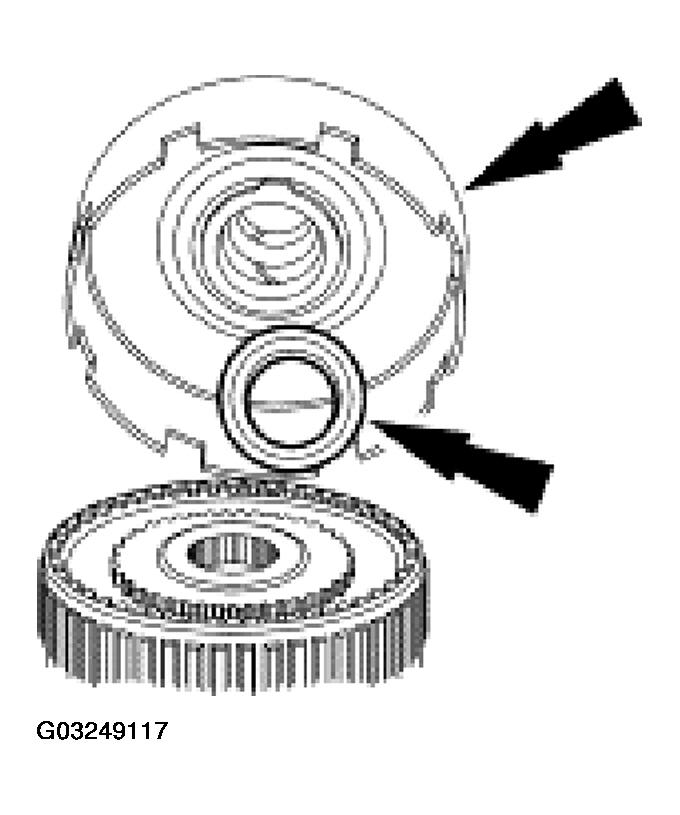

    Fig 1: Removing Reverse Clutch Sun Gear Assembly And No. 4 Forward Clutch Hub Bearing And Race
    G03249117Courtesy of FORD MOTOR CO.
  2. Remove the forward clutch sun gear assembly and the No. 5 forward clutch sun gear bearing and race.

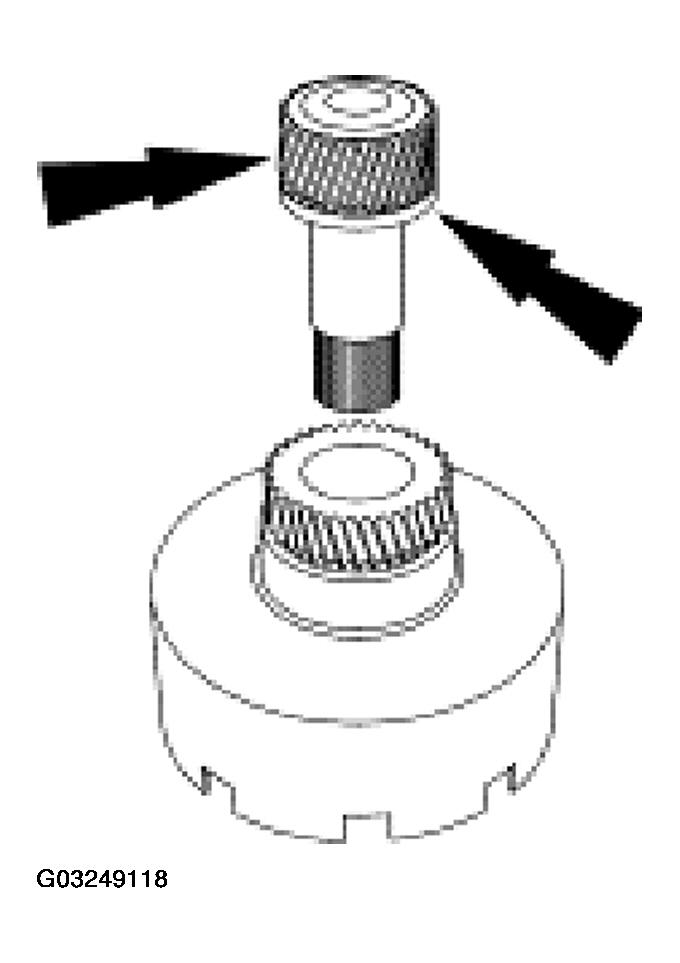

    Fig 2: Removing Forward Clutch Sun Gear Assembly And No. 5 Forward Clutch Sun Gear Bearing And Race
    G03249118Courtesy of FORD MOTOR CO.
