Instrument Cluster C220a

WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

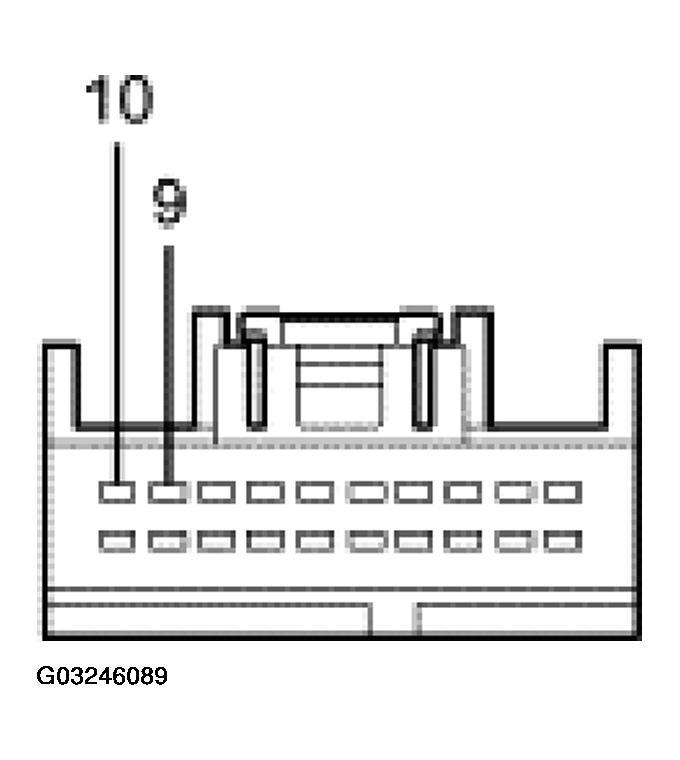

Fig 1: Identifying Instrument Cluster C220a Connector Terminal

Courtesy of FORD MOTOR CO.

INSTRUMENT CLUSTER C220A CONNECTOR CIRCUIT REFERENCE

Pin Number (s)	Circuit Designation/Description	Normal Condition/Measurement
9	915 (PK/LB) SCP communication circuit	Less than 5 ohms between the instrument cluster and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected.
10	914 (TN/OG) SCP communication circuit	Less than 5 ohms between the instrument cluster and the DLC. Greater than 10,000 ohms to ground with all network modules disconnected.
