Valve Seals: Removal

  1. Remove the valve springs. For additional information, refer to VALVE SPRINGS .
  2. Remove the valve stem seals.

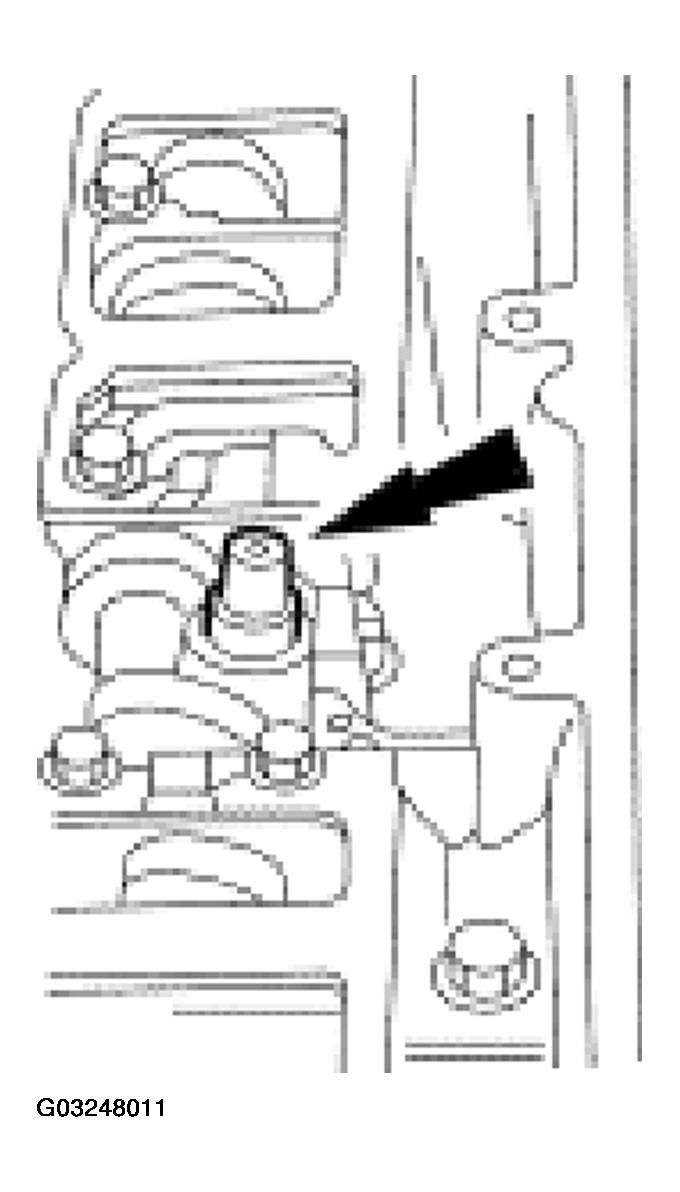

Fig 1: Removing Valve Stem Seals
G03248011Courtesy of FORD MOTOR CO.
