In-Vehicle Repair: Flexplate: Removal

  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSAXLE/TRANSMISSION .
  2. Remove the bolts and the flexplate.

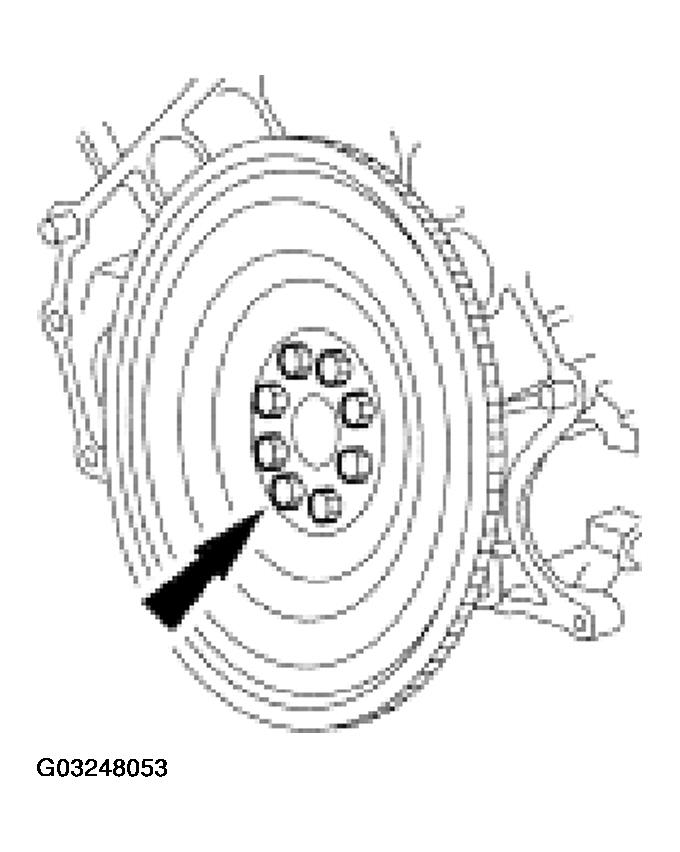

    Fig 1: Removing Flexplate
    G03248053Courtesy of FORD MOTOR CO.
