Removal And Installation

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
  2. Remove the generator. For additional information, refer to GENERATORS & REGULATORS .
  3. Install the special tools.

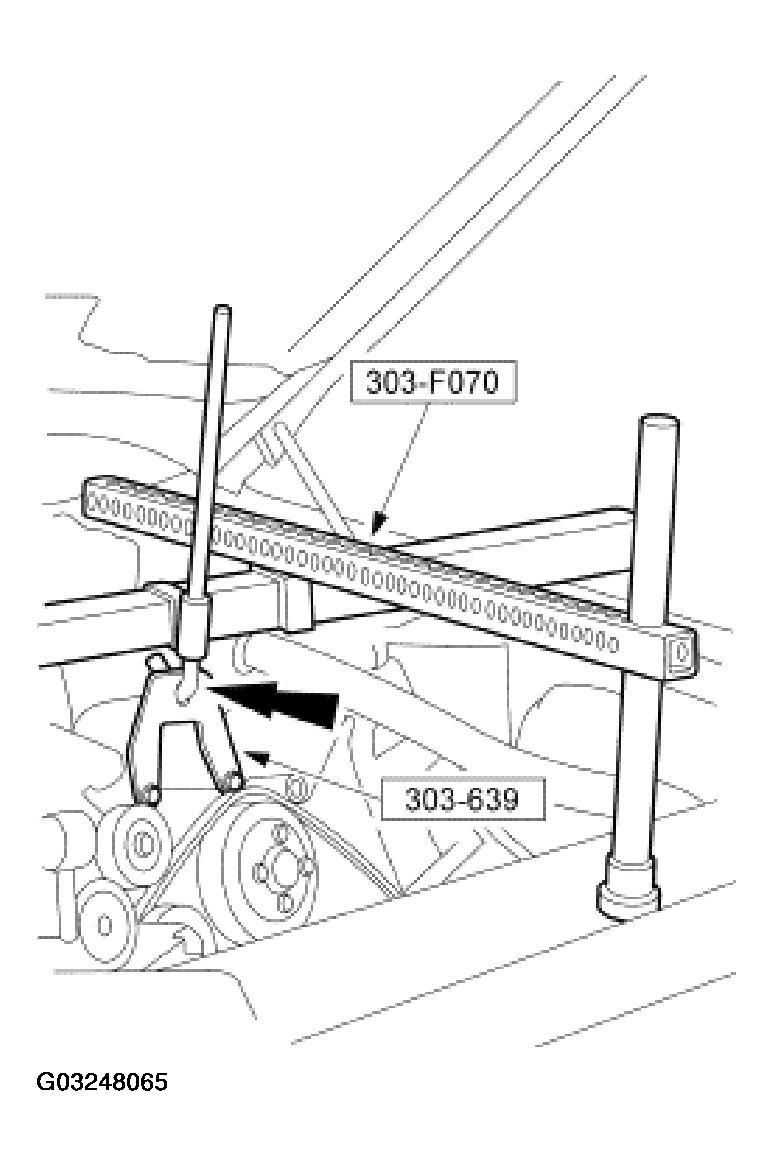

    Fig 1: Installing Special Tools
    G03248065Courtesy of FORD MOTOR CO.
  4. Remove the nut.

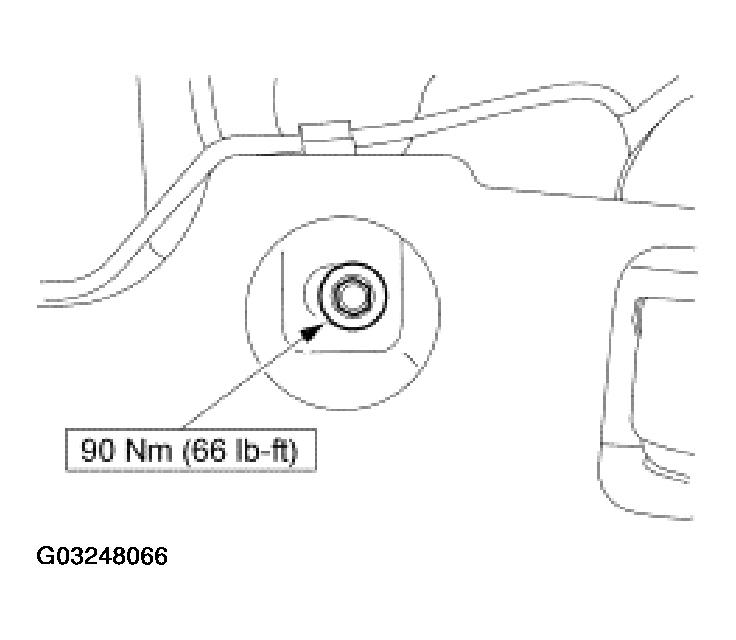

    Fig 2: Removing RH Engine Mount Nut
    G03248066Courtesy of FORD MOTOR CO.
  5. Using the special tools, raise the engine.
    Fig 3: Raising Engine
    G03248067Courtesy of FORD MOTOR CO.
  6. Remove the three bolts.

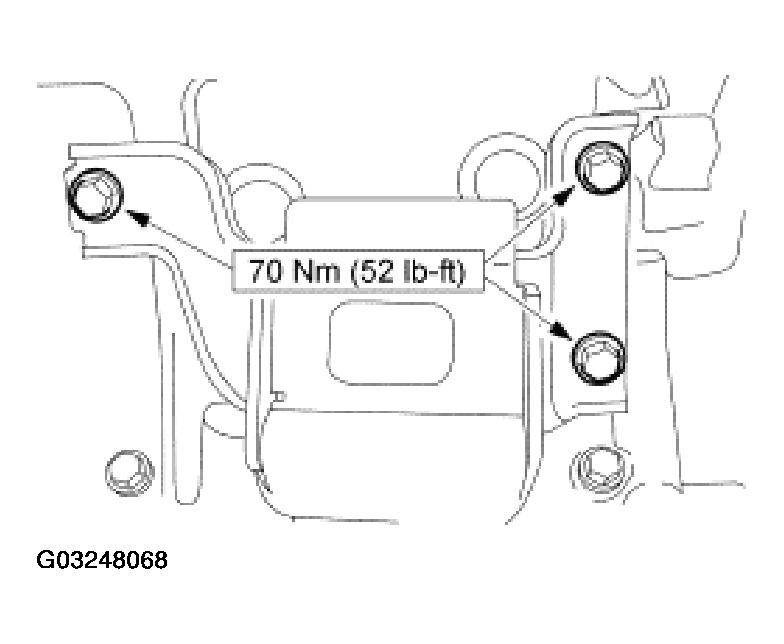

    Fig 4: Removing RH Engine Mount Bolts
    G03248068Courtesy of FORD MOTOR CO.
  7. Remove the RH engine mount.
  8. To install, reverse the removal procedure.
