Engine Front Cover: Removal

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & HOISTING .
Release the fuel system pressure. For additional information, refer to FUEL SYSTEM-GENERAL INFORMATION .
Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Remove both valve covers. For additional information, refer to VALVE COVER RH and VALVE COVER LH .
Remove the coolant pump. For additional information, refer to ENGINE COOLING .
Remove the bolts and position the power steering pump aside.

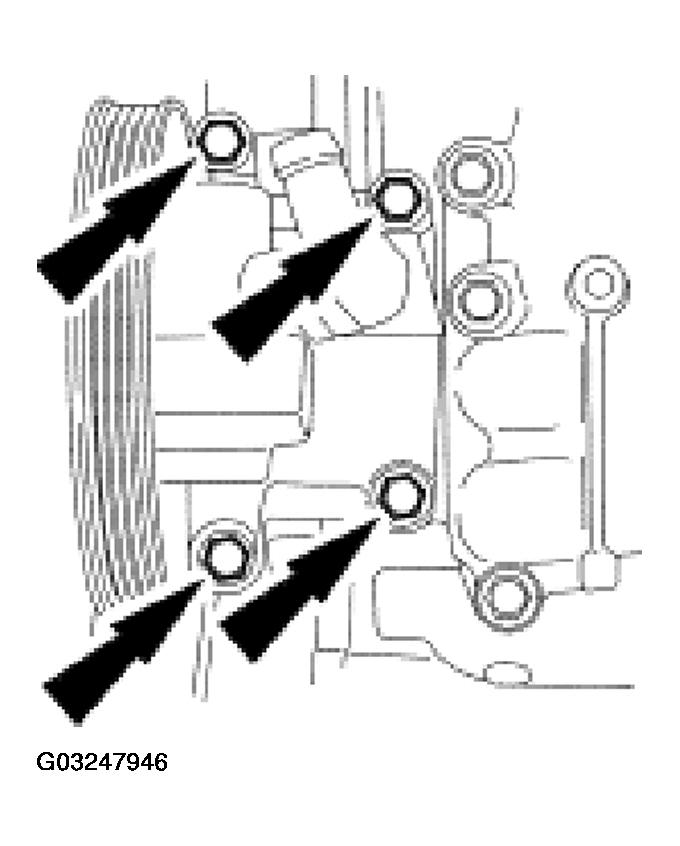

Fig 1: Removing Power Steering Pump Bolts
Courtesy of FORD MOTOR CO.
Remove the oil pan drain plug and drain the engine oil.

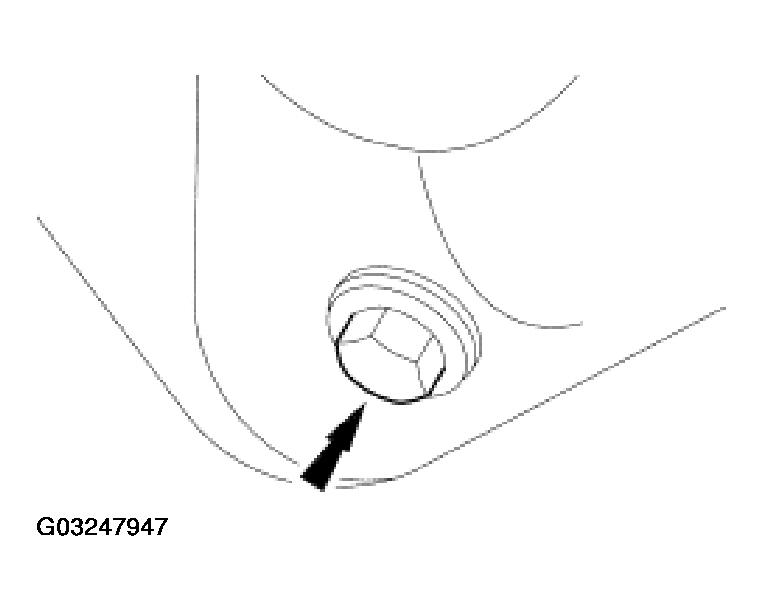

Fig 2: Removing Oil Pan Drain Plug
Courtesy of FORD MOTOR CO.
Remove the four bolts.

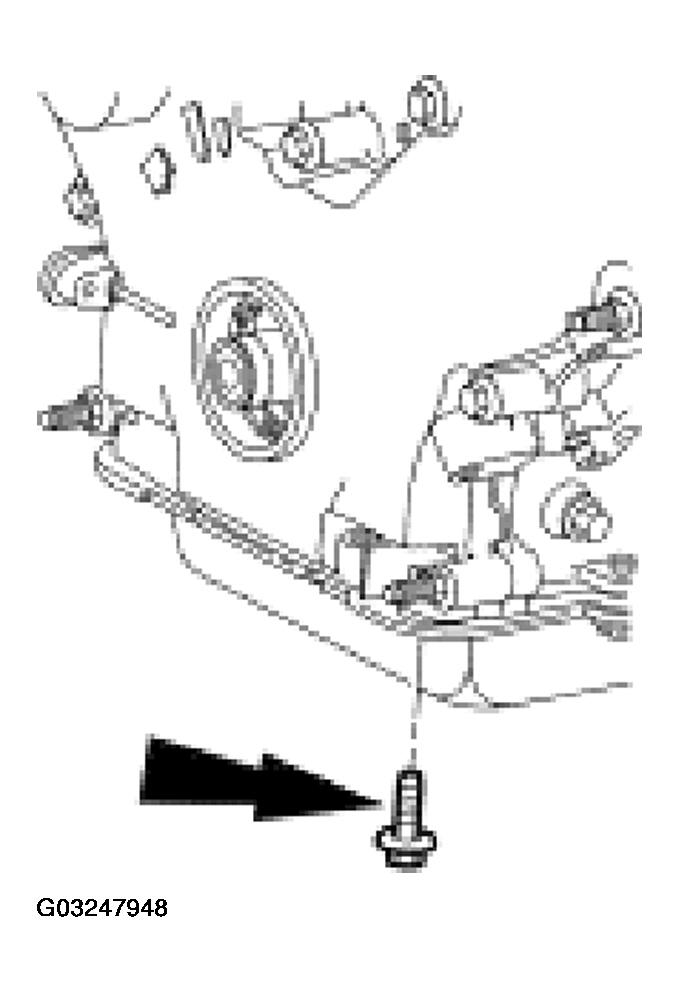

Fig 3: Removing Front Oil Pan Bolts
Courtesy of FORD MOTOR CO.
Remove the crankshaft front oil seal. For additional information, refer to CRANKSHAFT FRONT SEAL .
Remove the bolt and the belt idler pulley.

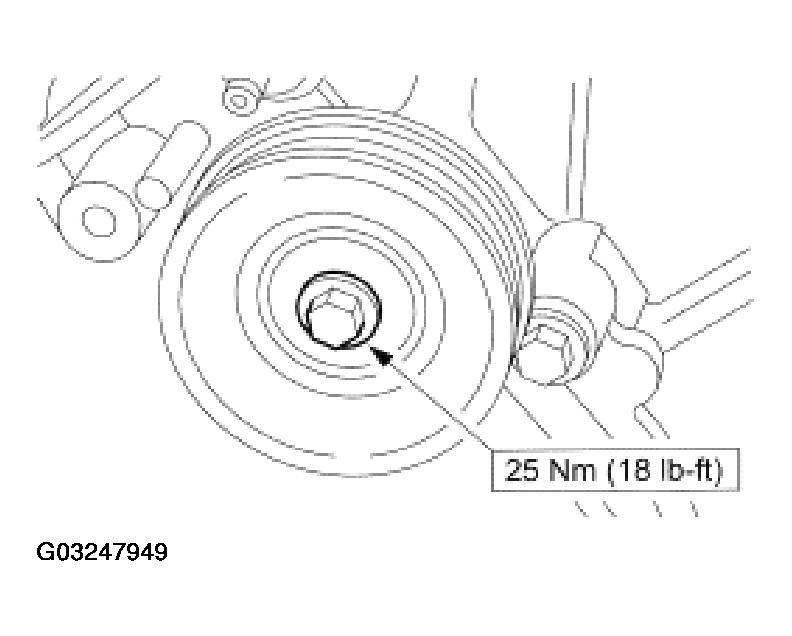

Fig 4: Removing Belt Idler Pulley
Courtesy of FORD MOTOR CO.
Remove the bolts and the stud bolts in the sequence shown.

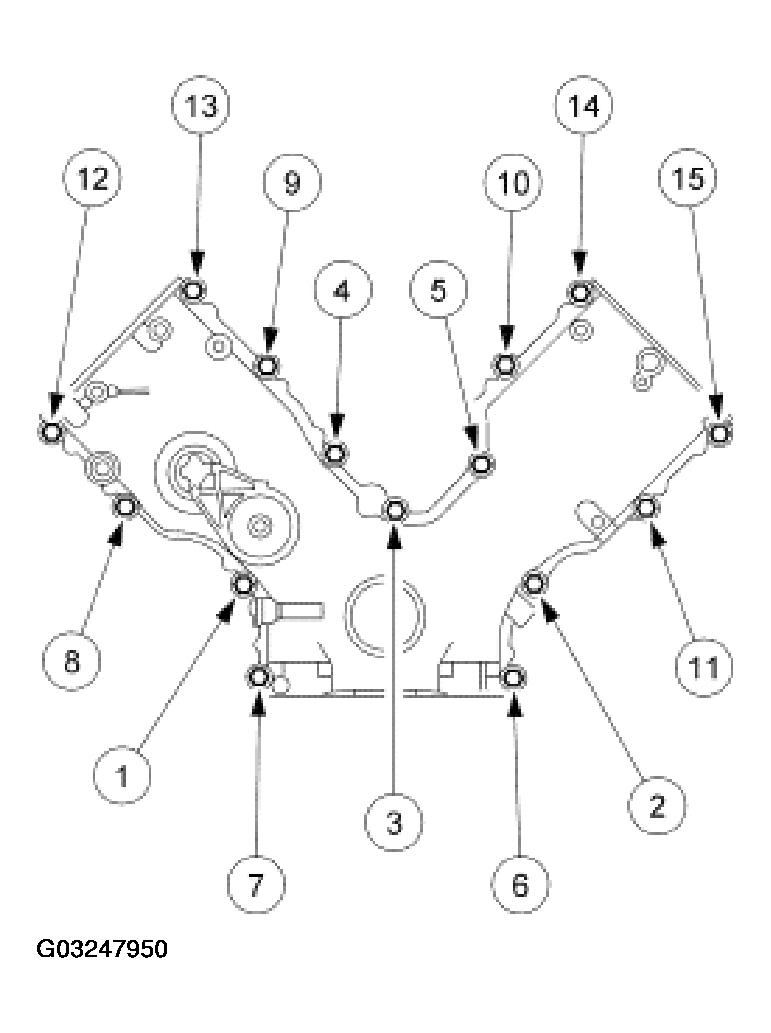

Fig 5: Removing Engine Front Cover Bolts And Stud Bolts In Sequence
Courtesy of FORD MOTOR CO.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surface. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the gasket material.

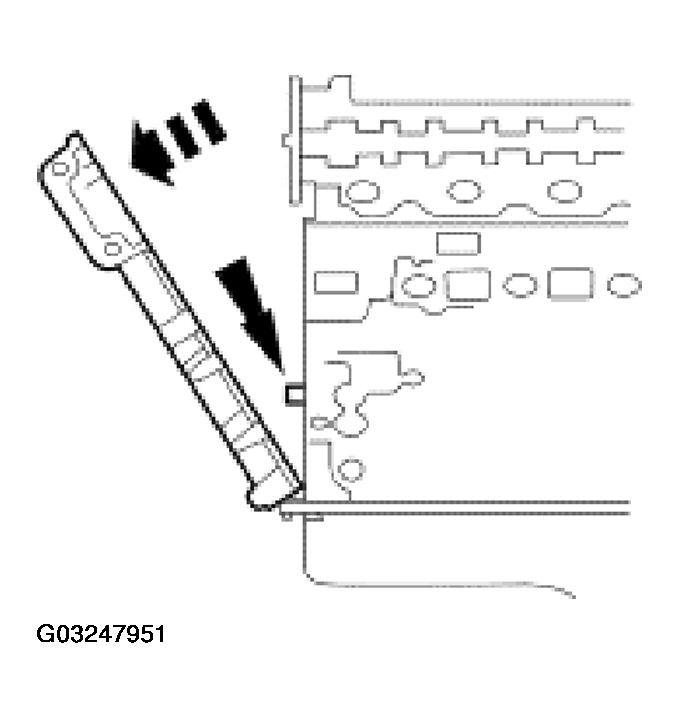

Fig 6: Removing Engine Front Cover

Courtesy of FORD MOTOR CO.

Remove the engine front cover from the front cover-to-cylinder block dowel.
- Clean the gasket surfaces with a plastic scraping tool and metal surface cleaner.
