In-Vehicle Repair: Camshaft: Installation

Lubricate the camshaft journals with clean engine oil.

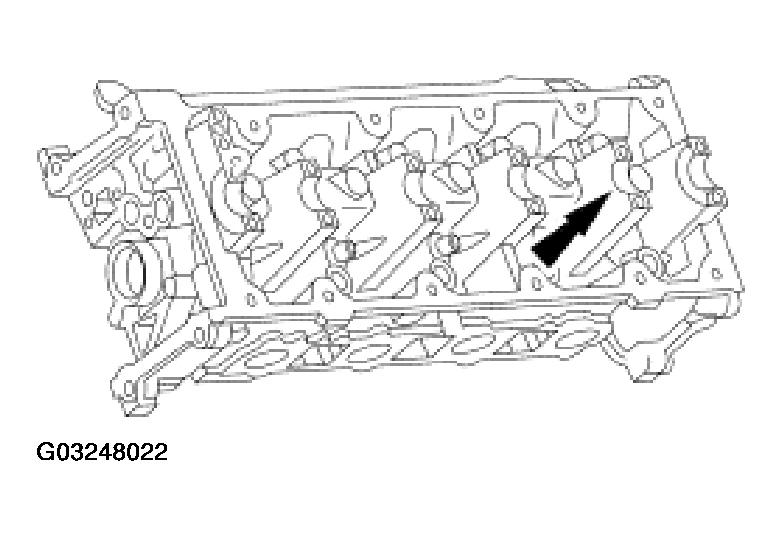

Fig 1: Lubricating Camshaft Journals With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the camshaft onto the cylinder head.

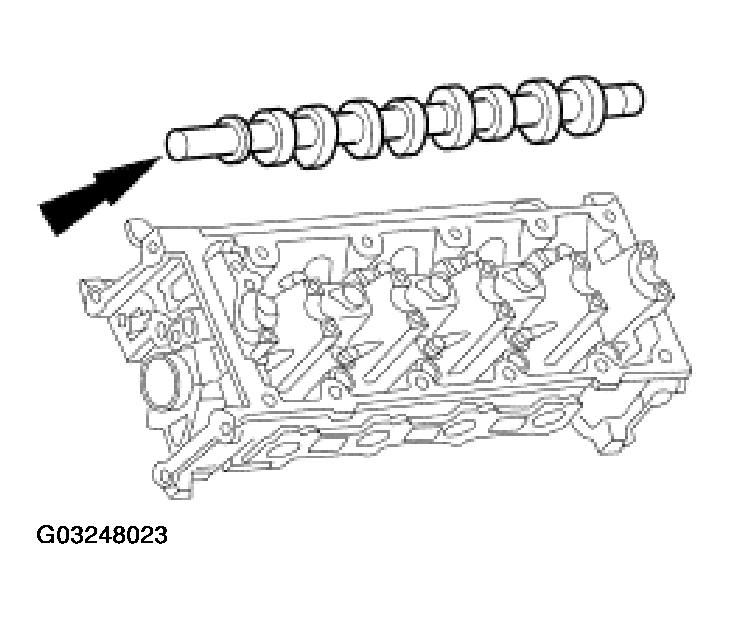

Fig 2: Installing Camshaft Onto Cylinder Head
Courtesy of FORD MOTOR CO.
Lubricate the camshaft bearing cap ladders with clean engine oil.

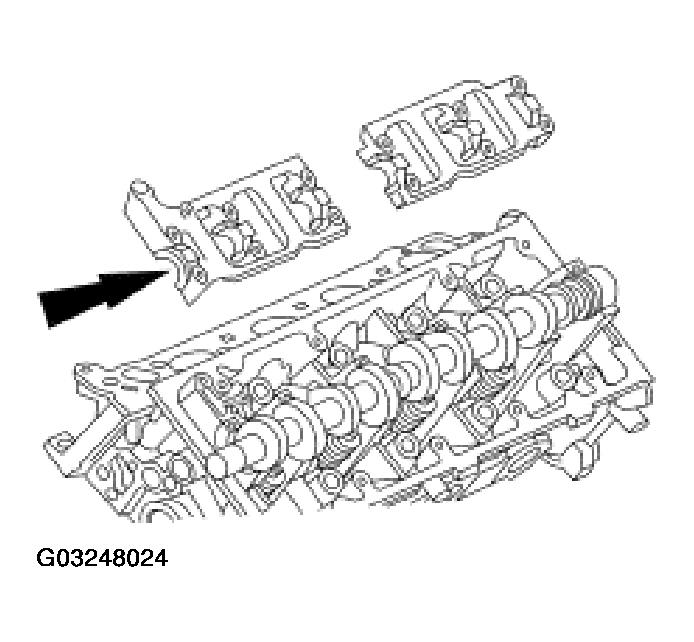

Fig 3: Lubricating Camshaft Bearing Cap Ladders With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the camshaft bearing caps and loosely install the bolts.

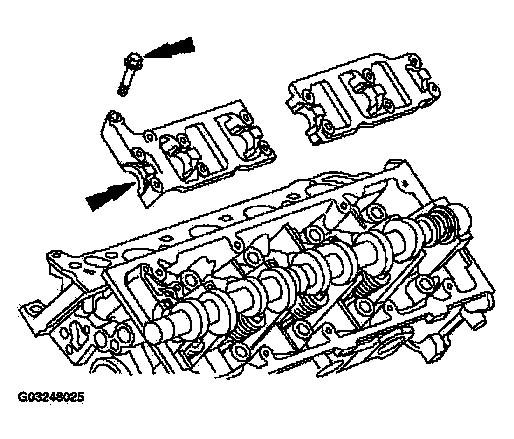

Fig 4: Installing Camshaft Bearing Caps
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown.

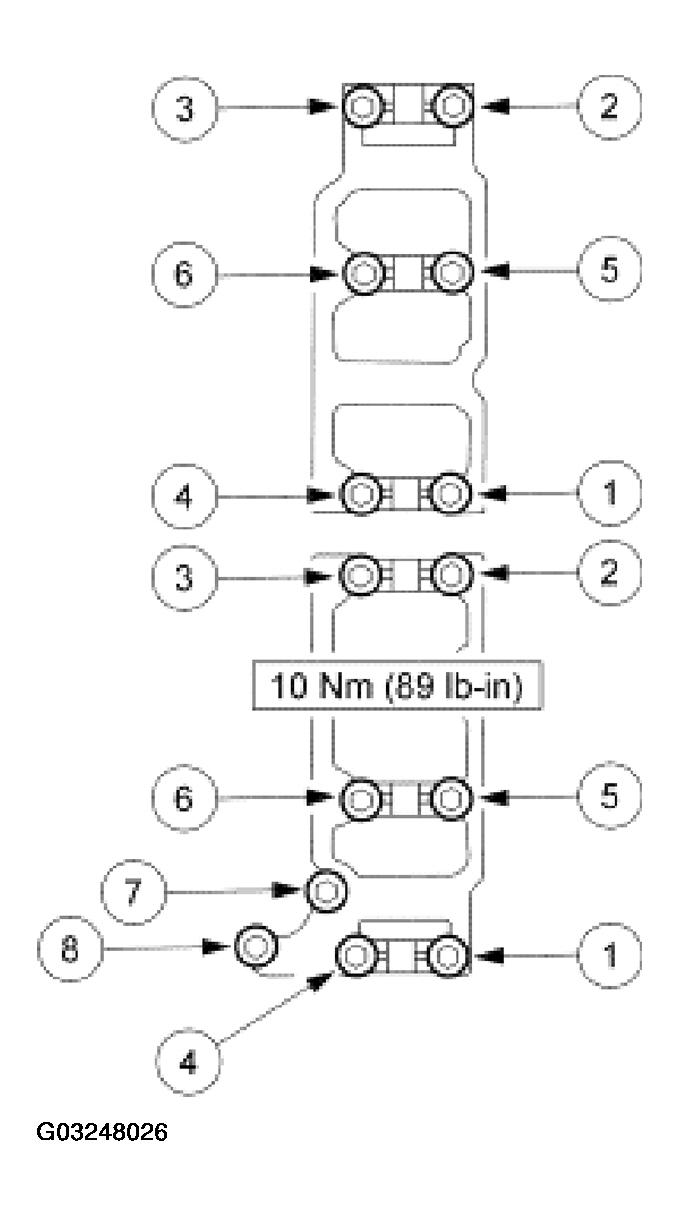

Fig 5: Identifying Camshaft Bearing Caps Tightening Sequence
Courtesy of FORD MOTOR CO.
Install the camshaft sprocket spacer.
1. Position the camshaft sprocket and sprocket spacer.
2. Install the bolt.

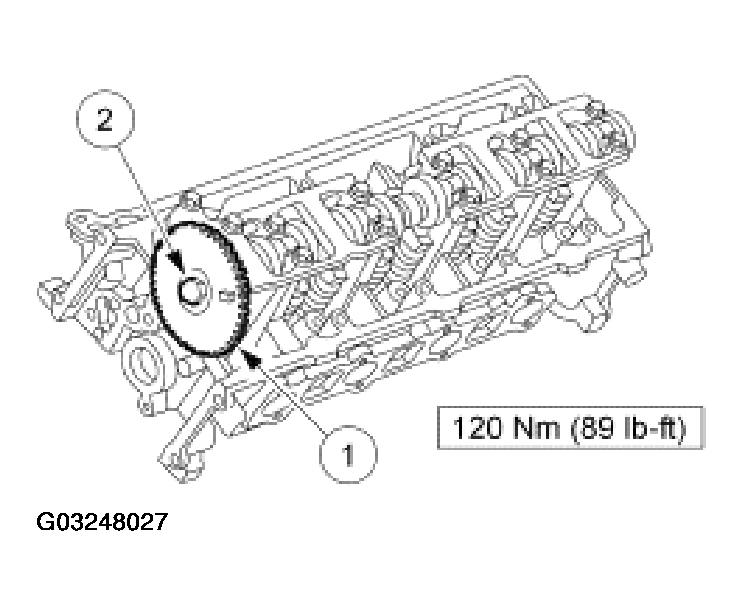

Fig 6: Installing Camshaft Sprocket Spacer
Courtesy of FORD MOTOR CO.
Install the timing chains. For additional information, refer to TIMING DRIVE COMPONENTS .
Install the roller followers. For additional information, refer to CAMSHAFT ROLLER FOLLOWER .
