Piston - Diameter

  1. Measure the piston diameter 90 degrees from the piston pin and 42 mm down from the top of the piston at the point indicated. Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

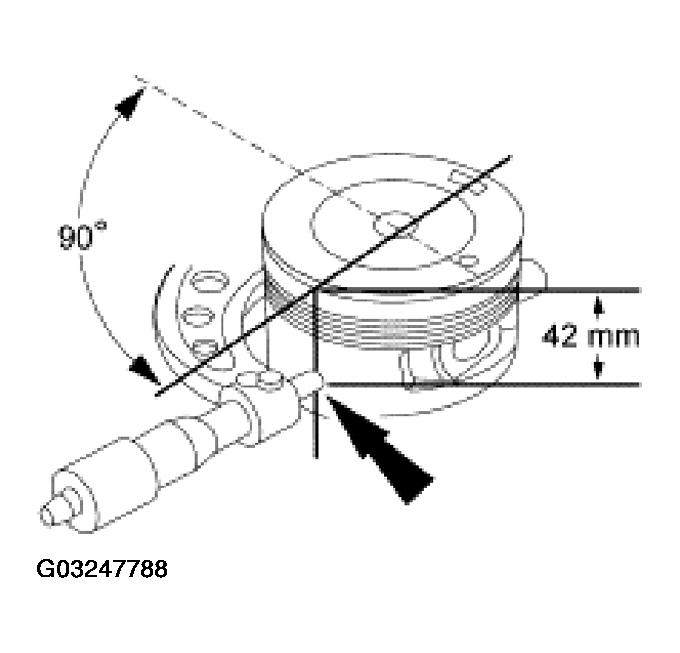

    Fig 1: Measuring Piston Diameter 90 Degrees From Piston Pin
    G03247788Courtesy of FORD MOTOR CO.
