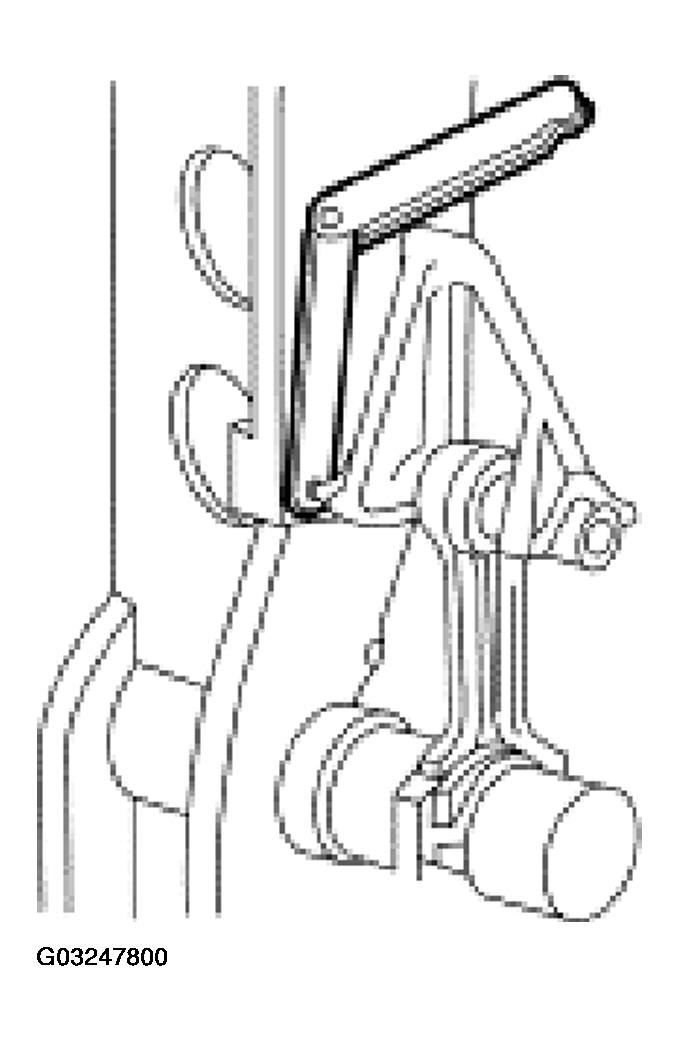

Measure the connecting rod twist on a suitable alignment fixture. Follow the instructions of the fixture manufacturer.Verify the measurement is within specification.
- Refer to ENGINE
for the procedure.
- If out of specification, install new components as necessary. Refer to ENGINE
for the procedure.
Courtesy of FORD MOTOR CO.
