Connecting Rod - Bend

  1. Measure the connecting rod bend on a suitable alignment fixture. Follow the instructions of the fixture manufacturer.

    Verify the bend measurement is within specification.

    • Refer to ENGINE for the procedure.
    • If out of specification, install new components as necessary. Refer to ENGINE for the procedure.

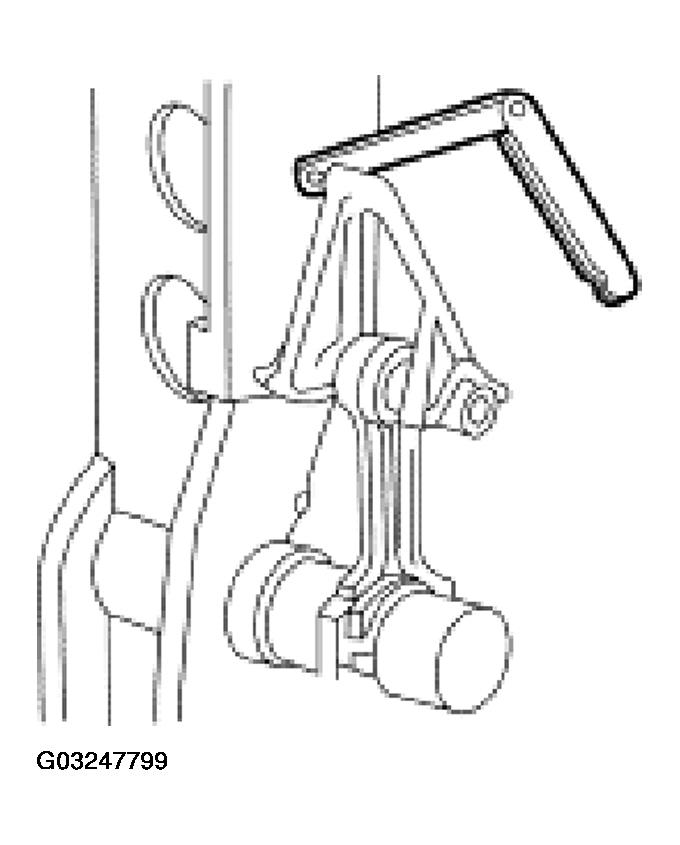

    Fig 1: Measuring Connecting Rod Bend On A Suitable Alignment
    G03247799Courtesy of FORD MOTOR CO.
