Removal and Installation

  1. Remove the transmission control (TC) switch.
    1. Remove the TC switch cover.
    2. Remove the TC switch.

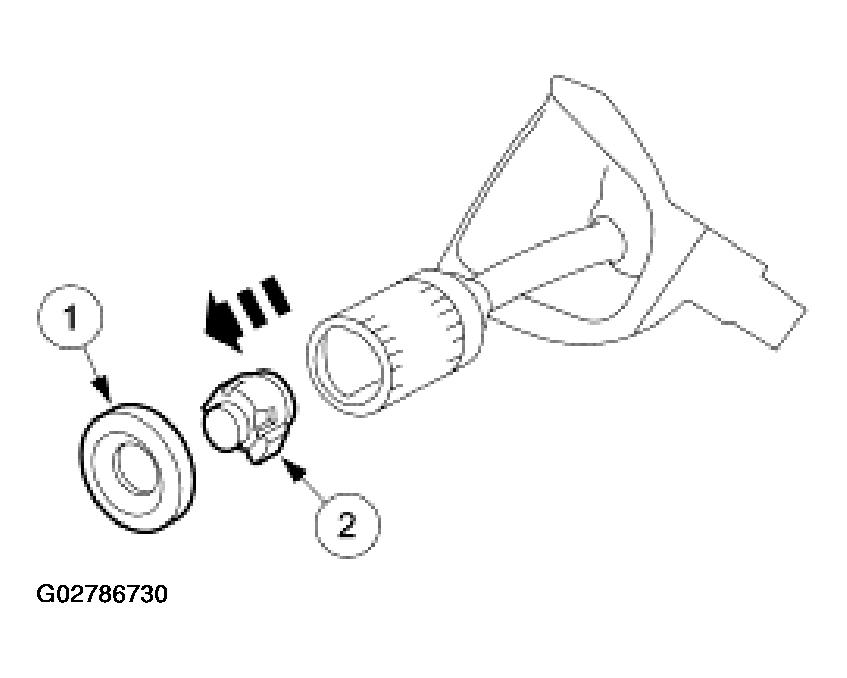

    Fig 1: Removing Transmission Control (TC) Switch
    G02786730Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
