Rear Toe Adjustment

NOTE: Air suspension vehicles must be at trim ride height prior to measuring or adjusting the rear toe. For additional information, refer to Section VEHICLE DYNAMIC - 4 WHEEL .

Start the engine and center the steering wheel.
Turn the engine off, and hold the steering wheel in the "straight forward" position using a suitable holding device.
Loosen the nut(s).
- Clean and lubricate the nut(s) and rear toe link threads.

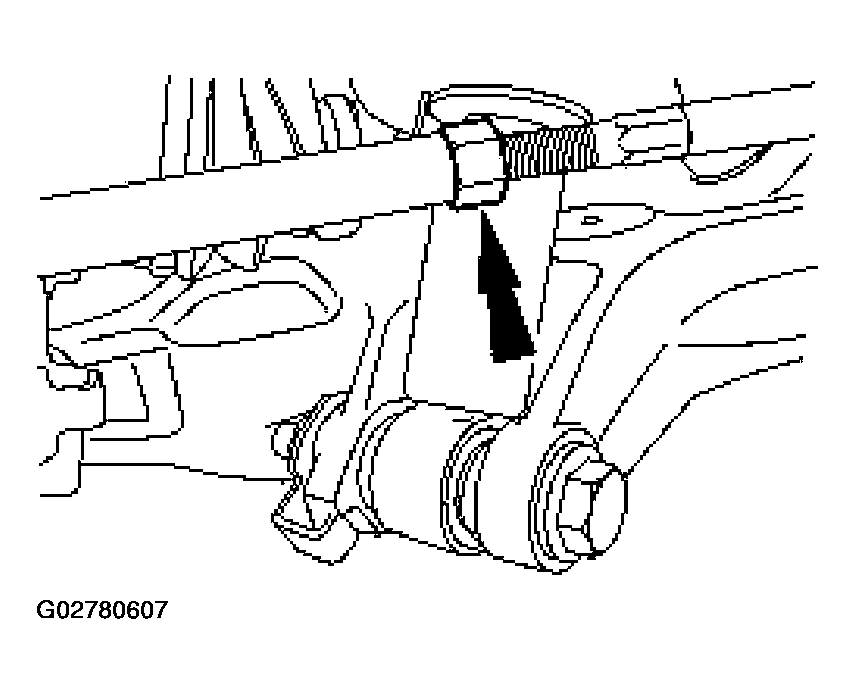

Fig 1: Identifying Locking Nut
Courtesy of FORD MOTOR CO.
Rotate the spindle tie rod.

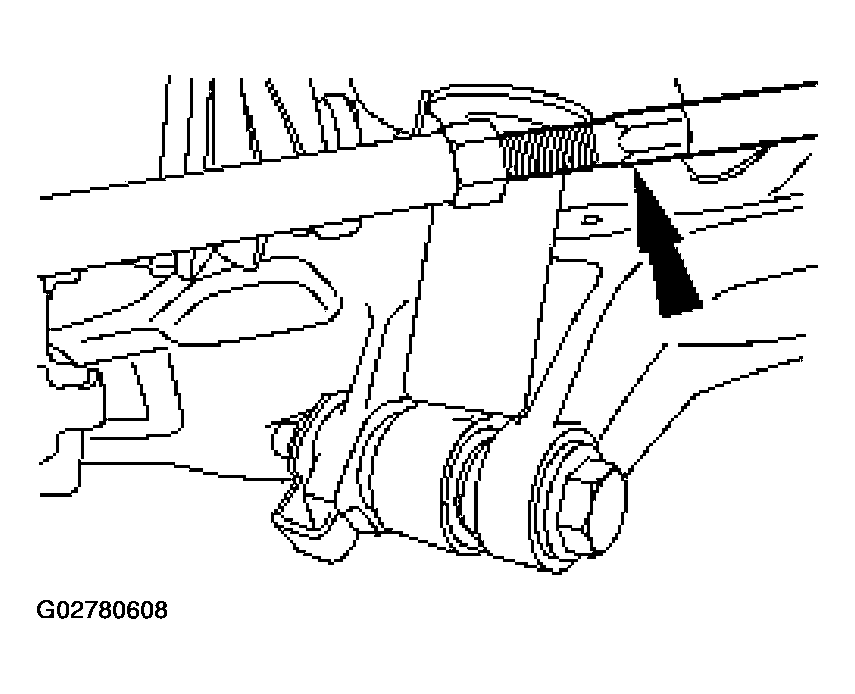

Fig 2: Identifying Spindle Tie Rod
Courtesy of FORD MOTOR CO.

NOTE: Make sure the toe settings are not disturbed while tightening the nuts.

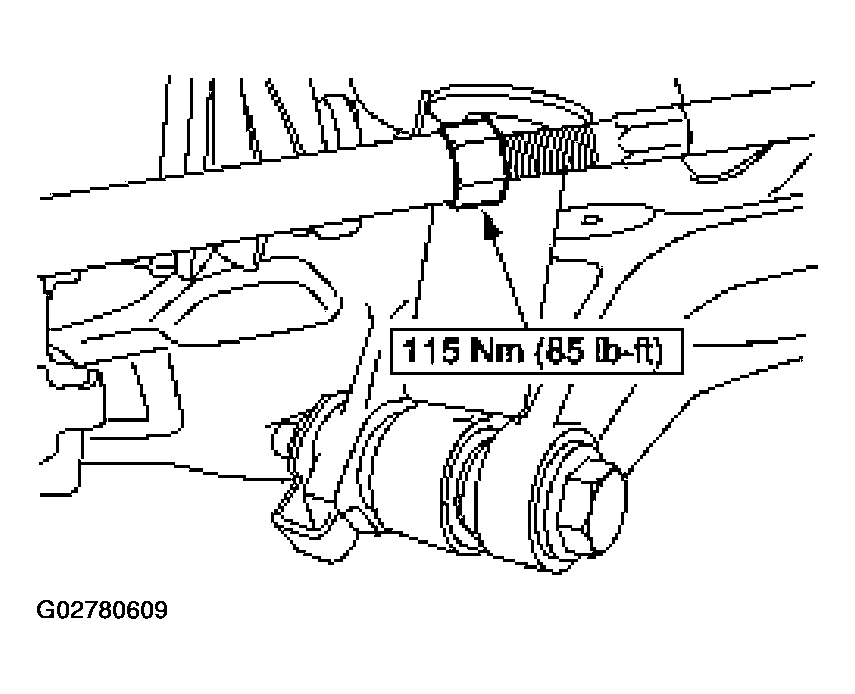

Fig 3: Locking Nut Torque Specification

Courtesy of FORD MOTOR CO.

Tighten the nut(s).
