Identifying Connector (C314) (Expedition)

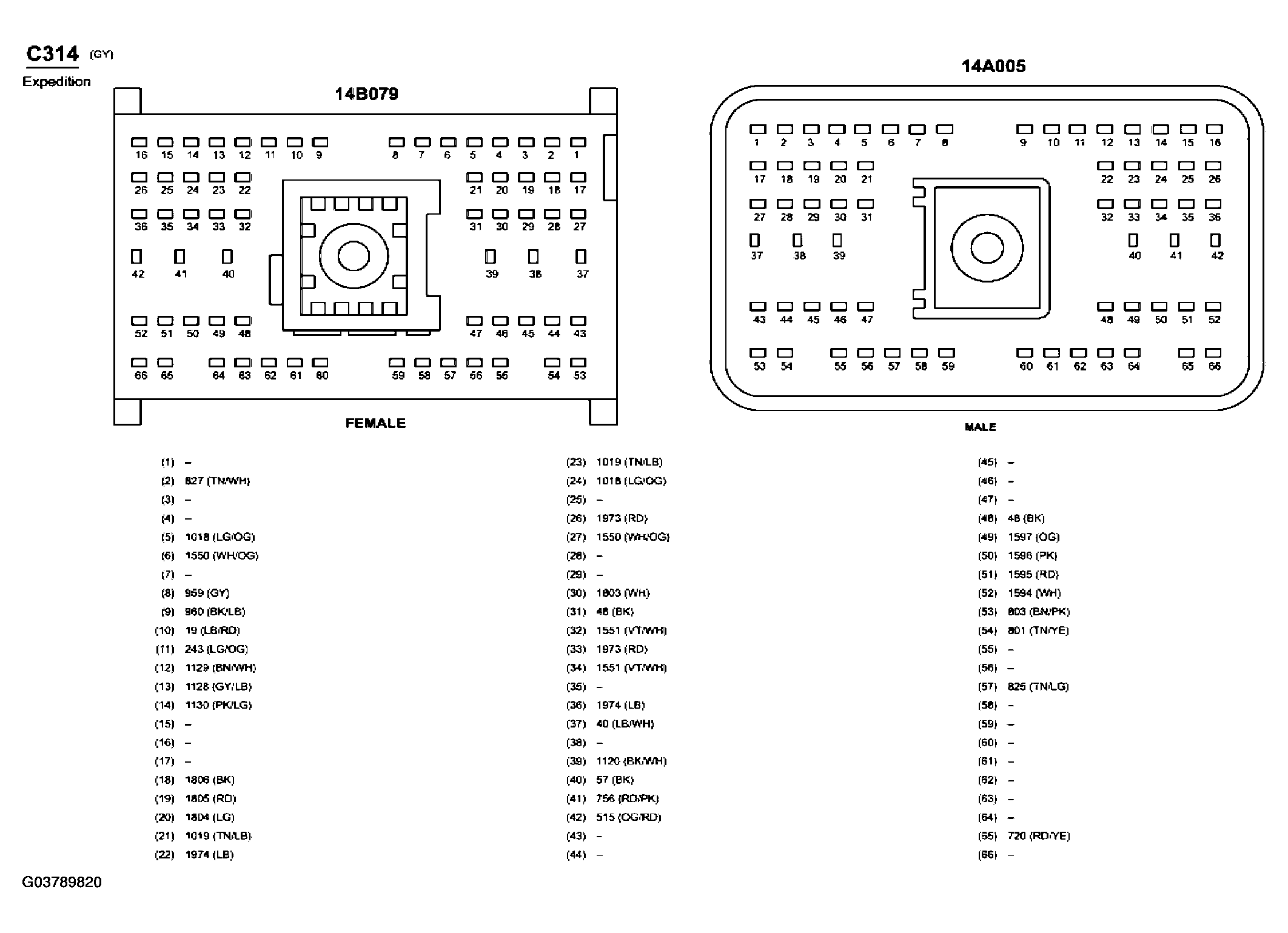

Fig 1: Inline Connector End View (C314)

G03789820

Courtesy of FORD MOTOR CO.
