Pinpoint Test C: No Communication With The Four-Wheel Drive (4WD) Control Module

WARNING: This page is about a different variant/trim than selected.

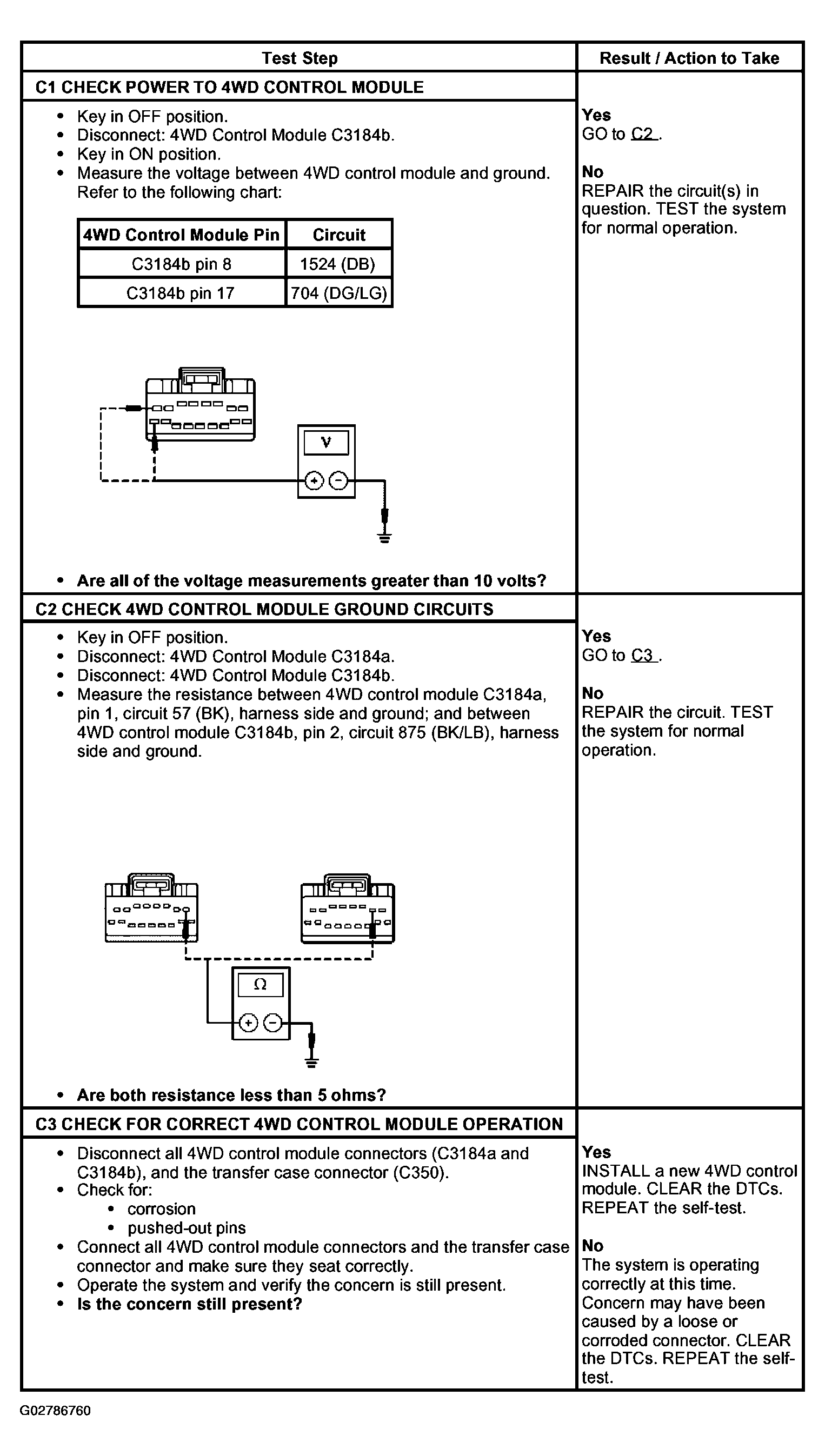

Fig 1: Pinpoint Test C: No Communication With Four-Wheel Drive Control Module
G02786760Courtesy of FORD MOTOR CO.
