Removal and Installation

WARNING: This page is about a different variant/trim than selected.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .

NOTE: The air suspension control module is mounted to the lower left side of the dash above the parking brake control.

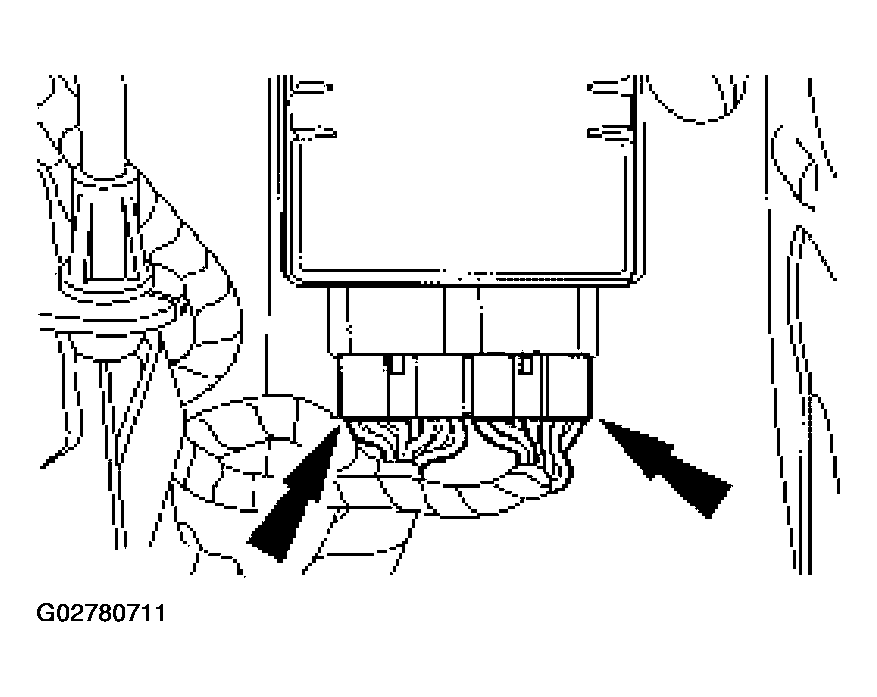

Fig 1: Disconnecting Electrical Connectors

Courtesy of FORD MOTOR CO.

Disconnect the electrical connectors.
Pull back the dash padding to expose the module mounting nuts.

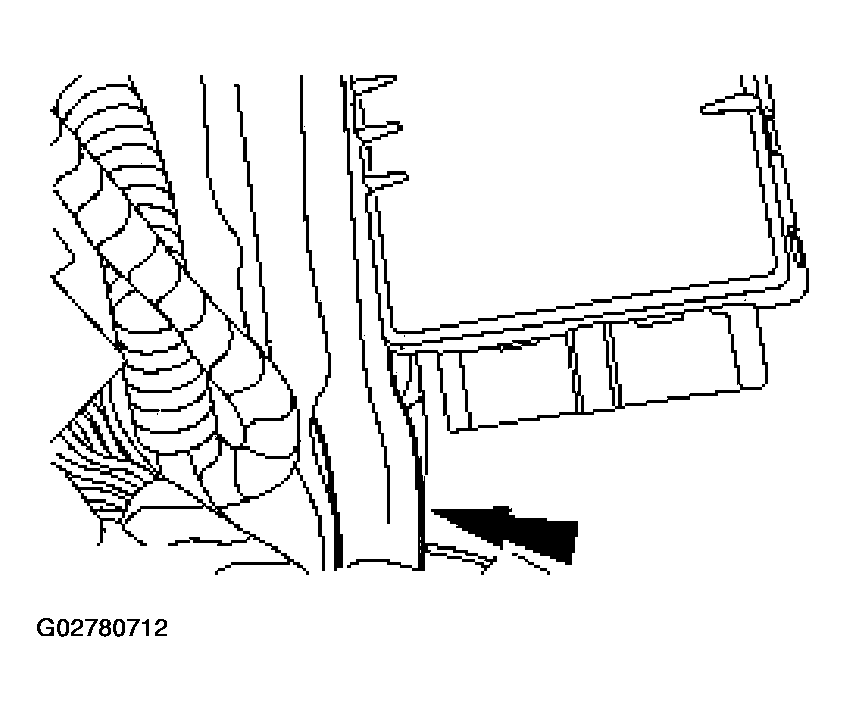

Fig 2: Exposing Module Mounting Nuts
Courtesy of FORD MOTOR CO.
Remove the air suspension control module nuts.

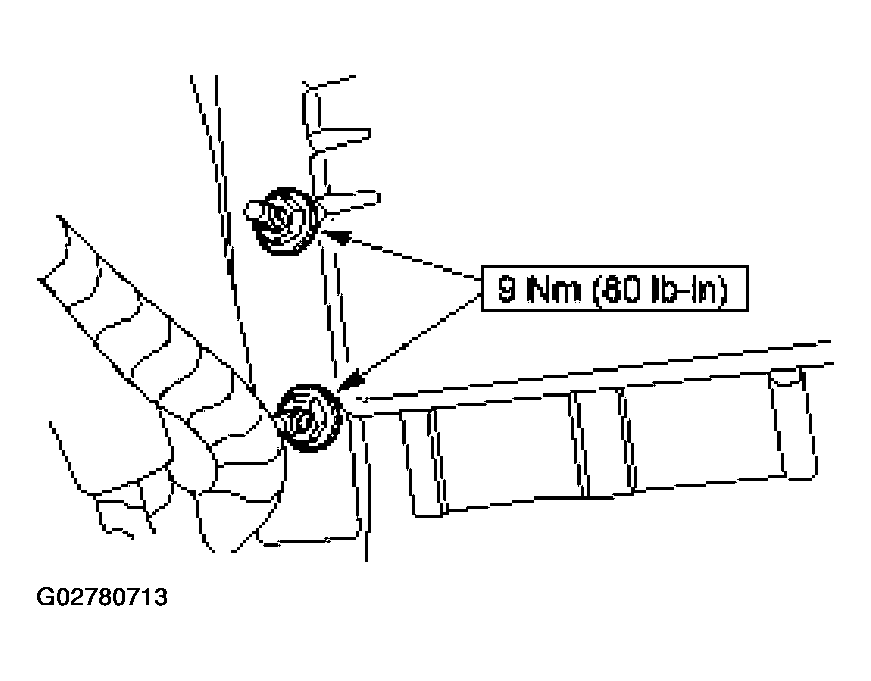

Fig 3: Removing Air Suspension Control Module Nuts
Courtesy of FORD MOTOR CO.

NOTE: The air suspension control module is calibrated with information from the ride height sensor. A new or exchanged air suspension control module requires that the ride height adjustment calibration and pneumatic test be carried out. For additional information, refer to CLEARING DTC C1990 OR C1991 .

To install, reverse the removal procedure.
