Air Line Repair

WARNING: This page is about a different variant/trim than selected.
  1. Cut the line at the damaged area.
  2. Trim the sleeve material from both ends of the damaged line.

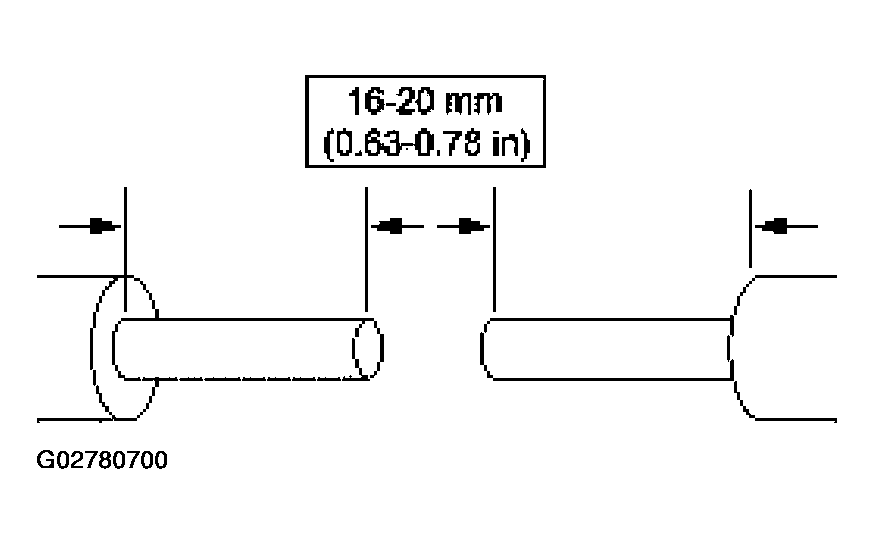

    Fig 1: Trimming Sleeve Material From Damaged Line
    G02780700Courtesy of FORD MOTOR CO.
  3. Taper both ends of the tube by shaving or sanding it 3 mm (0.11 in) from the tips.

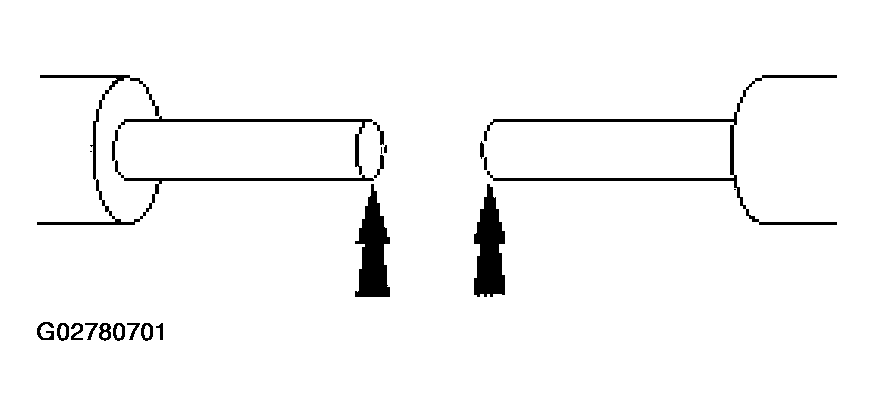

    Fig 2: Taper Ends Of Tube
    G02780701Courtesy of FORD MOTOR CO.
  4. Install the repair filling.

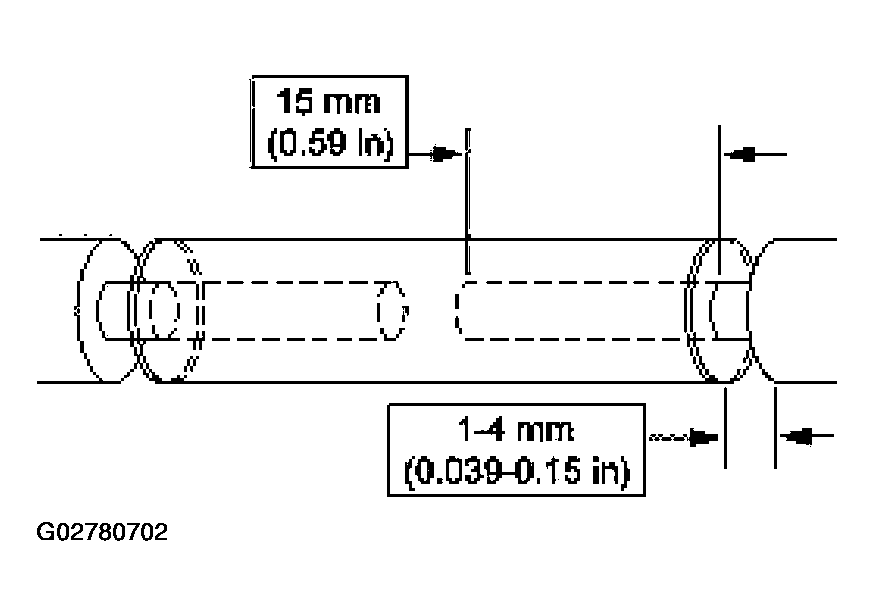

    Fig 3: Installing Repair Filling
    G02780702Courtesy of FORD MOTOR CO.
    5. NOTE: Check system for leaks.
  5. Inflate the air suspension system. For additional information, refer to RIDE HEIGHT ADJUSTMENTS .
