Connecting Rod - Piston Pin Side Clearance

  1. Measure the clearance between the connecting rod and the piston. Verify the measurement is within specification.
    • Refer to the appropriate article in ENGINES for the procedure.
    • If out of specification, install new components as necessary. Refer to the appropriate article in ENGINES for the procedure.

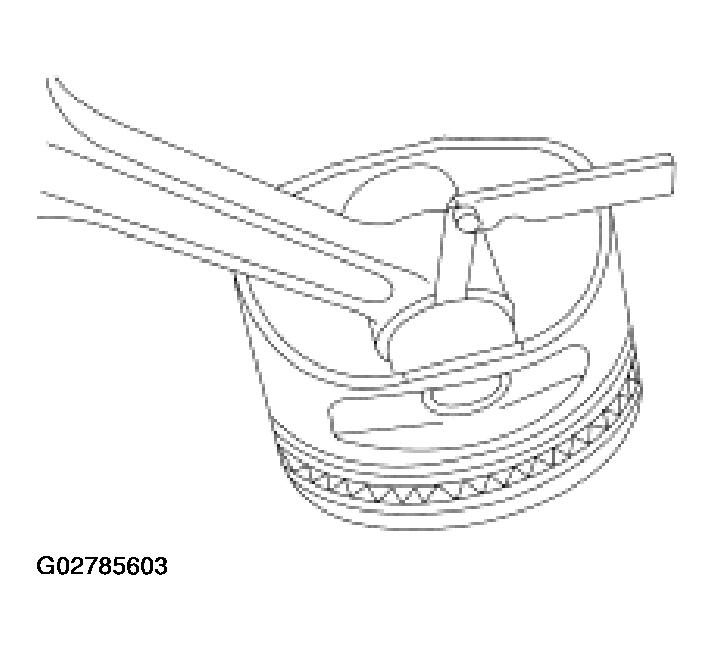

    Fig 1: Measuring Clearance Between Connecting Rod And Piston
    G02785603Courtesy of FORD MOTOR CO.
