In-Vehicle Repair: Flexplate: Installation

  1. Position the flexplate and install the bolts in the sequence shown.

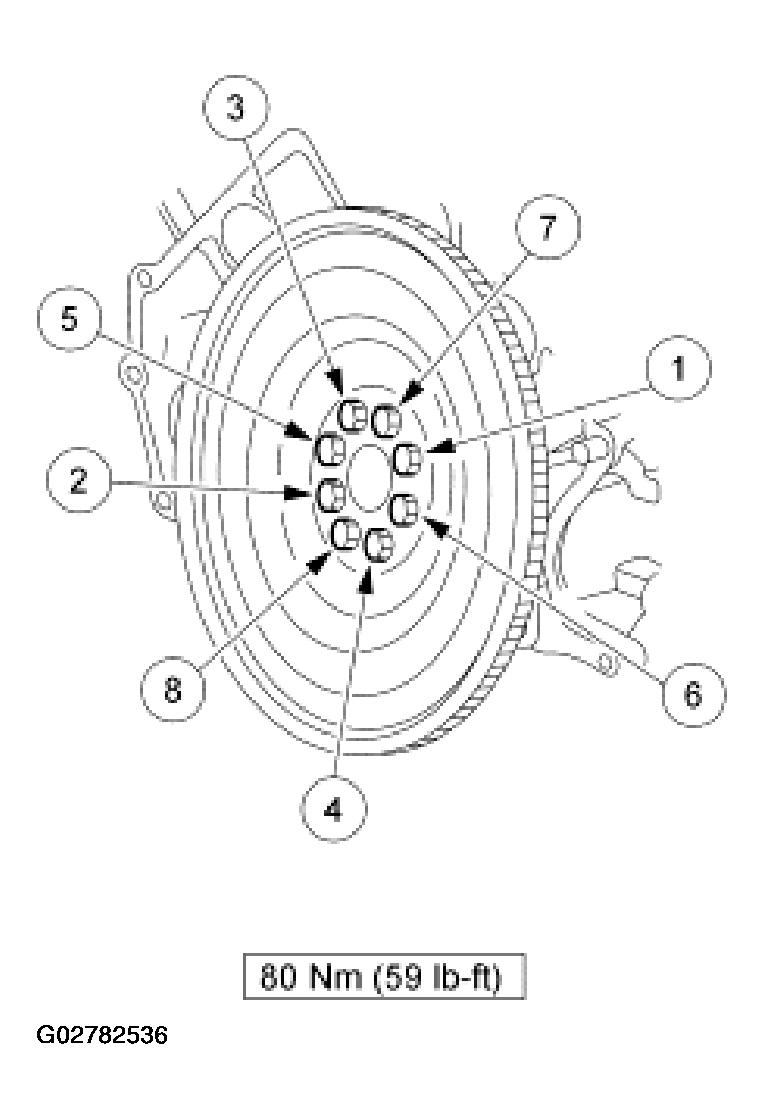

    Fig 1: Installing Bolts In Sequence
    G02782536Courtesy of FORD MOTOR CO.
  2. Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 4R100 .
