Identifying Connector (C270e)
Identifying Connector (C270e)

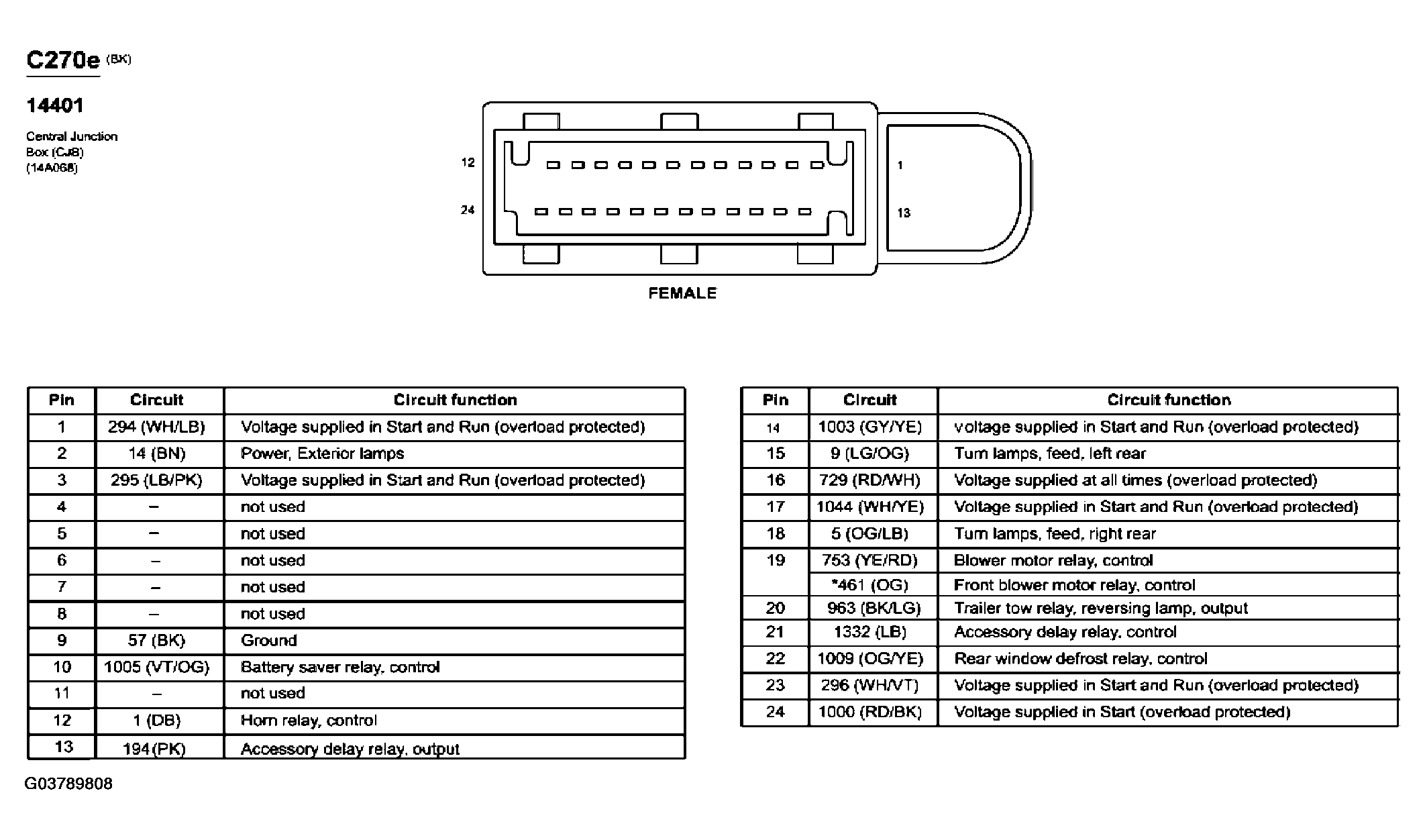

Fig 1: Central Junction Box (CJB) Connector End View (C270e)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
