Removal and Installation

  1. Disconnect the front anti-lock brake sensor electrical connector.
    Fig 1: Disconnecting Front Anti-Lock Brake Sensor Electrical Connector
    G02781401Courtesy of FORD MOTOR CO.
  2. Separate the sensor cable from the clips.
    Fig 2: Separating Sensor Cable From Clips
    G02781402Courtesy of FORD MOTOR CO.
  3. Remove the bolt and the front wheel speed sensor.

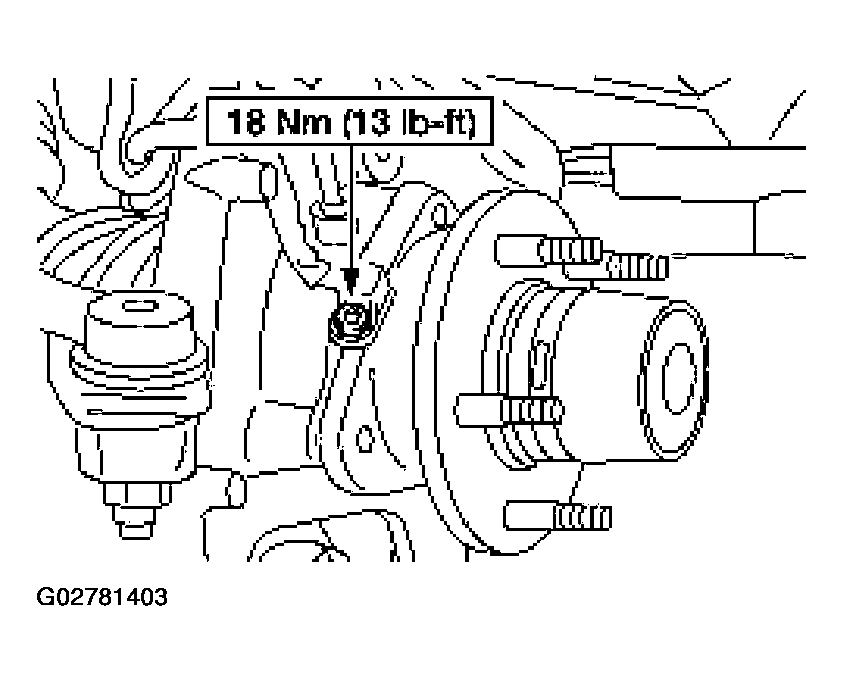

    Fig 3: Removing Bolt And Front Wheel Speed Sensor
    G02781403Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
