Removal and Installation

CAUTION: Do not replace ABS modules installed on vehicles built before February 2003 with those manufactured after February 2003.

NOTE: When installing a new module, it must be calibrated and reconfigured (either by download/upload or uploading the as-built database method).

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage can result.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Disconnect the ABS module electrical connector.

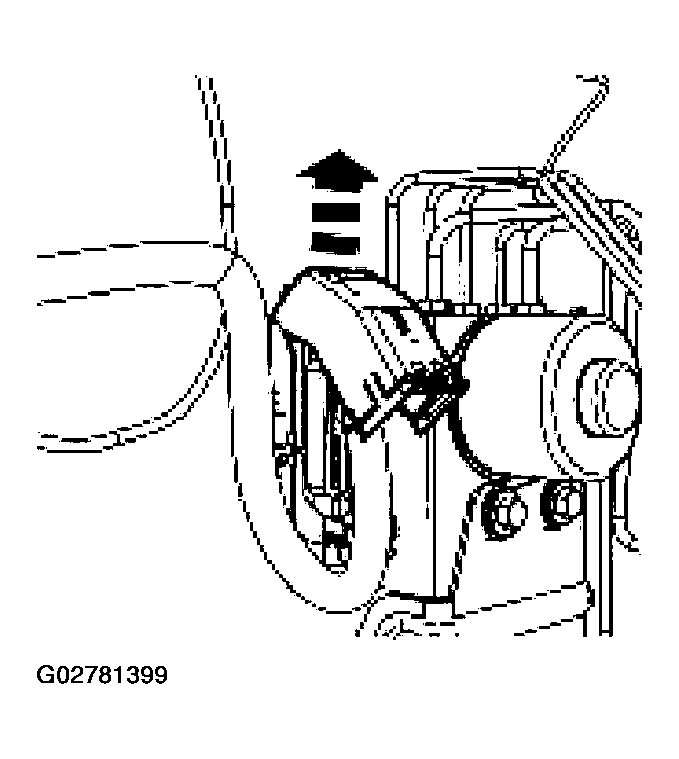

Fig 1: Disconnecting ABS Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the screws and the ABS module.

Fig 2: Removing Screws And ABS Module
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
