Lumbar Control Switch: Removal

WARNING: The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.

WARNING: To reduce the risk of personal injury, do not use any memory saver devices.

NOTE: If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.

NOTE: The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.

NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.

Remove the 40 percent seat and depower the SRS. For additional information, refer to FRONT SEAT - 40 PERCENT .

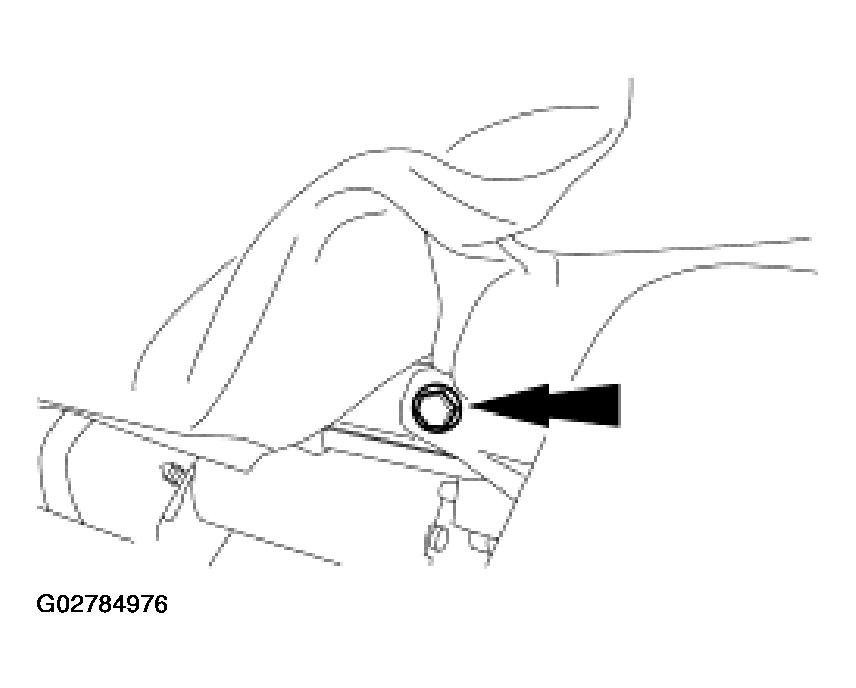

Access and remove the front side shield screw.

Fig 1: Removing Front Side Shield Screw
Courtesy of FORD MOTOR CO.

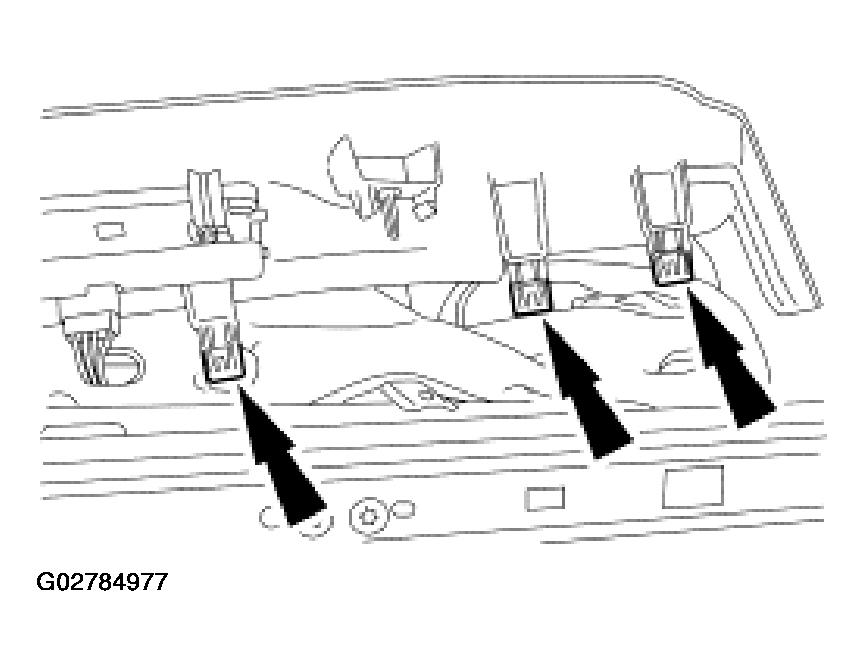

Pull out from the bottom and rear side of side shield to release the three retainer clips.

Fig 2: Releasing Three Retainer Clips
Courtesy of FORD MOTOR CO.

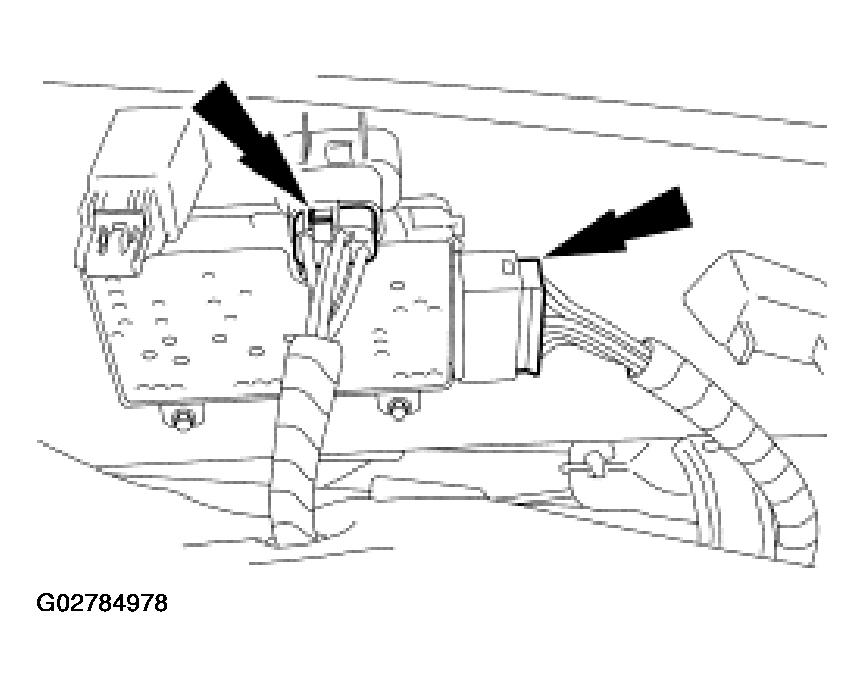

Disconnect the power lumbar switch and 8-way power seat switch electrical connectors.

Fig 3: Disconnecting Power Lumbar Switch And 8-Way Power Seat Switch Electrical Connectors
Courtesy of FORD MOTOR CO.

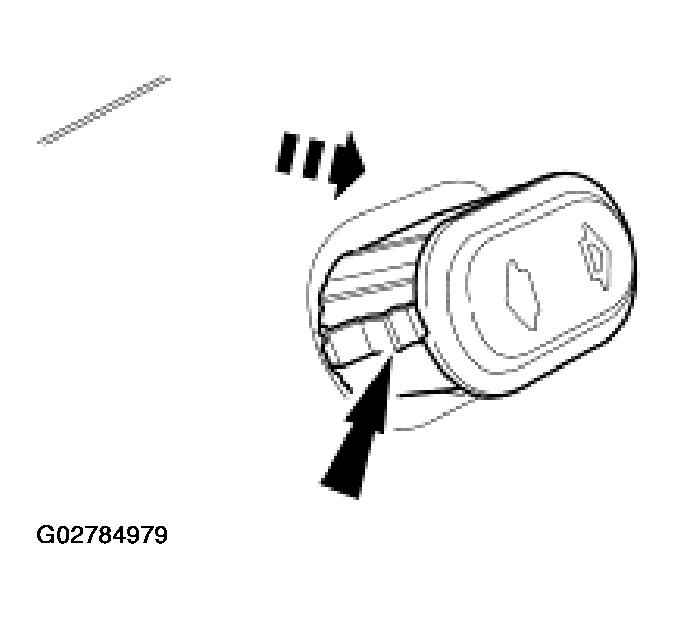

Pinch retainer in and push from the rear of power lumbar switch to remove the switch from the side shield.

Fig 4: Removing Switch From Side Shield
Courtesy of FORD MOTOR CO.
