Removal and Installation

Remove the liftgate trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Position the watershield aside.

CAUTION: Be careful not to kink the liftgate latch control cable while disconnecting it from the latch.

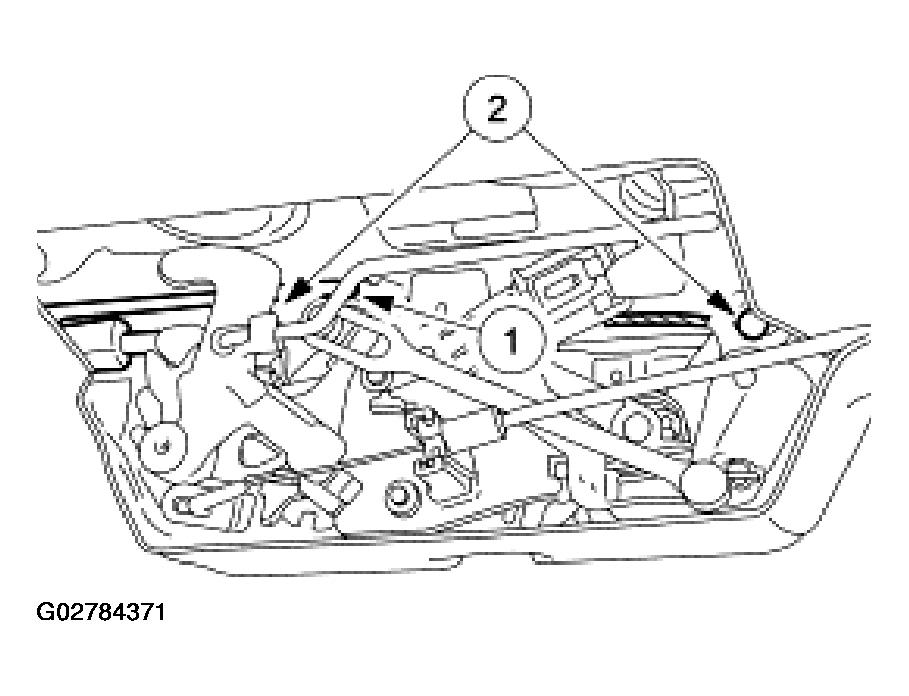

Fig 1: Disconnecting Liftgate Latch

Courtesy of FORD MOTOR CO.

Disconnect the liftgate latch.
1. Release the actuating rod.
2. Disconnect the liftgate latch control cable.
Remove bolts and position the liftgate remote control aside.

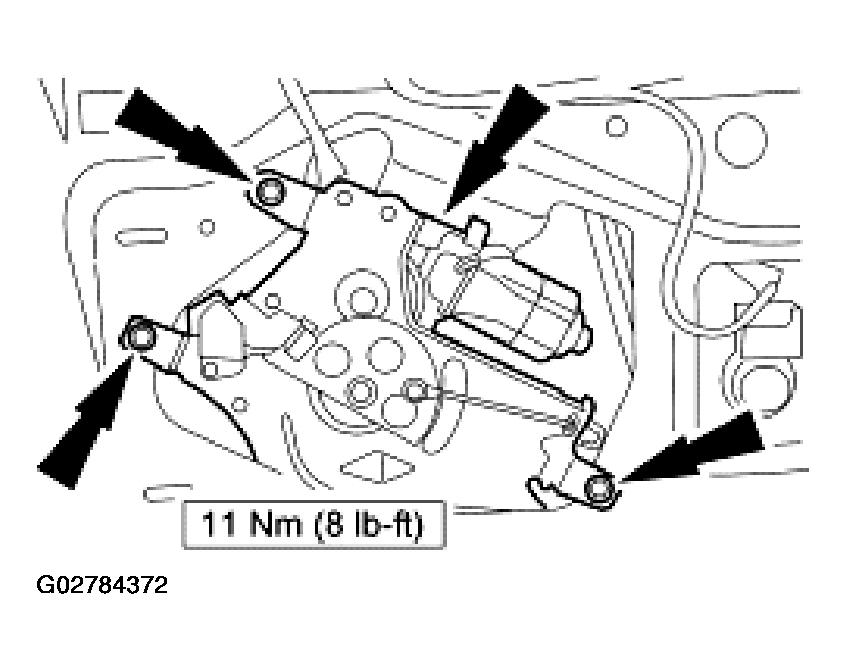

Fig 2: Removing Bolts And Positioning Liftgate Remote Control Aside
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the liftgate latch remote control.

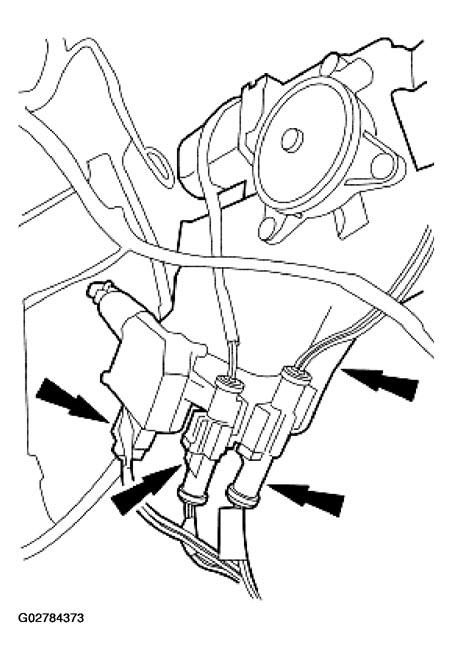

Fig 3: Disconnecting Electrical Connectors And Removing Liftgate Latch Remote Control
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
