Removal and Installation

Remove the exterior mirror. For additional information, refer to REAR VIEW MIRRORS .
Disconnect the electrical connector.

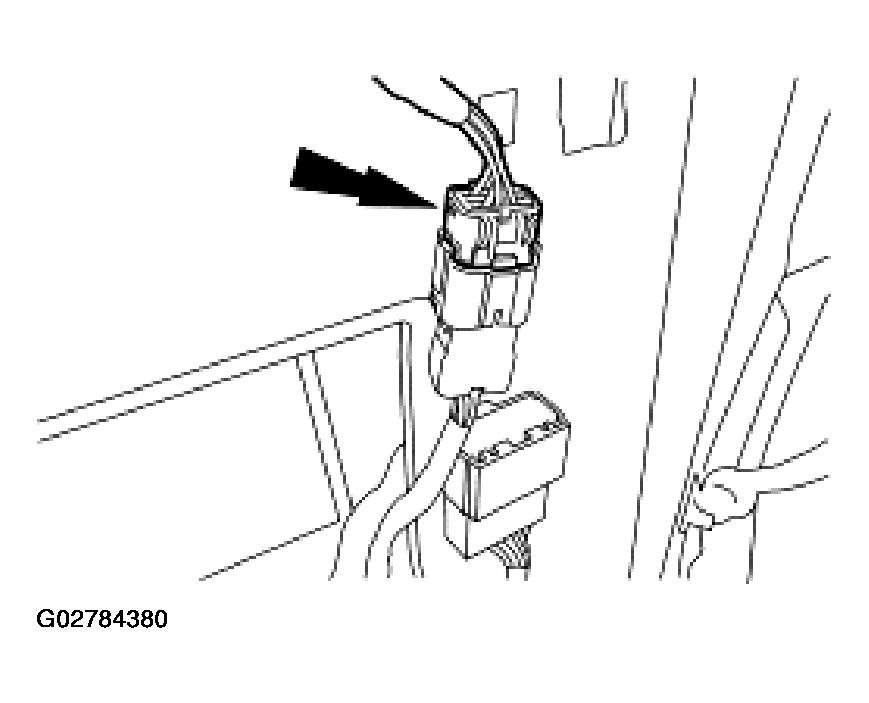

Fig 1: Disconnecting Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the front door window glass. For additional information, refer to GLASS, FRAMES AND MECHANISMS .

CAUTION: Damage to the base molding may occur during the removal procedure.

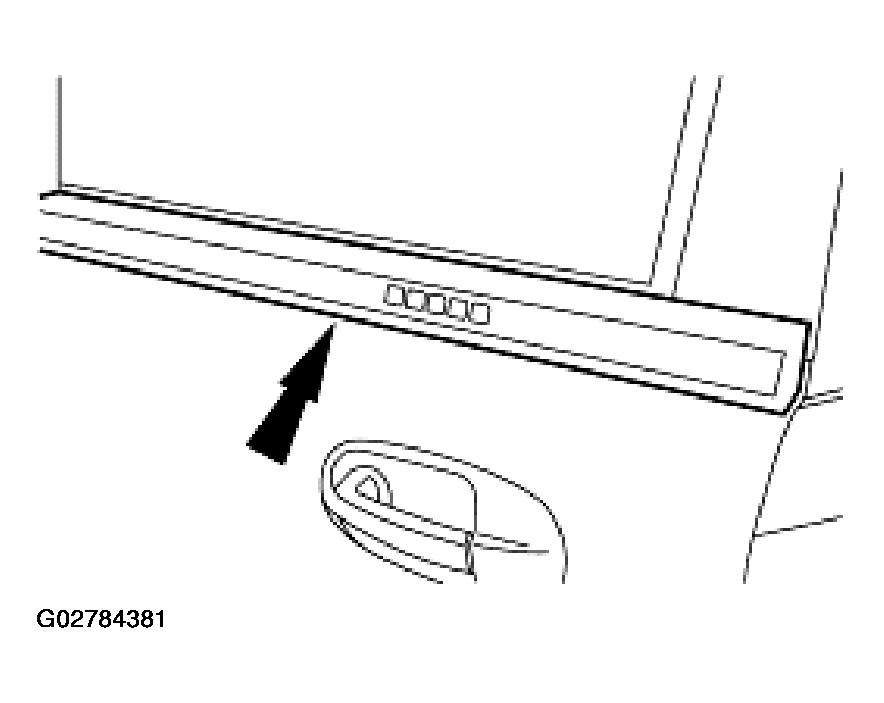

Fig 2: Removing Front Door Window Base Molding

Courtesy of FORD MOTOR CO.

Remove the front door window base molding.
Remove the keyless entry keypad.

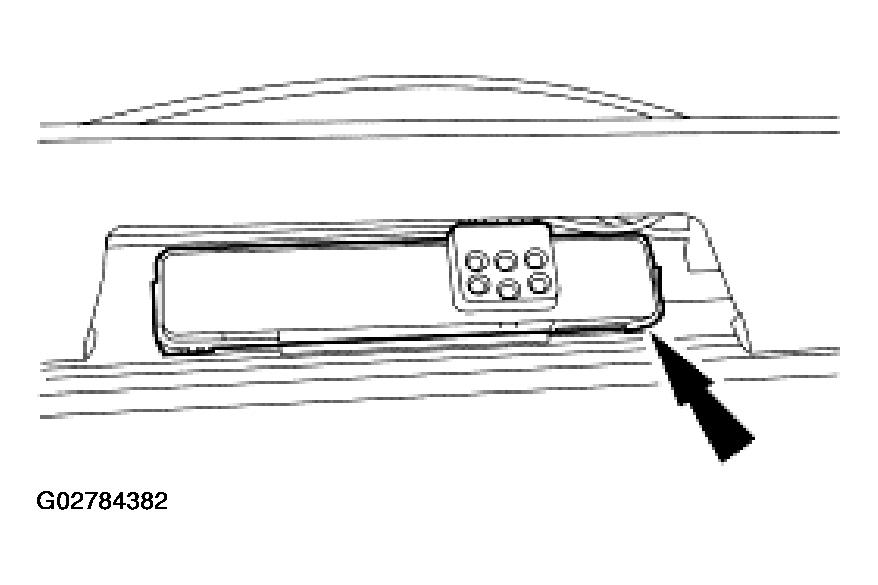

Fig 3: Removing Keyless Entry Keypad
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
