Home >> Lincoln >> 2004 >> Navigator RWD >> Repair and Diagnosis >> Accessories & Equipment >> Cruise Control Systems >> Speed Control >> Diagnosis And Testing >> Speed Control >> Pinpoint Test >> Pinpoint Test F: Flash Code 2 - Brake Pedal Position (BPP) Switch Circuit Failure

Pinpoint Test F: Flash Code 2 - Brake Pedal Position (BPP) Switch Circuit Failure

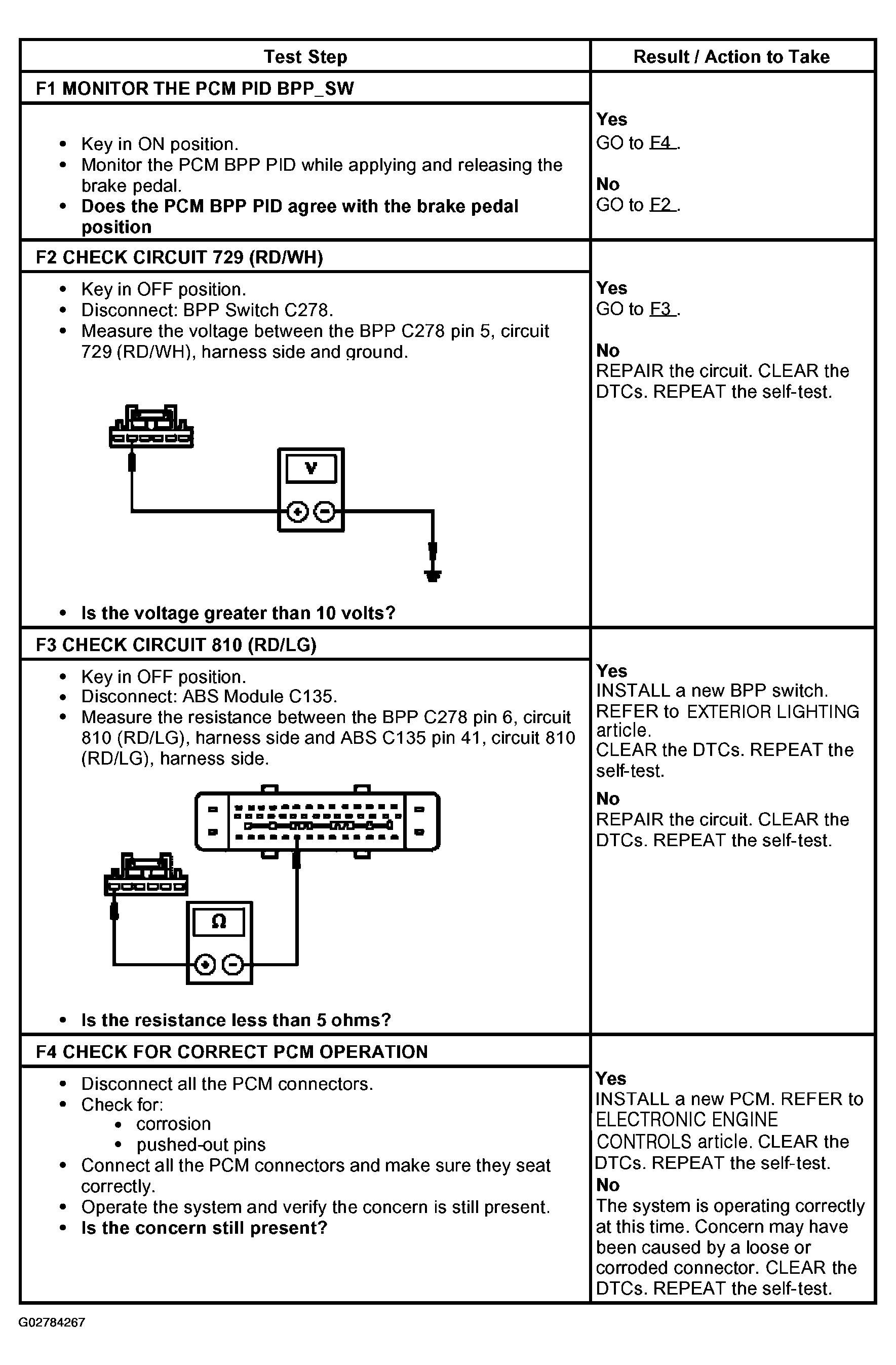

Fig 1: Pinpoint Test F: Flash Code 2 - Brake Pedal Position Switch Circuit Failure

G02784267

Courtesy of FORD MOTOR CO.
