Transfer Case - All Models

  1. To install, reverse the removal procedure.
    • Install a new transfer case-to-transmission gasket.
    • Fill the transfer case. For additional information, refer to TRANSFER CASE DRAINING AND FILLING  when refilling the transfer case. Refer to SPECIFICATIONS  for the correct type and quantity of fluid.
    • Tighten the transfer case-to-transmission bolts evenly in a star pattern.

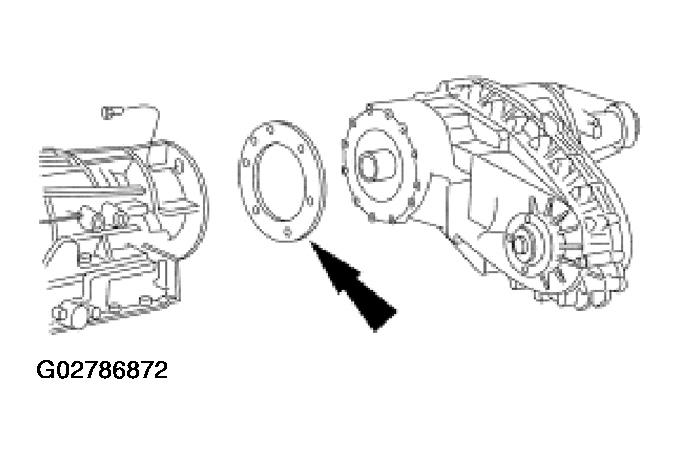

    Fig 1: Installing New Transfer Case-To-Transmission Gasket
    G02786872Courtesy of FORD MOTOR CO.
