Band/Clutch Application Chart B

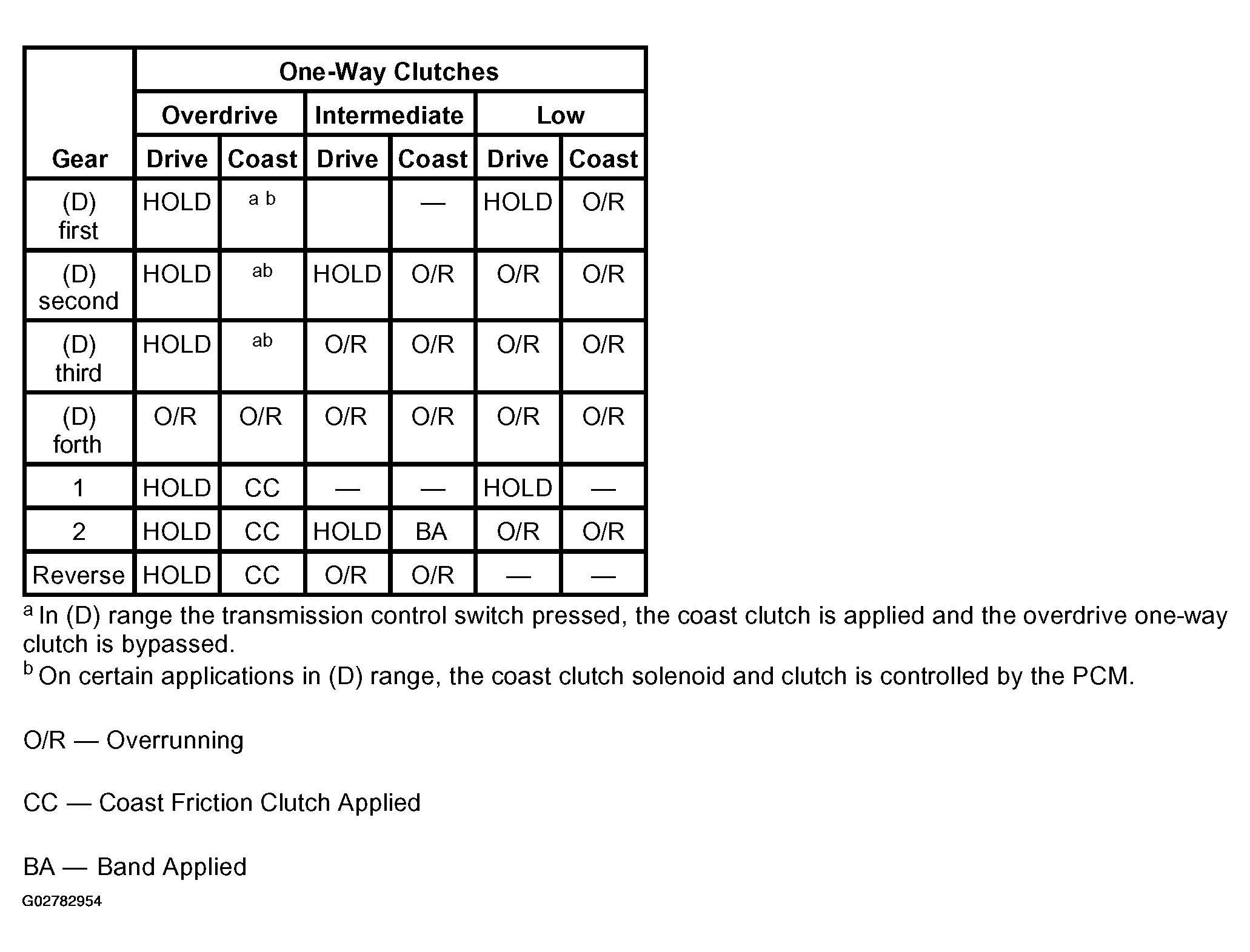

Fig 1: Band/Clutch Application Chart B
G02782954Courtesy of FORD MOTOR CO.
