Transmission Filler Tube: Installation

    NOTE: Coat the O-ring seal at the bottom of the fluid filler tube with transmission fluid. If removed, install the starter wiring harness.

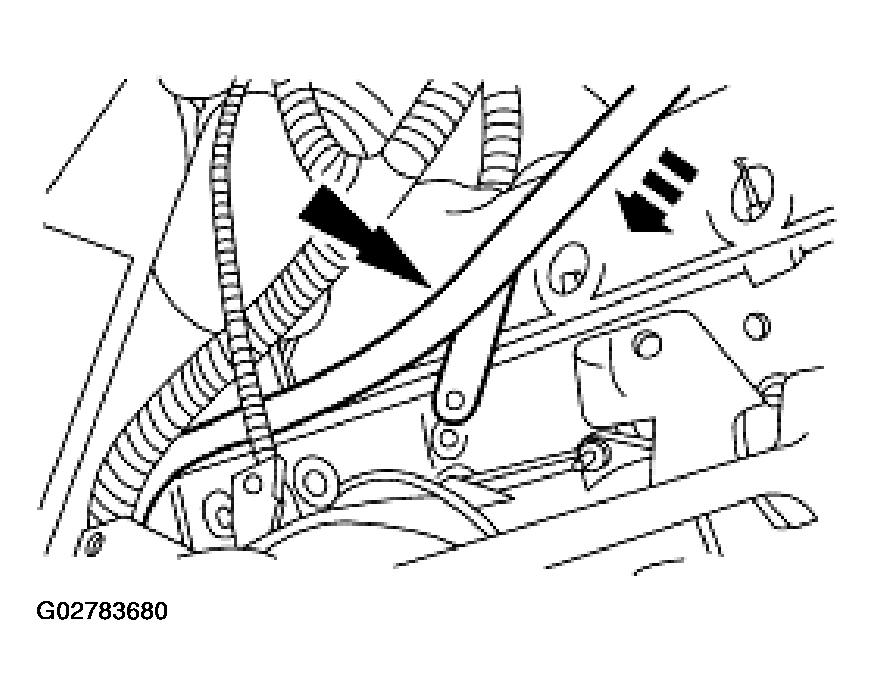

    Fig 1: Installing Fluid Filler Tube
    G02783680Courtesy of FORD MOTOR CO.
  1. Install the fluid filler tube.
  2. Install the fluid filler tube bolt.

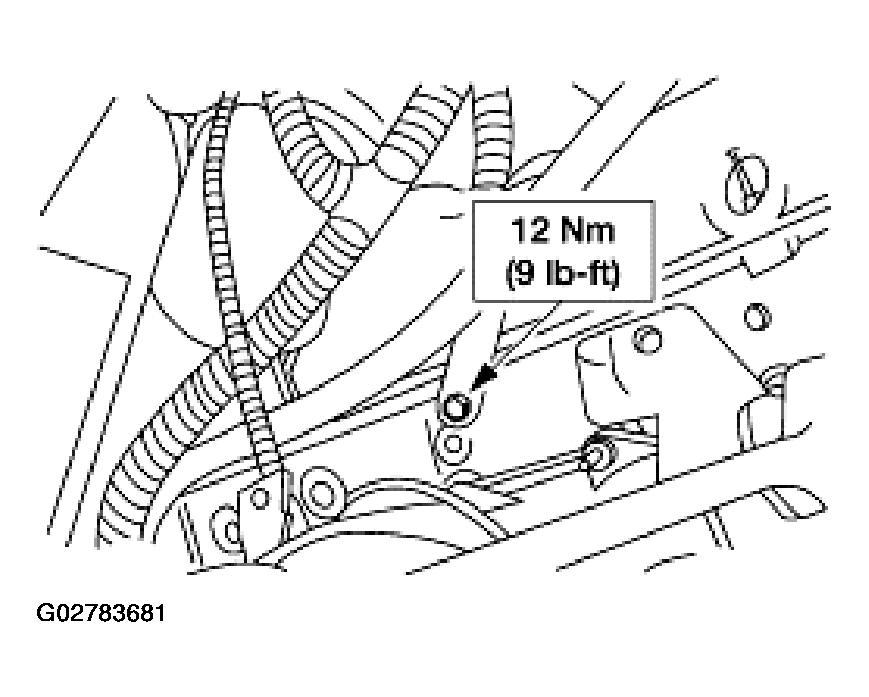

    Fig 2: Fluid Filler Tube Bolt Torque Specification
    G02783681Courtesy of FORD MOTOR CO.
  3. Install the RH front wheel. For additional information, refer to WHEELS & TIRES .
  4. Lower the vehicle.
  5. Install the fluid level indicator.

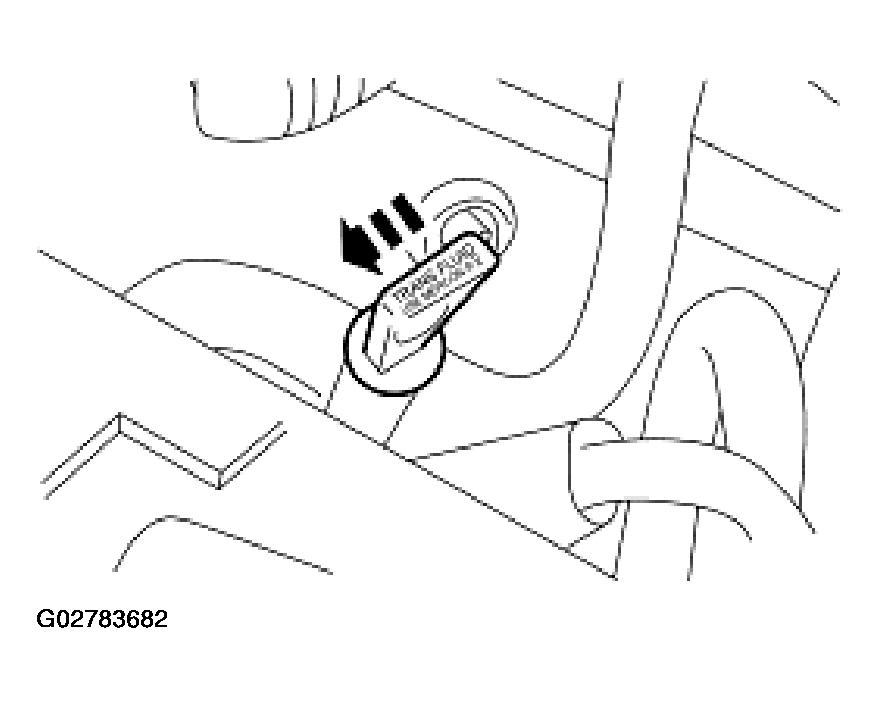

    Fig 3: Installing Fluid Level Indicator
    G02783682Courtesy of FORD MOTOR CO.
