Digital Transmission Range (TR) Sensor: Removal

  1. Position the vehicle on a hoist. Place in NEUTRAL. For additional information, refer to JACKING & LIFTING .
  2. Disconnect the connector.

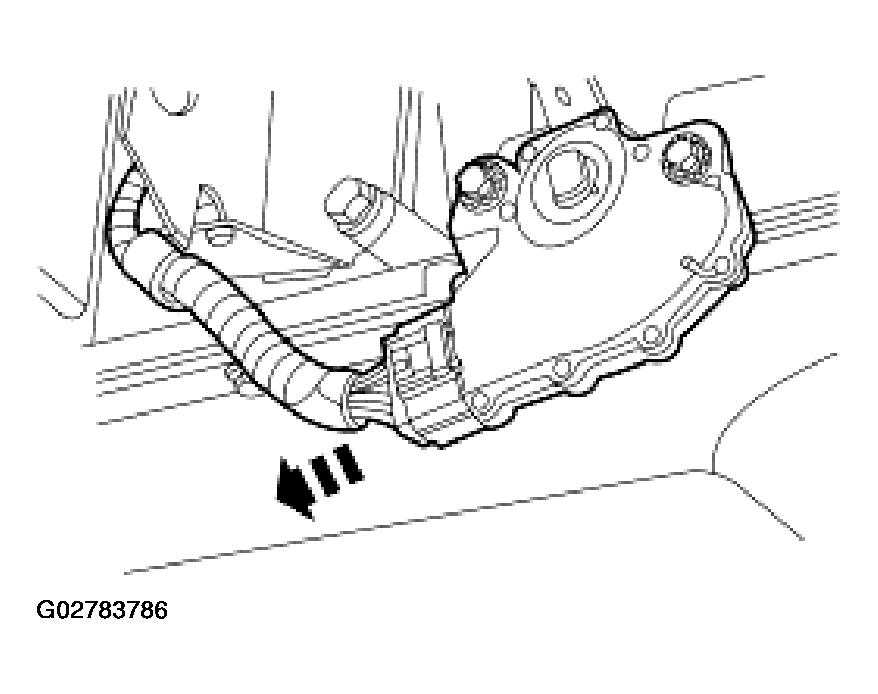

    Fig 1: Disconnecting Connector
    G02783786Courtesy of FORD MOTOR CO.
  3. Disconnect the shift cable at the manual control lever.

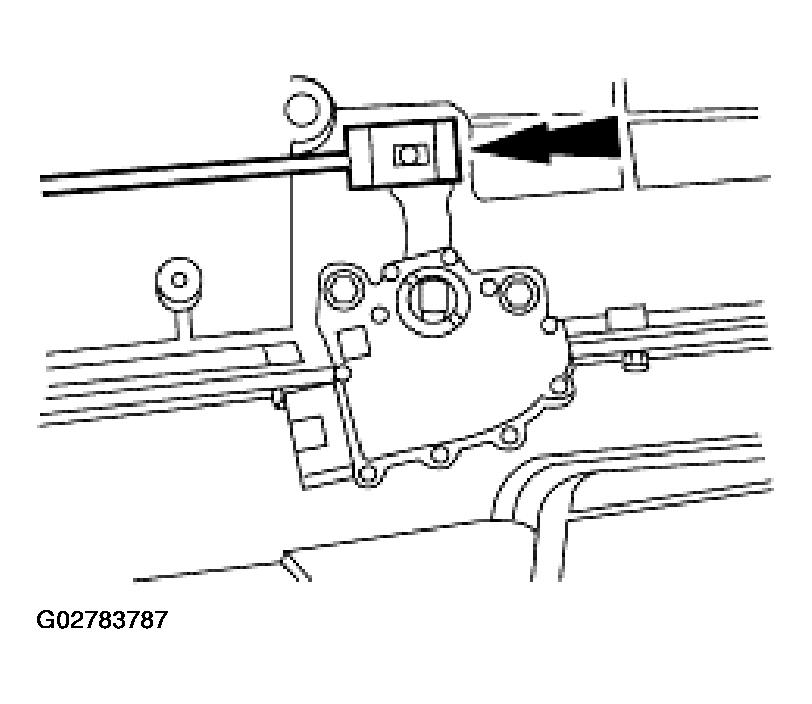

    Fig 2: Disconnecting Shift Cable
    G02783787Courtesy of FORD MOTOR CO.
  4. Remove the digital transmission range (TR) sensor.
    1. Remove the bolts.
    2. Remove the digital transmission range (TR) sensor.

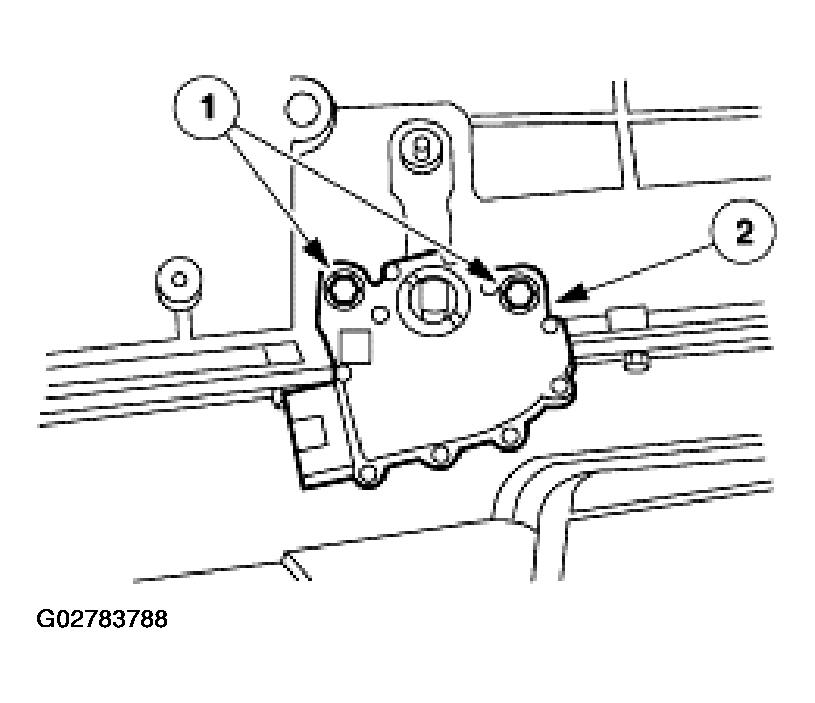

    Fig 3: Removing Digital TR Sensor
    G02783788Courtesy of FORD MOTOR CO.
