Digital Transmission Range (TR) Sensor: Installation

Install the digital TR sensor.
1. Install digital TR sensor.
2. Loosely install the bolts.

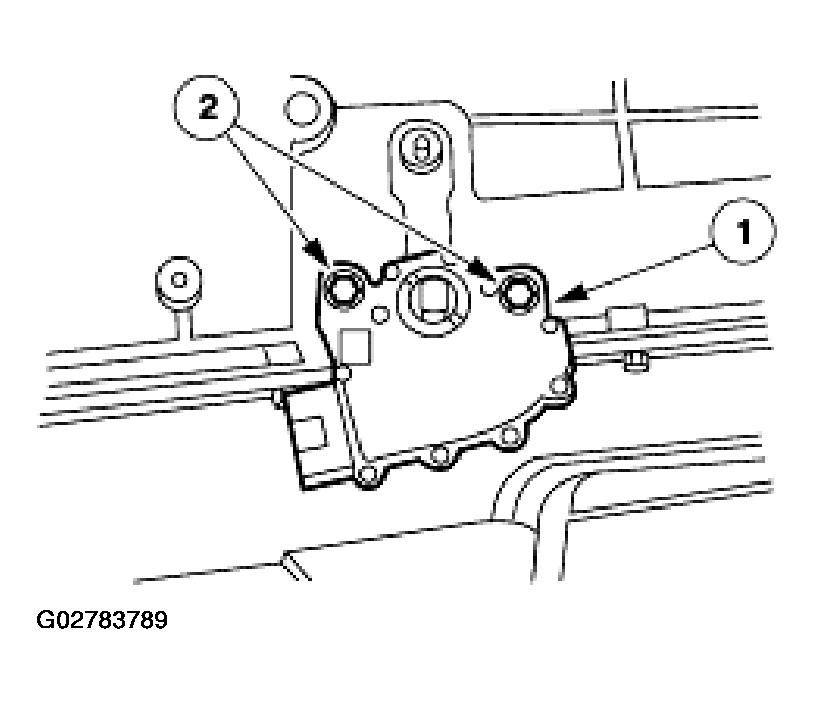

Fig 1: Installing Digital TR Sensor
Courtesy of FORD MOTOR CO.

NOTE: Make sure that the manual control lever is in the NEUTRAL position.

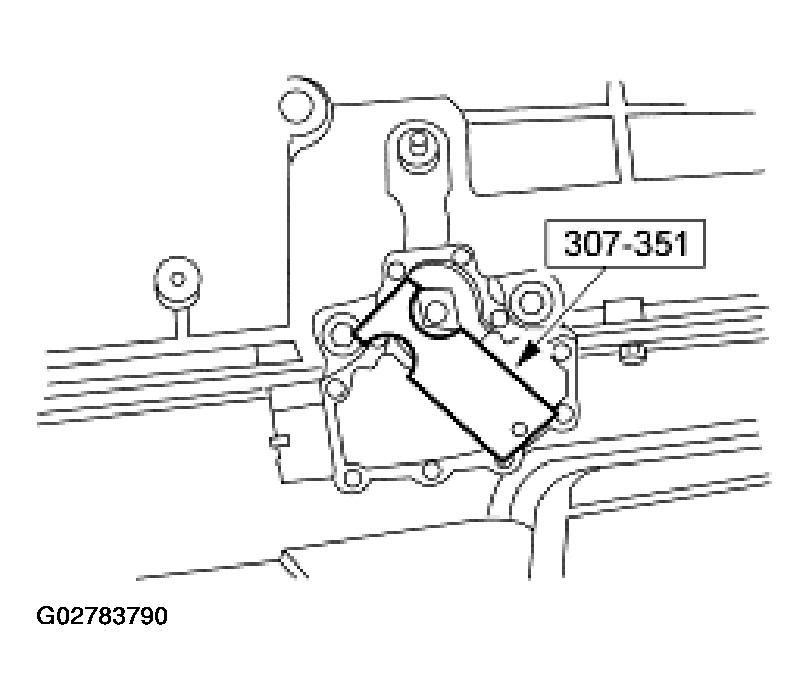

Fig 2: Aligning Digital TR Sensor

Courtesy of FORD MOTOR CO.

Using the special tool, align the digital TR sensor.
Tighten the bolts.

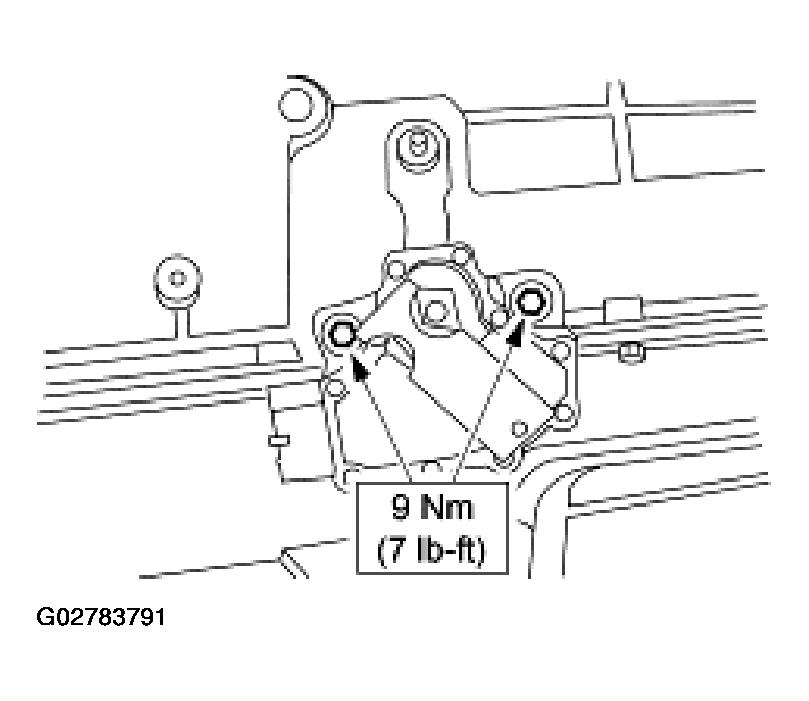

Fig 3: Digital TR Sensor Bolts Torque Specification
Courtesy of FORD MOTOR CO.
Reconnect the shift cable at the manual control lever.

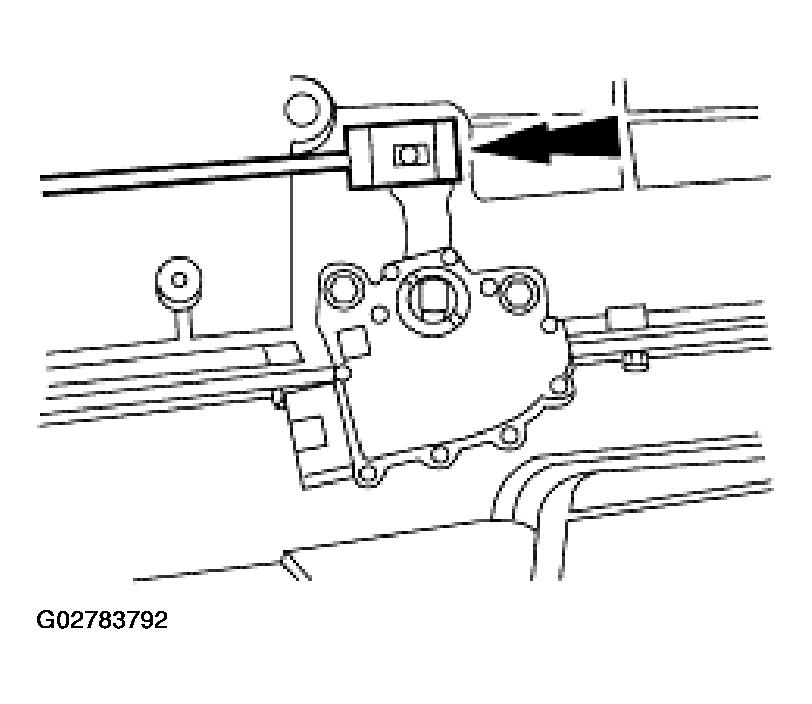

Fig 4: Connecting Shift Cable
Courtesy of FORD MOTOR CO.
Reconnect the connector.

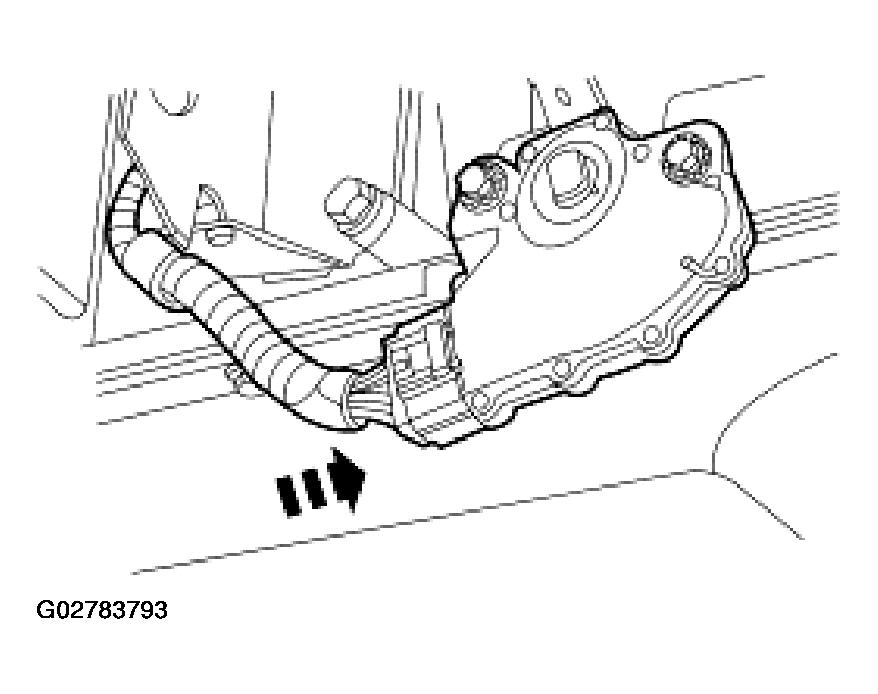

Fig 5: Connecting Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
