Cooler Bypass Valve: Installation

CAUTION: Failure to correctly install the new rubber-coated sealing washers will result in transmission fluid leaks.

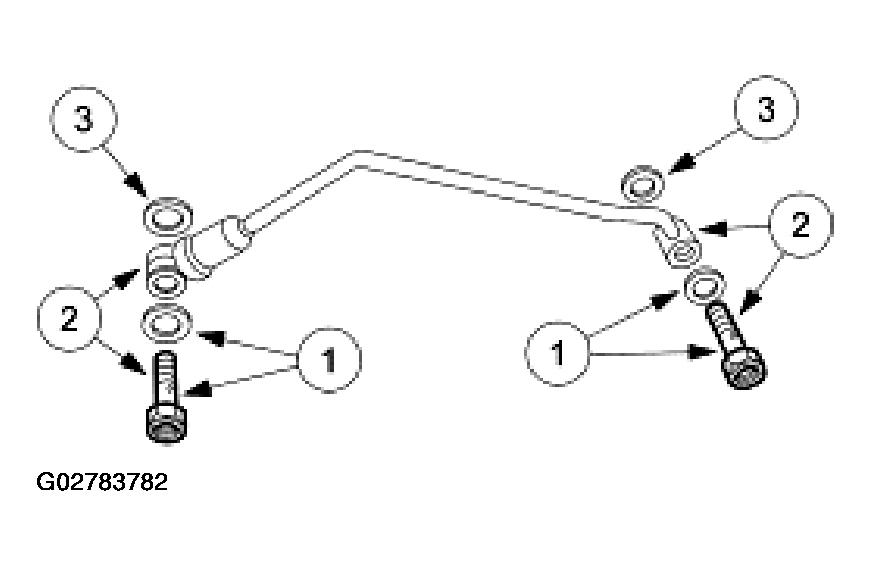

Fig 1: Installing Rubber-Coated Sealing Washers & Cooler Line Case Fittings

Courtesy of FORD MOTOR CO.

Install the new rubber-coated sealing washers and the new cooler line case fittings.
1. Install one rubber-coated sealing washer on each cooler line case fitting.
2. Install both cooler line case fittings into their respective ends of the CBV assembly.
3. Install one rubber-coated sealing washer on each cooler line case fitting.

CAUTION: Make sure the cooler bypass valve (CBV) is correctly backflushed. Use dry compressed air to remove solvent.

CAUTION: If the cooler line case fitting is overtightened, the rubber-coated sealing washers and/or cooler line case fittings can be damaged, causing a transmission fluid leak.

NOTE: The CBV has a check ball in the rear fitting and will only allow flow in one direction. Make sure check ball moves freely.

NOTE: Align the two rubber-coated sealing washers while assembling the rear cooler line case fitting.

Fig 2: Installing CBV Fitting

Courtesy of FORD MOTOR CO.

Install the CBV fitting.

NOTE: The cooler lines must be flushed out at this time.

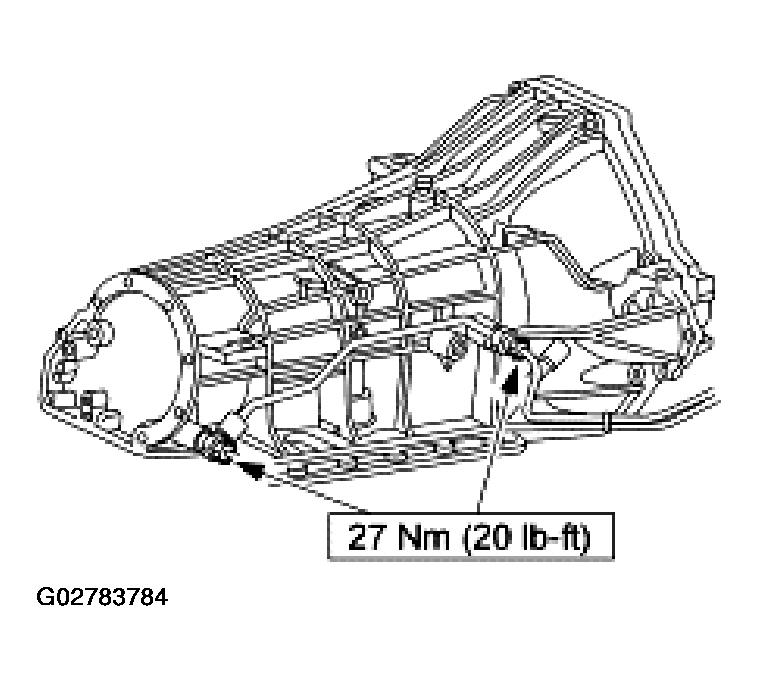

Fig 3: Cooler Tube Nuts Torque Specification

Courtesy of FORD MOTOR CO.

Tighten the cooler tube nuts.
Lower the vehicle.
Fill the transmission with clean automatic transmission fluid. Check for correct operation.
