Cooler Bypass Valve Assembly: Assembly

    CAUTION: Failure to correctly install the new rubber-coated sealing washers will result in transmission fluid leaks.

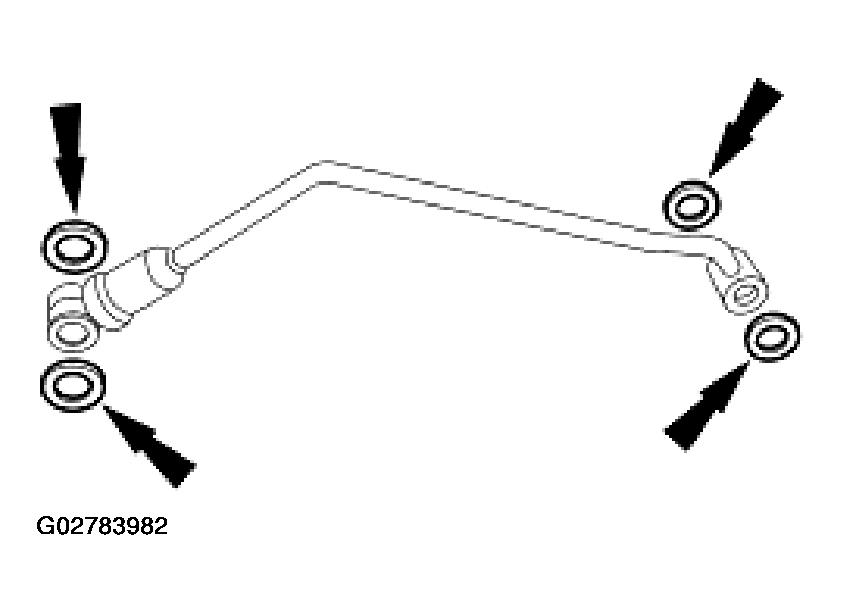

    Fig 1: Installing Rubber-Coated Sealing Washers
    G02783982Courtesy of FORD MOTOR CO.
  1. Install new rubber-coated sealing washers.
  2. Install new cooler line case fittings.

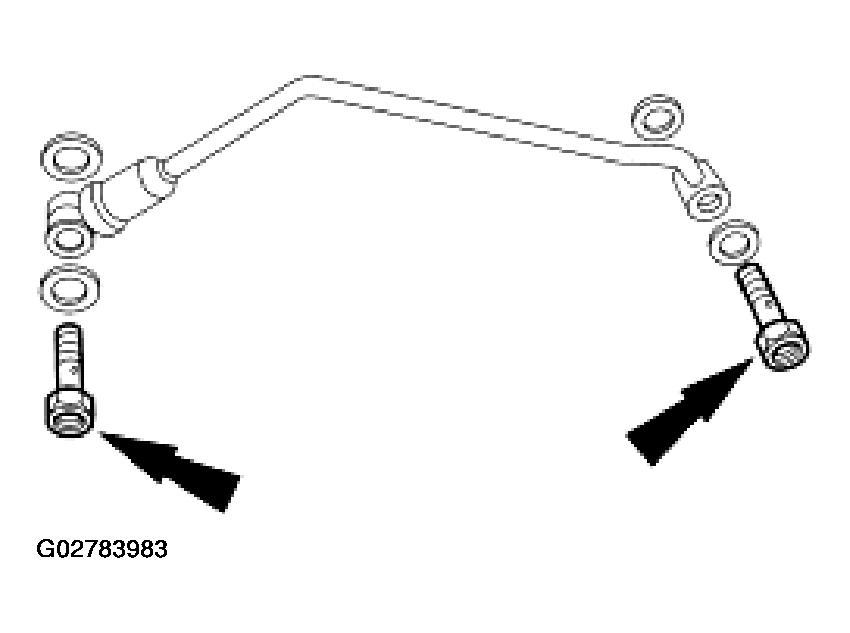

    Fig 2: Installing Cooler Line Case Fittings
    G02783983Courtesy of FORD MOTOR CO.
