Symptom Chart

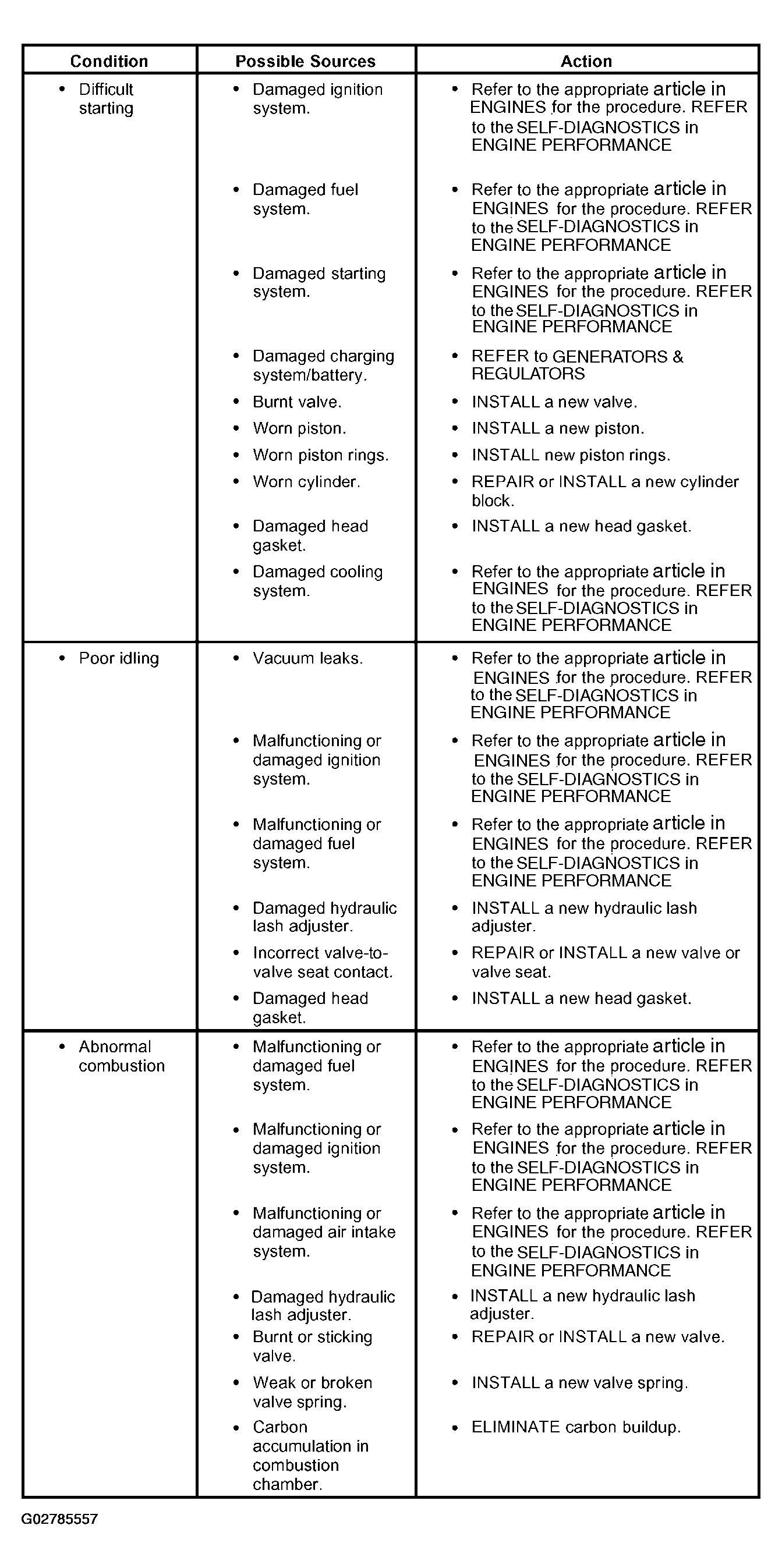

Fig 1: Symptom Chart (1 Of 3)
G02785557Courtesy of FORD MOTOR CO.

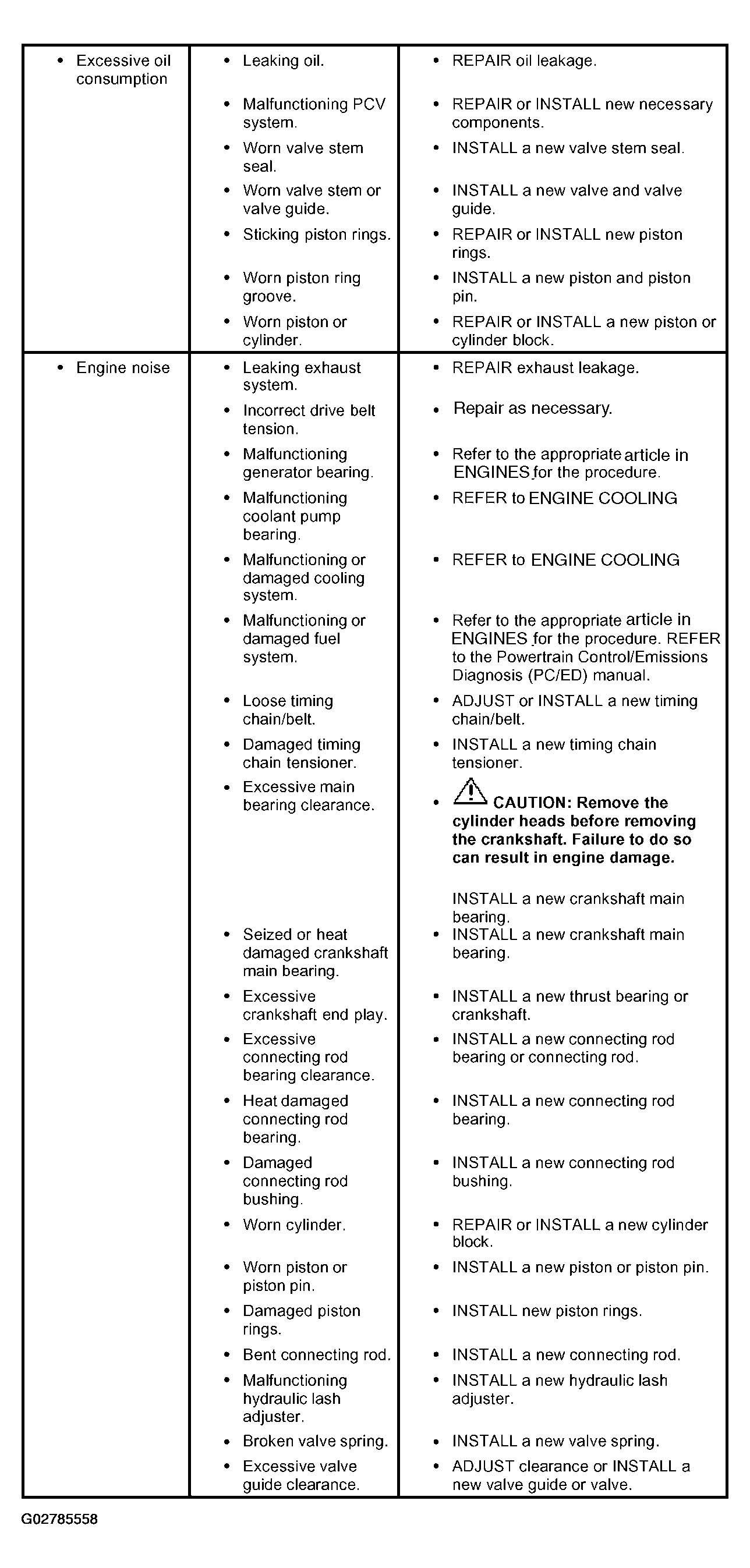

Fig 2: Symptom Chart (2 Of 3)
G02785558Courtesy of FORD MOTOR CO.

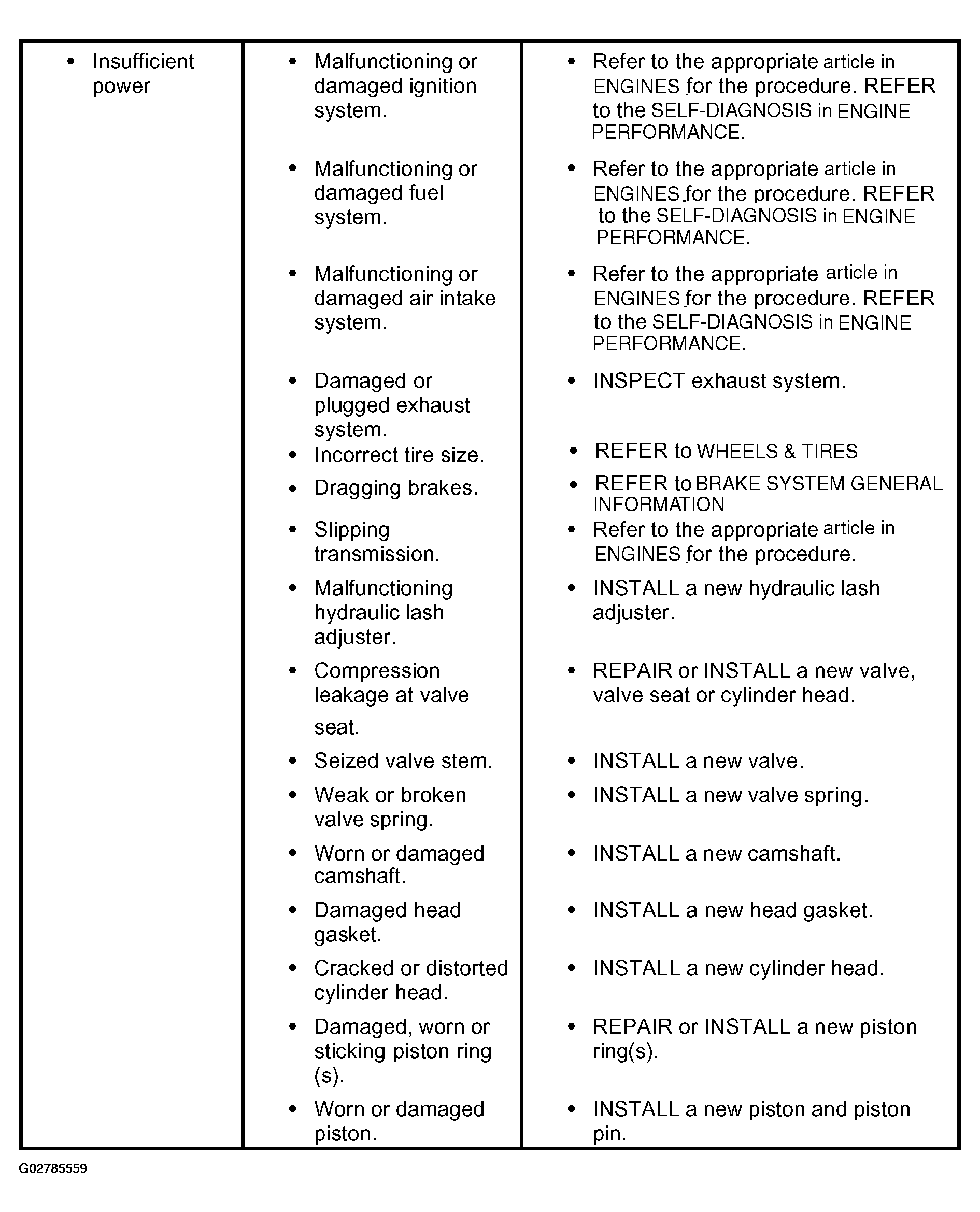

Fig 3: Symptom Chart (3 Of 3)
G02785559Courtesy of FORD MOTOR CO.
