Removal and Installation

NOTE: The lateral and longitudinal accelerometer and the roll rate sensor are located within the same component as the accelerometer.
  1. Remove the front floor console. For additional information, refer INSTRUMENT PANEL AND CONSOLE .
  2. Remove bolts and the accelerometer.

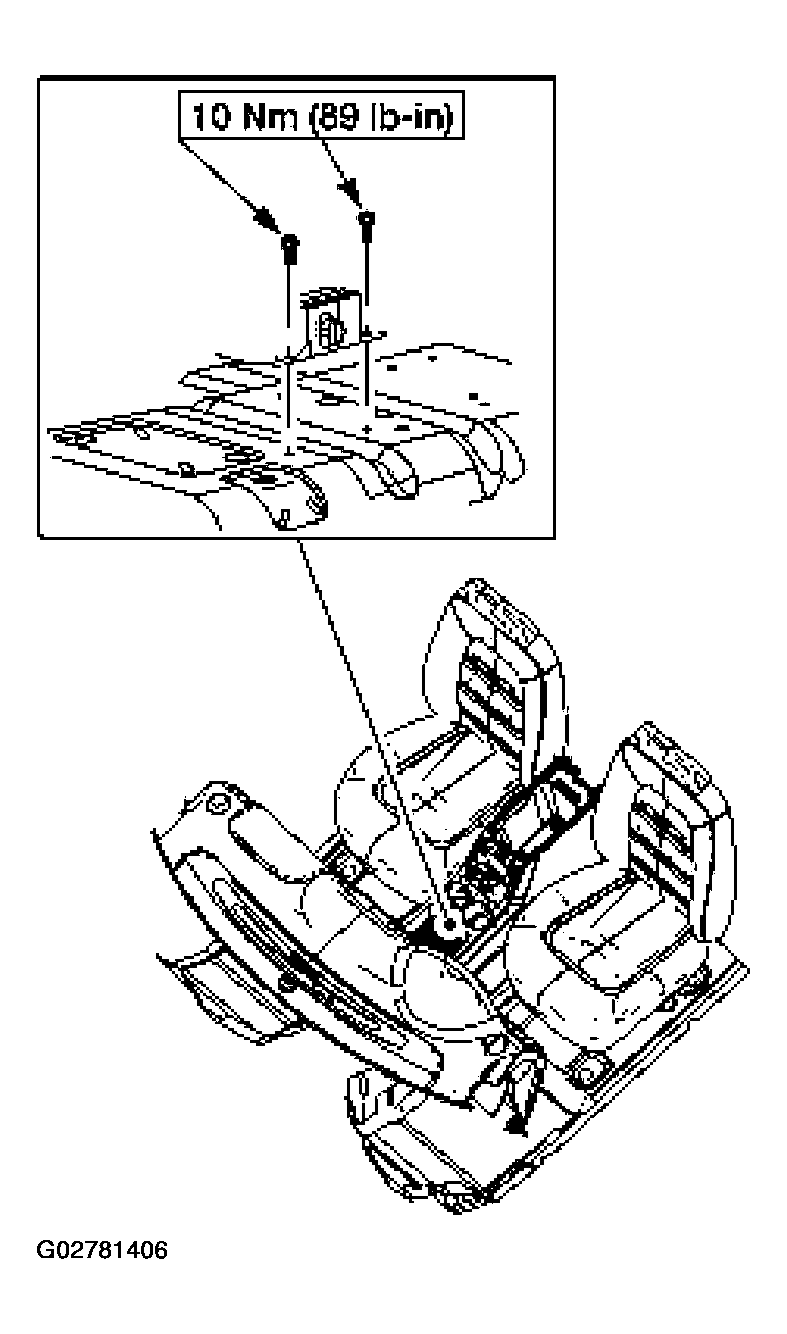

    Fig 1: Removing Bolts And Accelerometer
    G02781406Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
