Symptom Chart
Symptom Chart
NOTE:
Refer to
ANTI-LOCK BRAKES
(Navigator) or
ANTI-LOCK BRAKES
(Expedition) for schematic and connector information.

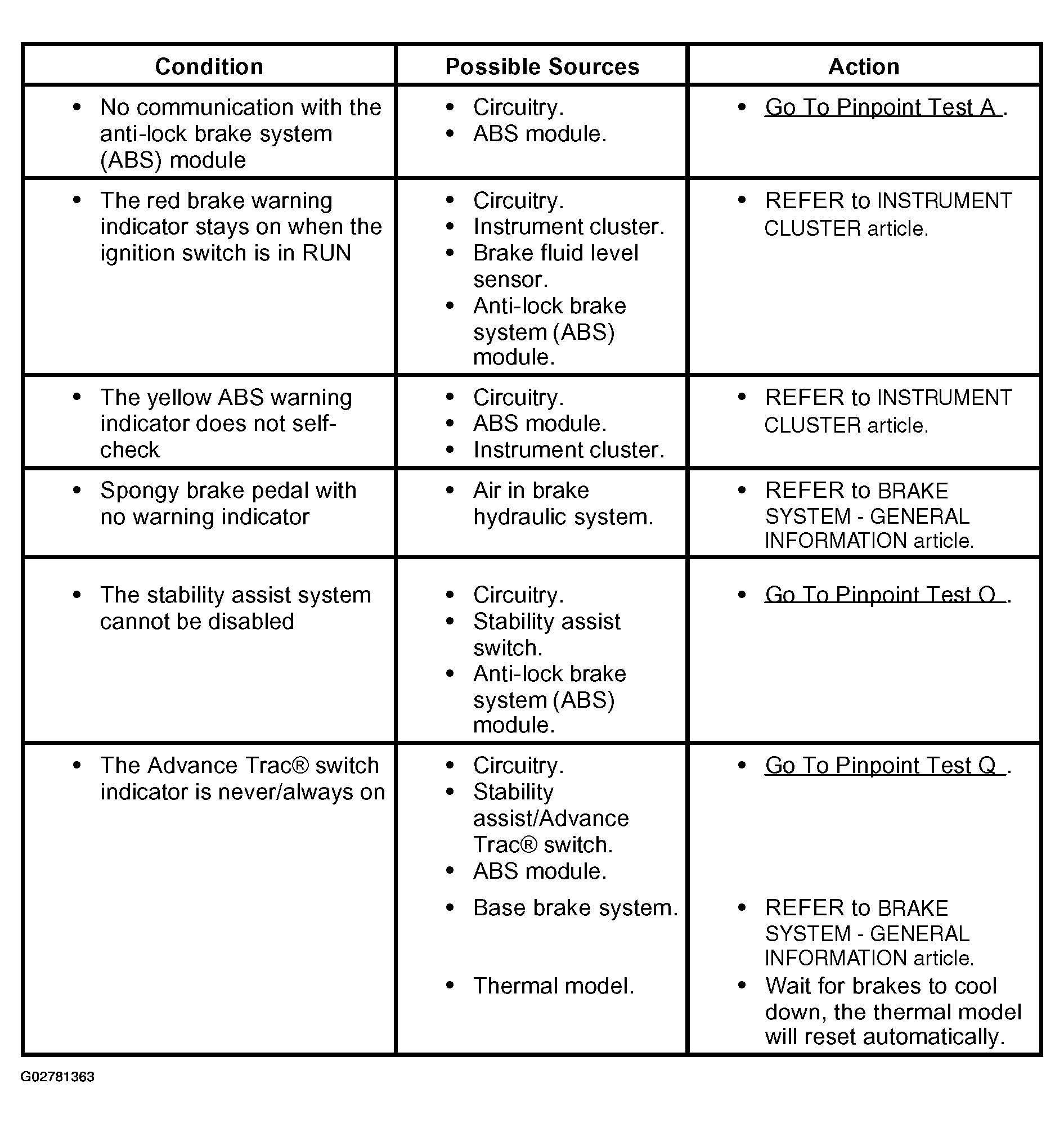

Fig 1: Identifying Symptom Chart
Courtesy of FORD MOTOR CO.
