Removal and Installation

Navigator front

Lift up on the center console armrest.
Remove the center console window control switch panel.
- Remove the pin-type retainer.

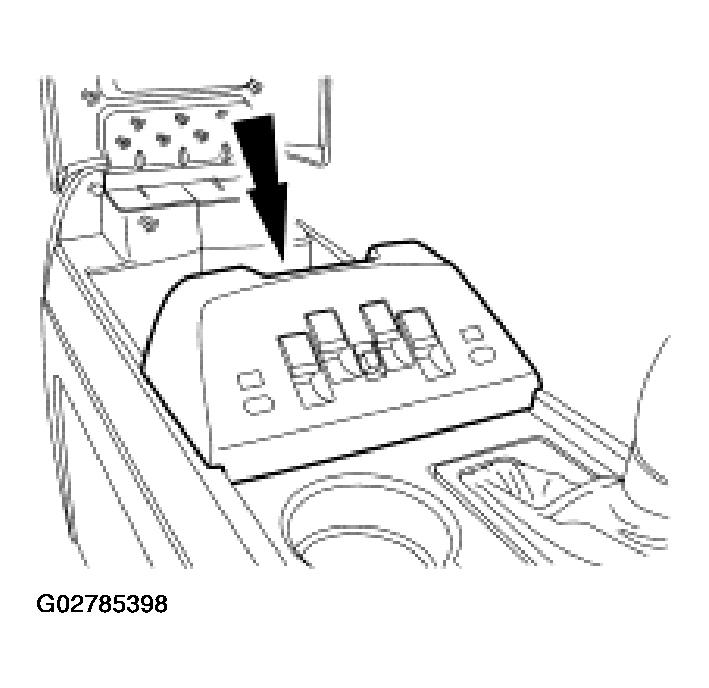

Fig 1: Removing Center Console Window Control Switch Panel
Courtesy of FORD MOTOR CO.
Disconnect the electrical connectors and remove the window control switch.
- Release the locking tabs.

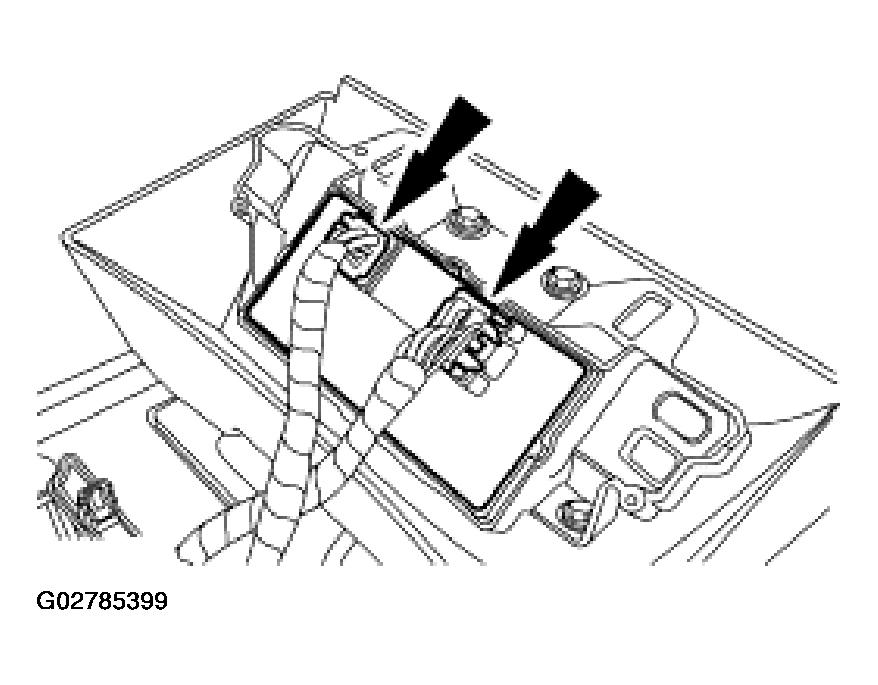

Fig 2: Disconnecting Electrical Connectors And Removing Window Control Switch
Courtesy of FORD MOTOR CO.

Expedition front and Expedition passenger rear

NOTE: Driver side Expedition shown, all others similar.

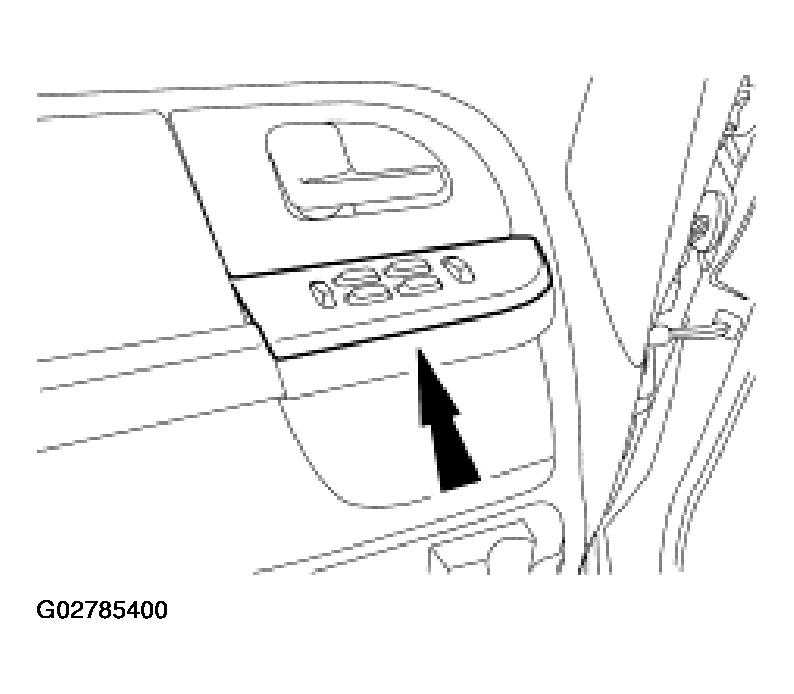

Fig 3: Removing Window Control Switch Panel

Courtesy of FORD MOTOR CO.

Remove the window control switch panel.
Disconnect the electrical connector(s) and remove the window control switch.
- Release the locking tabs.

Navigator passenger rear

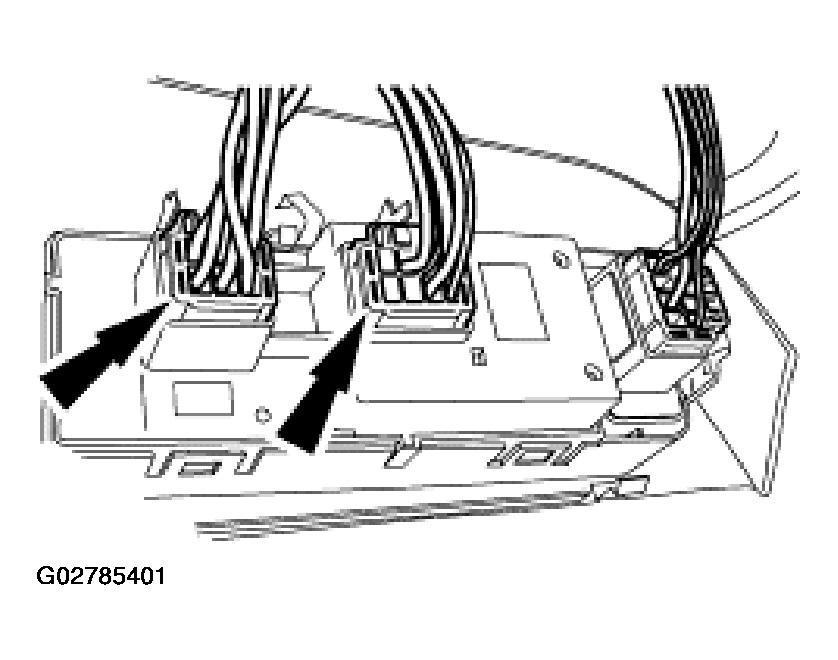

Fig 4: Disconnecting Electrical Connector(s) And Removing Window Control Switch

Courtesy of FORD MOTOR CO.

Remove the rear door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
Remove the window control switch from the door trim panel.

All vehicles
