Windshield Reseal

MATERIAL SPECIFICATION - WINDSHIELD RESEAL

Item Specification
Urethane Adhesive Essex 400-HV WSB-M2G316-B
  1. Remove the cowl grille. For additional information, refer to FRONT END BODY PANELS .
  2. Remove the A-pillar trim panels.
    • Remove the bolt covers and bolts.

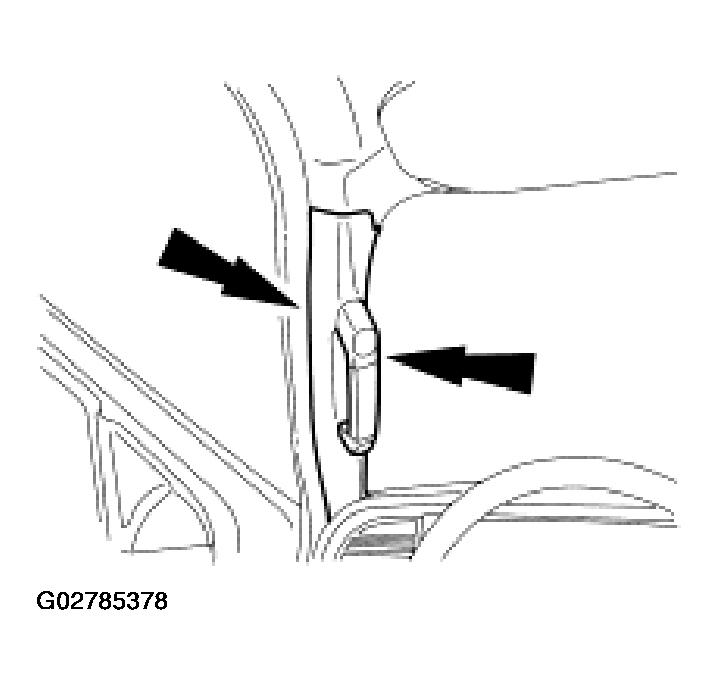

    Fig 1: Removing A-Pillar Trim Panels
    G02785378Courtesy of FORD MOTOR CO.
  3. If equipped, remove the overhead console.
  4. If equipped, remove the roof opening panel trim.
  5. Remove the interior rear view mirror. For additional information, refer to REAR VIEW MIRRORS .
  6. Remove the sun visors.
    1. Remove the four screws.
    2. Remove the two sun visor and visor arm clips.
      • If equipped, disconnect the electrical connectors.
    Fig 2: Removing Sun Visors
    G02785379Courtesy of FORD MOTOR CO.
  7. Partially lower the front portion of the headliner near the windshield upper opening and block with a suitable material.
  8. Clean the edge formed by the existing urethane and the glass on the inside at the top and sides, and outside on the bottom of the windshield with an alcohol free cleaner.
  9. Cut the urethane applicator tip to specification.

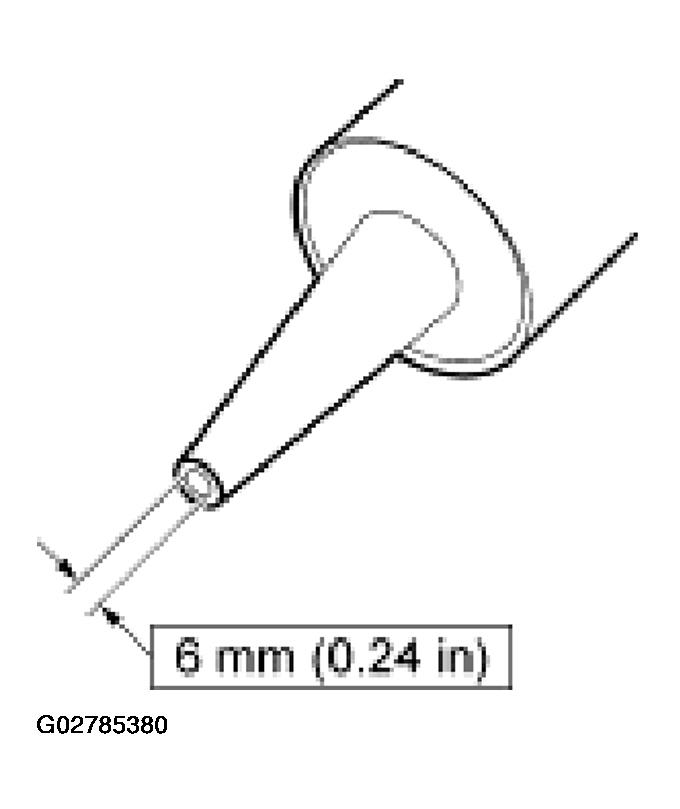

    Fig 3: Identifying Dimensions Of Urethane Applicator Tip
    G02785380Courtesy of FORD MOTOR CO.
    10. NOTE: Use either a high-ratio electric or battery-operated caulk gun that will apply the urethane with less effort and a continuous bead.
  10. Apply a bead of Urethane Adhesive Essex 400-HV to the cleaned area.
    11. NOTE: Make sure that all gaps in the urethane adhesive are smoothed into one continuous bead.
  11. Backfill the urethane application and clean the excess.
    12. CAUTION: The urethane adhesive must cure for a minimum of one hour before testing for air or water leaks.
  12. After the urethane has cured, check the windshield seal for air or water leaks through the urethane adhesive bead and add urethane adhesive as necessary.
  13. Install the headliner.
  14. Install the sun visors.
    1. Position the sun visors.
    2. Install the four screws.
      • If equipped, connect the electrical connectors.

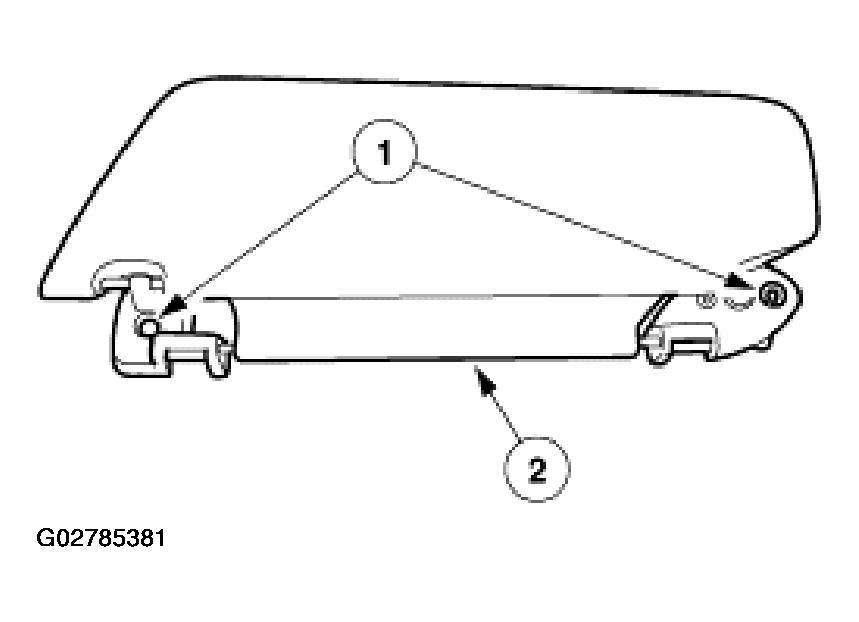

    Fig 4: Installing Sun Visors
    G02785381Courtesy of FORD MOTOR CO.
  15. Install the interior rear view mirror. For additional information, refer to REAR VIEW MIRRORS .
  16. If equipped, install the roof opening panel trim.
  17. If equipped, install the overhead console.
  18. Install the A-pillar trim panels.
    • Install the bolts and covers.
  19. Install the cowl grille. For additional information, refer to FRONT END BODY PANELS .
  20. Clean the interior and exterior of the windshield glass with an alcohol free cleaner.
