Removal and Installation

ALL VEHICLES

Remove the driver side air bag module. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .

EXPEDITION

Remove the speed control switch.
1. Disconnect the electrical connector.
2. Remove the screws.
Fig 1: Removing Speed Control Switch
Courtesy of FORD MOTOR CO.

NAVIGATOR

Remove the horn switch.
1. Disconnect the electrical connector.
2. Remove the bolts.
Fig 2: Removing Horn Switch
Courtesy of FORD MOTOR CO.
Remove the speed control switch.
1. Disconnect the wiring harness locators.
2. Remove the screws.

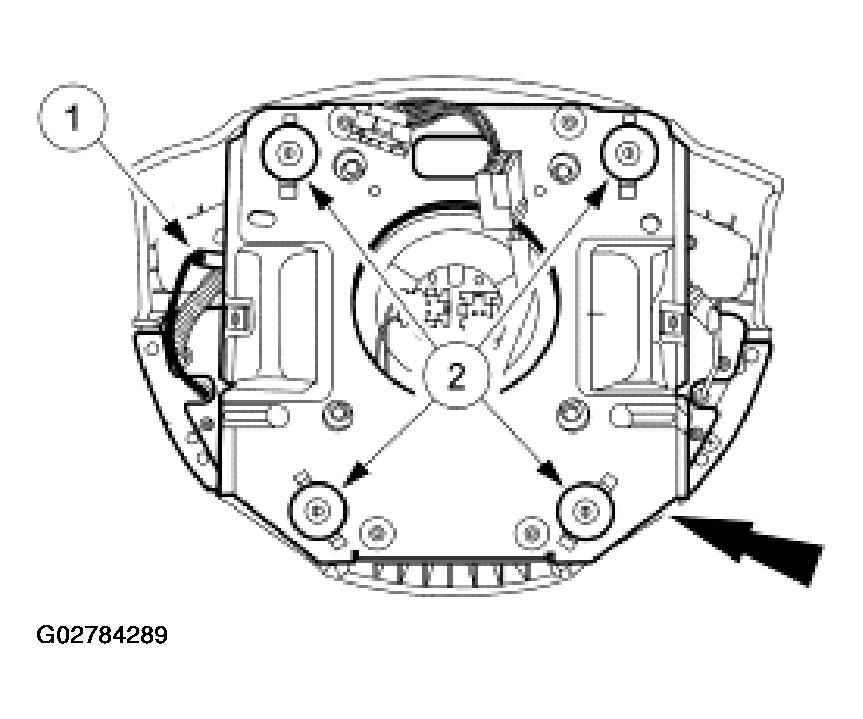

Fig 3: Removing Speed Control Switch
Courtesy of FORD MOTOR CO.

ALL VEHICLES

To install, reverse the removal procedure.
