Home
>>
Lincoln
>>
2004
>>
Navigator 4WD
>>
Repair and Diagnosis (Single Page)
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
Disassembly And Assembly Of Subassemblies
>>
Intermediate/Overdrive Cylinder Assembly
>>
Intermediate/Overdrive Cylinder Assembly, Disassembled View
Intermediate/Overdrive Cylinder Assembly, Disassembled View

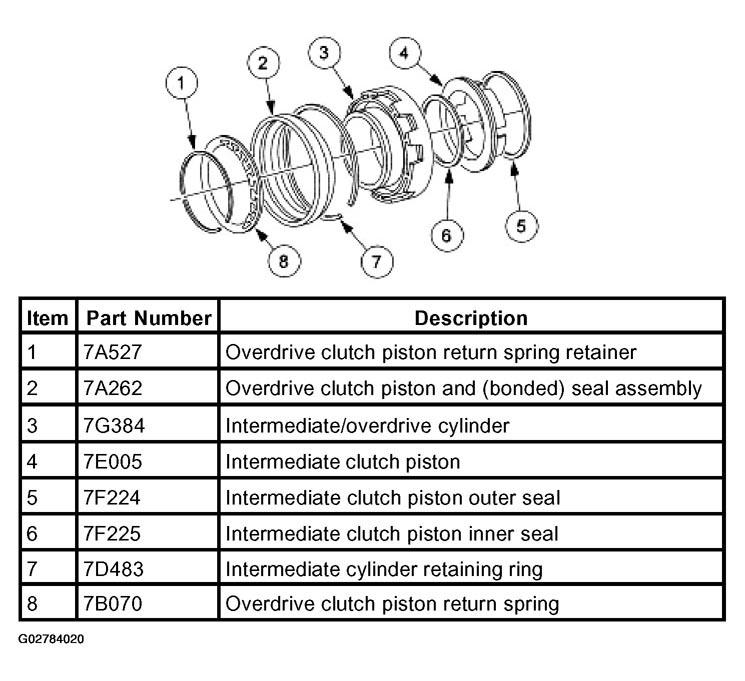

Fig 1: Exploded View Of Intermediate/Overdrive Cylinder Assembly
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
