Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure

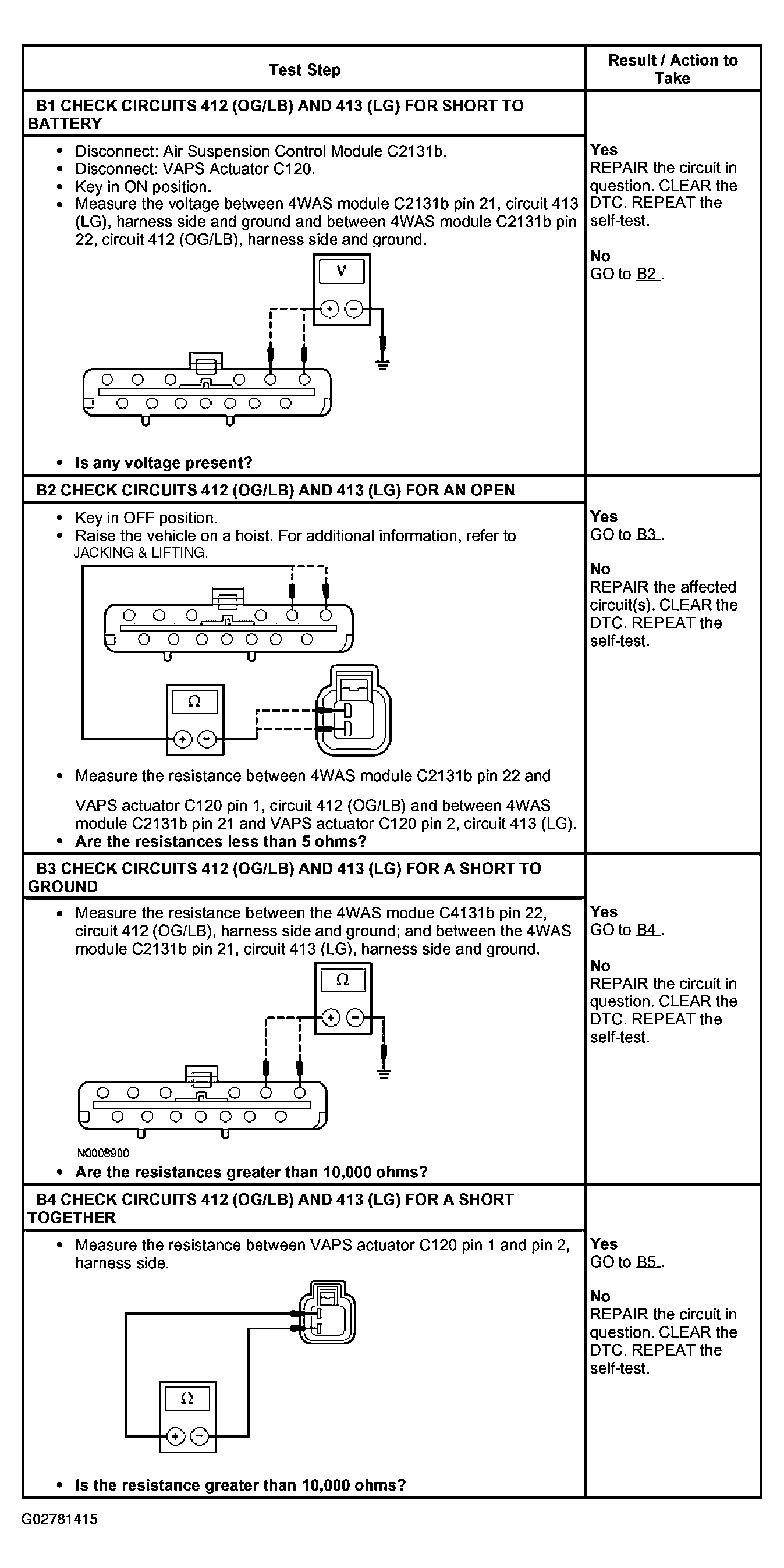

Fig 1: Pinpoint Test B: Steering VAPS Circuit Loop Failure (B1-B4)

Courtesy of FORD MOTOR CO.

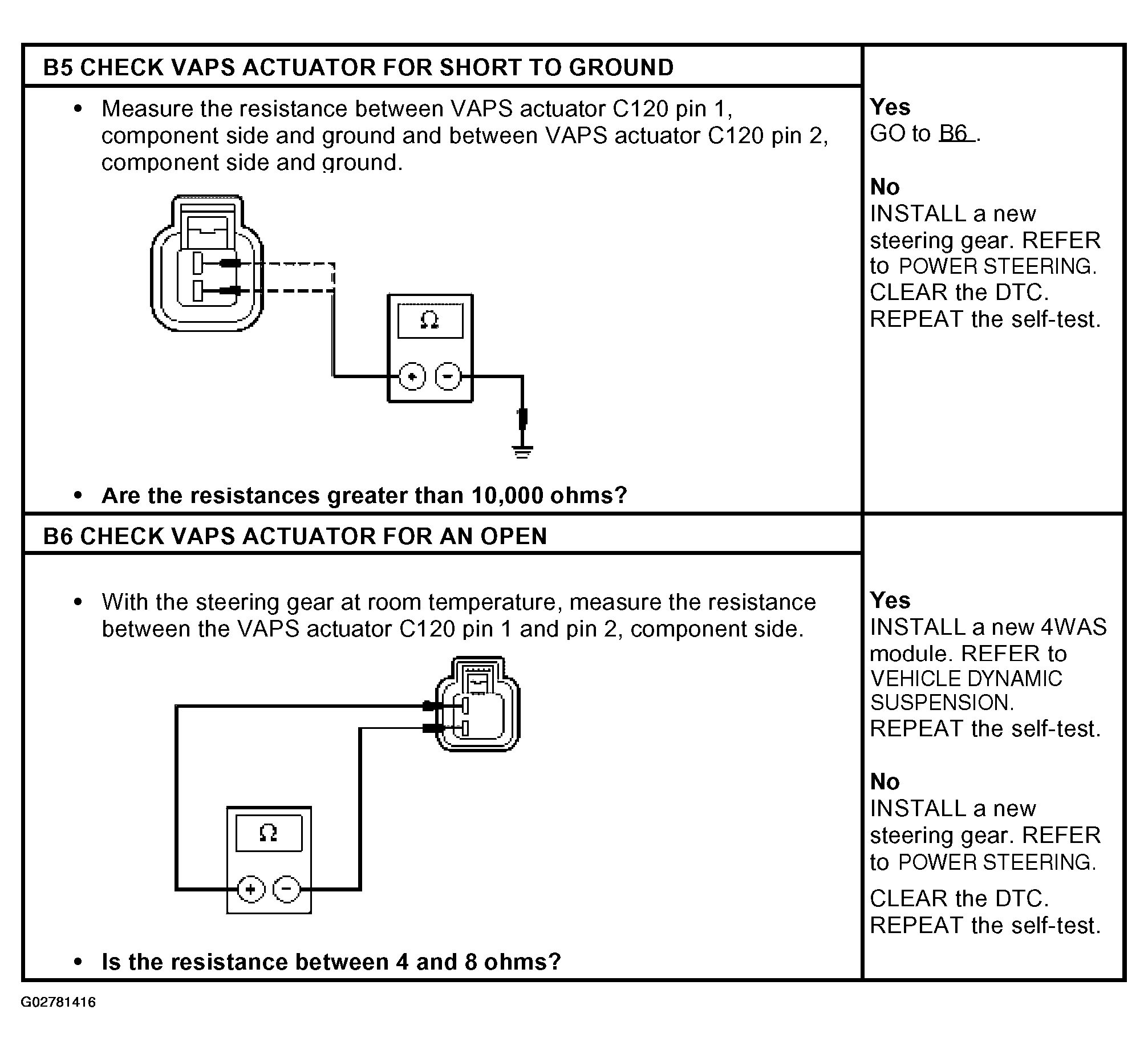

Fig 2: Pinpoint Test B: Steering VAPS Circuit Loop Failure (B5 And B6)

Courtesy of FORD MOTOR CO.
