Pinpoint Test A: No Communication With The Vehicle Security Module

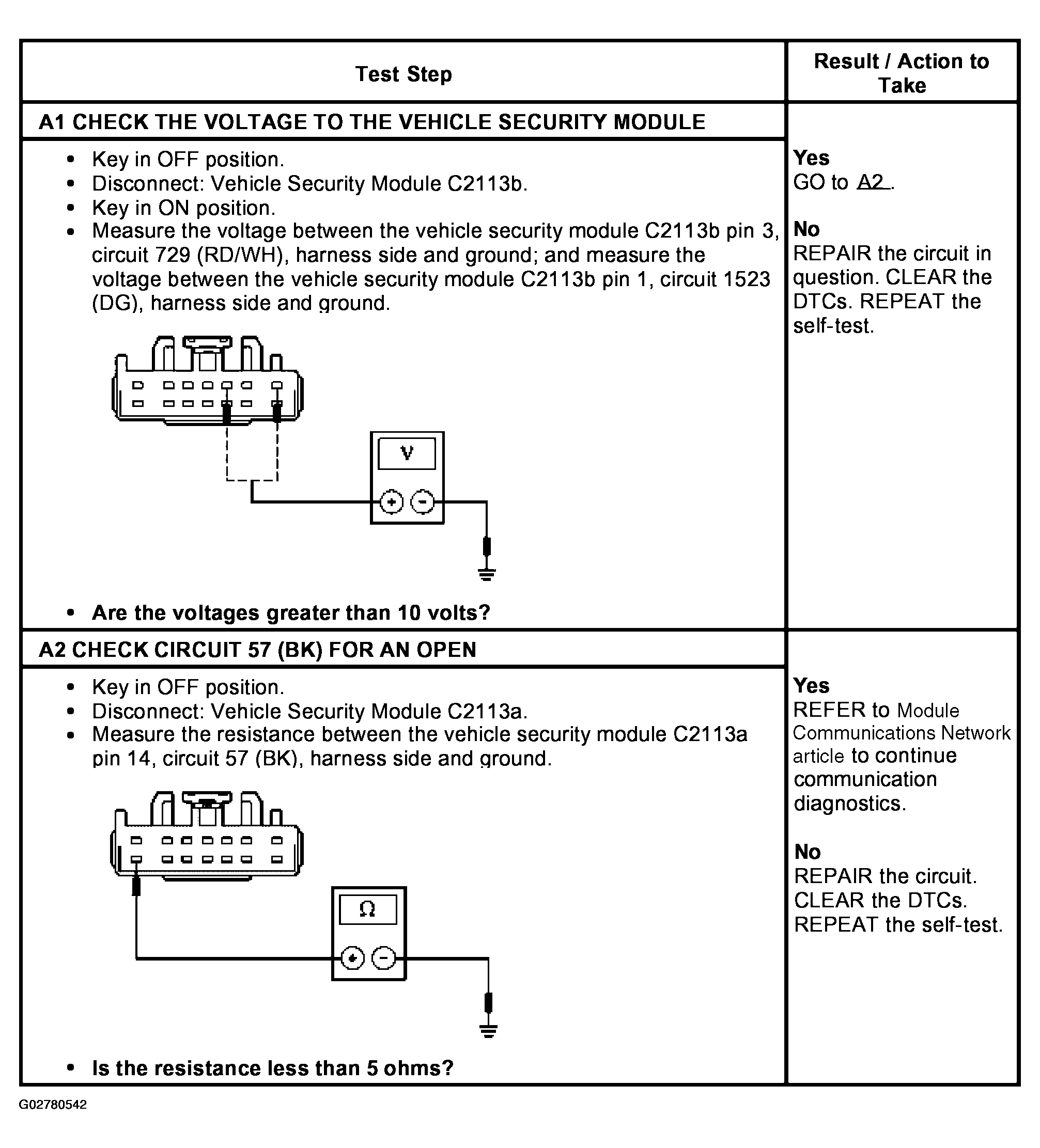

Fig 1: Pinpoint Test A No Communication With Vehicle Security Module (Steps A1-A2)

G02780542

Courtesy of FORD MOTOR CO.
