Identifying Connector C420d

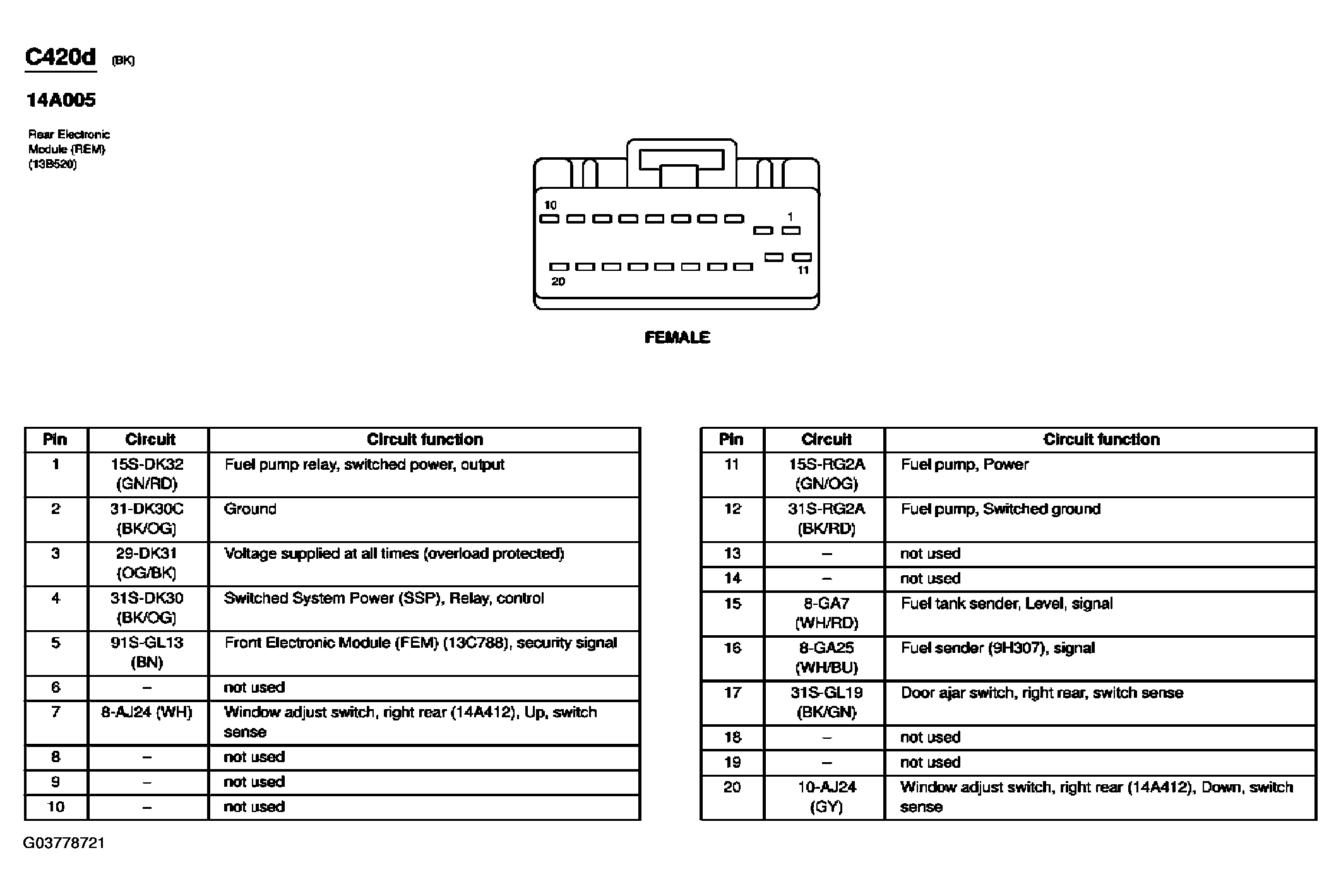

Fig 1: Rear Electronic Module (REM) Connector End View (C420d)

G03778721

Courtesy of FORD MOTOR CO.
